Android Panel PCs

// LOADING...

Browse Our Android HMIs

Display

Performance

I/O

Expansion

Storage

Power

Environmental Conditions

Mechanical Properties

Displaying of 37 items

View All

W10MG3S-GSH2 10.1″ Full IP65 Rugged Panel PC with Arm-Based MediaTek Genio 510 and MIL-STD-810H

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Widescreen
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Ethernet: 1x GbE LAN [M12]
USB: 1x USB 2.0 [M12]
Serial: 1x RS232 [M12]
Storage: 1x Micro SD, 32GB eMMC
Power: 12V DC [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

W10MG3S-GSH210.1″ Full IP65 Rugged Panel PC with Arm-Based MediaTek Genio 510 and MIL-STD-810H

Datasheet

W10MG3A-67H2-P(HB) 10.1″ Full IP67 Panel PC with 6-Core MediaTek Genio 510 and MIL-STD-810G

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Widescreen
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Ethernet: 1x GbE LAN [RJ45]
USB: 2x USB 2.0 [M12]
Serial: 1x RS232 [M12]
Power: 9-36V DC Input [M12]
Temp: -10°C to 55°C [14°F to 131°F]
IP Rating: IP67
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

W10MG3A-67H2-P(HB)10.1″ Full IP67 Panel PC with 6-Core MediaTek Genio 510 and MIL-STD-810G

Datasheet

VP101-M8M NXP i.MX 8M Quad 10.1″ In-Vehicle Panel PC with 1200-Nit Display and Front IP65

VP101-M8M-Q-1200NXP i.MX 8M Quad 10.1″ In-Vehicle Panel PC with 1200-Nit Display and Front IP65

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Format: Widescreen
OS: Android 9.0, Linux, Linux Yocto 2.5
Ethernet: 1x GbE LAN [RJ45]
USB: 2x USB 3.1 Gen 1 [Type A]
Serial: 1x RS232/422/485 [DB9], 3x RS232 [DB9]
CANbus: 1x CANbus, DB9
M.2: 1x M.2 B-Key [USB 3.1 Gen 1/SIM] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
Storage: 16GB eMMC, 1x Micro SD
Power: 9-36V DC Input [Terminal Block]
Ignition Sensing: Supports Ignition Control
Temp: -20°C to 70°C [-4°F to 158°F]
IP Rating: Front IP65
Certification: CE, E-Mark, FCC, RoHS, UKCA
Mounting Options: VESA Mount

Brightness: 1200
CPU: NXP i.MX 8M Quad
Memory: 4GB Soldered On-board

Brightness: 1200
CPU: NXP i.MX 8M Dual
Memory: 2GB Soldered On-board

Brightness: 500
CPU: NXP i.MX 8M Quad
Memory: 4GB Soldered On-board

Brightness: 500
CPU: NXP i.MX 8M Dual
Memory: 2GB Soldered On-board

DFI

VP101-M8MNXP i.MX 8M 10.1" In-Vehicle Panel PCs with 500 or 1200-Nit Touchscreens and Front IP65

Available in 4 variations

Datasheet

Select VP101-M8M Variant

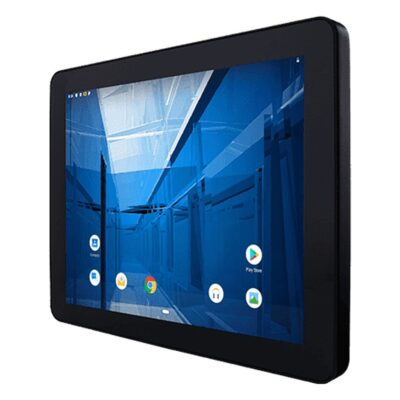

R10MG3S-GCT2 10.4″ G-WIN Front IP65 Panel PC with MediaTek Genio 510 and MIL-STD-810H

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Display Outputs: 1x Optional Micro HDMI
Ethernet: 1x GbE LAN [RJ45]
USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x Micro SD
Power: 12V DC [Terminal Block]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R10MG3S-GCT210.4″ G-WIN Front IP65 Panel PC with MediaTek Genio 510 and MIL-STD-810H

Datasheet

R12MG3S-PCM2-POE 12.1″ PCAP Touch Panel PC with MediaTek Genio 510 and MIL-STD-810H

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x Micro SD
Power: 12V DC [Terminal Block], PoE Powered Device (PD) [RJ45]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R12MG3S-PCM2-POE12.1″ PCAP Touch Panel PC with MediaTek Genio 510 and MIL-STD-810H

Datasheet

R12MG3S-GSM2(HB) 12.1″ Full IP65 Rugged Panel PC with Arm-Based MediaTek Genio 510 and MIL-STD-810H

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 500
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Ethernet: 1x GbE LAN [M12]
USB: 1x USB 2.0 [M12]
Serial: 1x RS232 [M12]
Storage: 1x Micro SD, 32GB eMMC
Power: 12V DC [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R12MG3S-GSM2(HB)12.1″ Full IP65 Rugged Panel PC with Arm-Based MediaTek Genio 510 and MIL-STD-810H

Datasheet

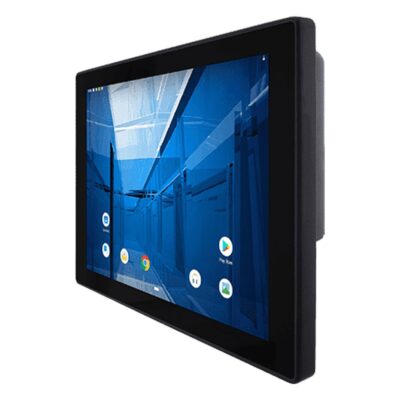

R12MG3S-GCM2 12.1″ G-WIN Front IP65 Panel PC with 6-Core MediaTek Genio 510 and MIL-STD-810H

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 500
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Display Outputs: 1x Optional Micro HDMI
Ethernet: 1x GbE LAN [RJ45]
USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x Micro SD
Power: 12V DC [Terminal Block]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R12MG3S-GCM212.1″ G-WIN Front IP65 Panel PC with 6-Core MediaTek Genio 510 and MIL-STD-810H

Datasheet

W12MG3S-GSB1 12.3″ Full IP65 Rugged Panel PC with 6-Core MediaTek Genio 510 and MIL-STD-810H

Display: 12.3"[, 1920 x 720, FHD]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Stretched
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Ethernet: 1x GbE LAN [M12]
USB: 1x USB 2.0 [M12], 1x USB OTG [Type C]
Serial: 1x RS232/422/485 [M12]
Storage: 1x Micro SD
Power: 10-60V DC Input
Ignition Sensing: Supports Ignition Control
Temp: -20°C to 60°C [-4°F to 140°F]
IP Rating: IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

W12MG3S-GSB112.3″ Full IP65 Rugged Panel PC with 6-Core MediaTek Genio 510 and MIL-STD-810H

Datasheet

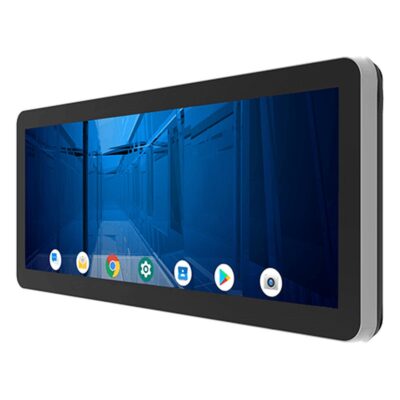

W12MG3S-GCB1 12.3″ G-WIN Front IP65 Panel PC with MediaTek Genio 510 and MIL-STD-810H

Display: 12.3"[, 1920 x 720, FHD]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Stretched
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Display Outputs: 1x Optional Micro HDMI
Ethernet: 1x GbE LAN [RJ45]
USB: 1x USB OTG [Micro USB], 2x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x Micro SD
Power: 12V DC [Terminal Block]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

W12MG3S-GCB112.3″ G-WIN Front IP65 Panel PC with MediaTek Genio 510 and MIL-STD-810H

Datasheet

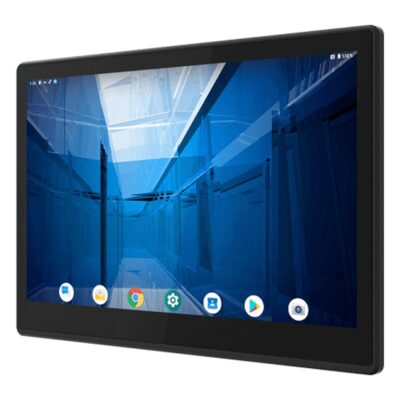

W14MG3S-EHA1 14″ PCAP Touch HMI with Arm-Based MediaTek Genio 510 and MIL-STD-810H

Display: 14"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 700
Viewing Angle: Wide Viewing Angle
Format: Widescreen
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Ethernet: 1x GbE LAN [RJ45]
USB: 1x USB OTG [Type C], 2x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x Micro SD
Power: 12V DC [Terminal Block]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W14MG3S-EHA114″ PCAP Touch HMI with Arm-Based MediaTek Genio 510 and MIL-STD-810H

Datasheet

R15MG3S-EHC3 15″ PCAP Touch HMI with Arm-Based MediaTek Genio 510 and MIL-STD-810H

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Ethernet: 1x GbE LAN [RJ45]
USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x Micro SD
Power: 12V DC [Terminal Block]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R15MG3S-EHC315″ PCAP Touch HMI with Arm-Based MediaTek Genio 510 and MIL-STD-810H

Datasheet

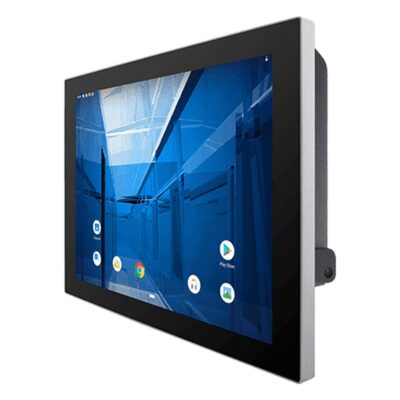

R15MG3S-GCC3 15″ G-WIN Front IP65 Panel PC with MediaTek Genio 510 and MIL-STD-810H

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 300
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Display Outputs: 1x Optional Micro HDMI
Ethernet: 1x GbE LAN [RJ45]
USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x Micro SD
Power: 12V DC [Terminal Block]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R15MG3S-GCC315″ G-WIN Front IP65 Panel PC with MediaTek Genio 510 and MIL-STD-810H

Datasheet

R15MG3S-67C3-P(HB) 15″ Full IP67 Panel PC with 6-Core MediaTek Genio 510 and MIL-STD-810G

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Ethernet: 1x GbE LAN [RJ45]
USB: 2x USB 2.0 [M12]
Serial: 1x RS232 [M12]
Storage: 1x Micro SD
Power: 9-36V DC Input [M12]
Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
IP Rating: IP67
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R15MG3S-67C3-P(HB)15″ Full IP67 Panel PC with 6-Core MediaTek Genio 510 and MIL-STD-810G

Datasheet

R15MG3S-PCC3-POE 15″ PCAP Touch Panel PC with Arm-Based MediaTek Genio 510 and MIL-STD-810H

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x Micro SD
Power: 12V DC [Terminal Block], PoE Powered Device (PD) [RJ45]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R15MG3S-PCC3-POE15″ PCAP Touch Panel PC with Arm-Based MediaTek Genio 510 and MIL-STD-810H

Datasheet

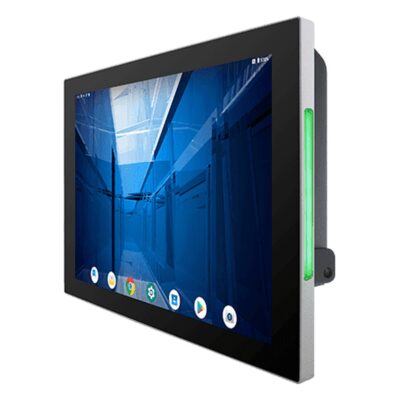

R15MG3S-PCC3AC-POE 15″ PCAP Touch Panel PC with MediaTek Genio 510 and MIL-STD-810H

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x Micro SD
Power: 12V DC [Terminal Block], PoE Powered Device (PD) [RJ45]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R15MG3S-PCC3AC-POE15″ PCAP Touch Panel PC with MediaTek Genio 510 and MIL-STD-810H

Datasheet

Displaying of 37 items

View All
