Displaying of 248 items

View All

R15IAD3S-SPC369 15″ Stainless Steel IP69K Panel PC with Intel Core i5-1235U and M12 Connectors

CPU: Intel Core 12th Gen Alder Lake
Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Standard
OS: Linux Ubuntu 22.04, Windows 11
Ethernet: 1x GbE LAN [RJ45]
USB: 2x USB 2.0 [M12]
Serial: 1x RS232 [M12]
Storage: 1x 2.5" HDD/SSD
Power: 12V DC [M12]
Temp: 0°C to 45°C [32°F to 113°F]
IP Rating: IP69K
Certification: CE, FCC

Winmate

R15IAD3S-SPC36915″ Stainless Steel IP69K Panel PC with Intel Core i5-1235U and M12 Connectors

Datasheet

W24IAD7T-PMA2 23.8″ Panel Mount PC with Intel Alder Lake-S/Raptor Lake Core and Resistive Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 23.8"[16:9, 1920 x 1080, FHD]
Touch: Optional Resistive Touch
Brightness: 250
Viewing Angle: Wide Viewing Angle
Format: Widescreen
CPU: Intel Core 14th Gen Raptor Lake Refresh
Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Display Port
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 4x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
RAID: RAID 0, RAID 1
Power: 12V DC [4-Pin], AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

W24IAD7T-PMA223.8″ Panel Mount PC with Intel Alder Lake-S/Raptor Lake Core and Resistive Touch

Datasheet

R17IAD7T-IPM1 17″ Front IP65 Panel PC with 12th/14th Gen Intel Core and Resistive Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Optional Resistive Touch
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Core 14th Gen Raptor Lake Refresh
Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Display Port
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 4x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
Power: 12V DC [4-Pin], AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R17IAD7T-IPM117″ Front IP65 Panel PC with 12th/14th Gen Intel Core and Resistive Touch

Datasheet

R19IAD3S-MLA3FP 19″ Defense Panel PC with Intel Core i5-1235U, MIL-STD-810H and MIL-STD-461

CPU: Intel Core 12th Gen Alder Lake
Display: 19"[5:4, 1280 x 1024, SXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
OS: Linux Ubuntu 22.04, Windows 11
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 100-240V AC, 9-36V DC Input [MIL-STD]
Temp: -20°C to 60°C [-4°F to 140°F]
Certification: CE, FCC, MIL-STD-461, MIL-STD-810

Winmate

R19IAD3S-MLA3FP19″ Defense Panel PC with Intel Core i5-1235U, MIL-STD-810H and MIL-STD-461

Datasheet

W24IAD7T-IPA2 23.8″ Front IP65 Panel PC with 12th/14th Gen Intel Core and Resistive Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 23.8"[16:9, 1920 x 1080, FHD]
Touch: Optional Resistive Touch
Brightness: 250
Viewing Angle: Wide Viewing Angle
Format: Widescreen
CPU: Intel Core 14th Gen Raptor Lake Refresh
Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Display Port
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 4x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
RAID: RAID 0, RAID 1
Power: 12V DC [4-Pin], AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W24IAD7T-IPA223.8″ Front IP65 Panel PC with 12th/14th Gen Intel Core and Resistive Touch

Datasheet

W22IAD3S-67B2-P(HB) 21.5″ Full IP67 Panel PC with 12th Gen Intel Core i5 and MIL-STD-810G

CPU: Intel Core 12th Gen Alder Lake
Display: 21.5"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Widescreen
OS: Linux Ubuntu 22.04, Windows 11
Ethernet: 1x GbE LAN [RJ45]
USB: 2x USB 2.0 [M12]
Serial: 1x RS232 [M12]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 9-36V DC Input [M12]
Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
IP Rating: IP67
Certification: CE, FCC

Winmate

W22IAD3S-67B2-P(HB)21.5″ Full IP67 Panel PC with 12th Gen Intel Core i5 and MIL-STD-810G

Datasheet

R12IAD3S-OFM2 12.1″ Open Frame Panel PC with Intel Core i5-1235U and Resistive Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Optional Resistive Touch
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Standard
Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
OS: Linux Ubuntu 22.04, Windows 11
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 12V DC [Barrel Connector], AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

R12IAD3S-OFM212.1″ Open Frame Panel PC with Intel Core i5-1235U and Resistive Touch

Datasheet

W22IAD7T-CHA3 21.5″ Chassis Panel PC with 12th/14th Gen Intel Core and Resistive Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 21.5"[16:9, 1920 x 1080, FHD]
Touch: Optional Resistive Touch
Brightness: 250
Viewing Angle: Wide Viewing Angle
Format: Widescreen
CPU: Intel Core 14th Gen Raptor Lake Refresh
Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Display Port
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 4x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
RAID: RAID 0, RAID 1
Power: 12V DC [4-Pin], AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

W22IAD7T-CHA321.5″ Chassis Panel PC with 12th/14th Gen Intel Core and Resistive Touch

Datasheet

R10IAD3S-VMT2(HB) 10.4″ Vehicle Mount Panel PC with Intel Alder Lake Core i5-1235U and MIL-STD-810G

CPU: Intel Core 12th Gen Alder Lake
Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Optional Resistive Touch
Brightness: 1000, 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Optional HDMI
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD
Power: 9-36V DC Input [Terminal Block]
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 55°C [14°F to 131°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R10IAD3S-VMT2(HB)10.4″ Vehicle Mount Panel PC with Intel Alder Lake Core i5-1235U and MIL-STD-810G

Datasheet

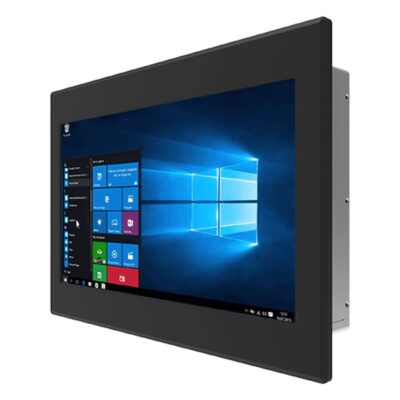

W15IAD3S-PMA2 15.6″ Panel Mount PC with Intel Alder Lake Core i5-1235U and Resistive Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 15.6"[8:5, 1366 x 768, WXGA]
Touch: Optional Resistive Touch
Brightness: 400
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
OS: Linux Ubuntu 22.04, Windows 11
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 12V DC [Barrel Connector], AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

W15IAD3S-PMA215.6″ Panel Mount PC with Intel Alder Lake Core i5-1235U and Resistive Touch

Datasheet

W22IAD7T-GCA3 21.5″ G-WIN Front IP65 Panel PC with Intel Core i3 to i9 LGA1700 and MIL-STD-810G

CPU: Intel Core 12th Gen Alder Lake
Display: 21.5"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 250
Viewing Angle: Wide Viewing Angle
Format: Widescreen
CPU: Intel Core 14th Gen Raptor Lake Refresh
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Display Port, 1x Optional HDMI
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 4x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W22IAD7T-GCA321.5″ G-WIN Front IP65 Panel PC with Intel Core i3 to i9 LGA1700 and MIL-STD-810G

Datasheet

R15IAD7T-CHC3 15″ Chassis Panel PC with 12th/14th Gen Intel Core and Resistive Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 15"[4:3, 1024 x 768, XGA]
Touch: Optional Resistive Touch
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Core 14th Gen Raptor Lake Refresh
Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Display Port
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 4x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
Power: 12V DC [4-Pin], AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

R15IAD7T-CHC315″ Chassis Panel PC with 12th/14th Gen Intel Core and Resistive Touch

Datasheet

R15IAD3S-PMC3 15″ Panel Mount PC with Intel Alder Lake Core i5-1235U and Resistive Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 15"[4:3, 1024 x 768, XGA]
Touch: Optional Resistive Touch
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Standard
Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
OS: Linux Ubuntu 22.04, Windows 11
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 12V DC [Barrel Connector], AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

R15IAD3S-PMC315″ Panel Mount PC with Intel Alder Lake Core i5-1235U and Resistive Touch

Datasheet

IMB-1242 Intel Bartlett Lake-S and 12th to 14th Gen Core H610 Mini-ITX SBC with Triple Display, VGA and 2.5GbE

CPU: Intel Core 12th Gen Alder Lake, Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 13th Gen Raptor Lake
Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
OS: Linux, Windows 11
Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 2x USB 3.2 Gen 2 [Type A]
Serial: 2x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen3/SATA] [2260/2280]
PCIe: 1x PCIe [x16 Slot] [x16 Signal] [Gen4]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: 12V DC [4-Pin], ATX Power Supply [4+24 Pin]
Temp: -20°C to 70°C [-4°F to 158°F]
Certification: CE, FCC

ASRock Industrial

IMB-1242Intel Bartlett Lake-S and 12th to 14th Gen Core H610 Mini-ITX SBC with Triple Display, VGA and 2.5GbE

Datasheet

IMB-1238 Intel Core Series 2 and 14th/13th/12th Gen Q670 Mini-ITX Mainboard with vPro, PCIe Gen5 and 4x COM

CPU: Intel Core 12th Gen Alder Lake, Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 13th Gen Raptor Lake
Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
OS: Linux, Windows 11
Display Outputs: 1x Display Port, 1x eDP, 1x LVDS, 2x HDMI
Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 4x USB 3.2 Gen 2 [Type A]
Serial: 2x RS232 [Board], 2x RS232/422/485 [DB9]
M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen3/SATA] [2242], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280]
PCIe: 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5]
Storage: 2x M.2 SSD, 4x SATA Ports
RAID: RAID 0, RAID 1, RAID 5, RAID 10
Power: 12V DC [4-Pin], ATX Power Supply [4+24 Pin]
Temp: -20°C to 70°C [-4°F to 158°F]
Certification: CE, FCC

ASRock Industrial

IMB-1238Intel Core Series 2 and 14th/13th/12th Gen Q670 Mini-ITX Mainboard with vPro, PCIe Gen5 and 4x COM

Datasheet

Displaying of 248 items

View All

Beyond Alder Lake: Intel Processors

All IntelBack to the full range

Intel Elkhart LakeAtom x6000E, Celeron and Pentium for the edge Intel Raptor Lake13th and 14th Gen Core on LGA1700 Intel Processor NN97, N150 and i3-N305 at 6 to 15 W Intel Amston LakeAtom x7000E and x7000RE, 2 to 8 cores Intel Bartlett LakeCore Series 2 edge processors for LGA1700 Intel Core UltraCore Ultra with an on-chip NPU Intel Wildcat LakeCore Series 3 with Xe3 graphics and an NPU

// Intel Industrial Computing Specialists

Speak to an Intel Alder Lake Specialist.

Tell us where the system will be installed, the approvals it must meet and the interfaces you need to connect. We will recommend the right form factor, then configure, image and test it before it ships.

Phone · USA +1 407 214 9446

Email sales@things-embedded.com
