4K and 8K Video Capture Cards for High-Resolution Systems
A 4K capture card records 3840 x 2160 or 4096 x 2160 video from high-resolution cameras, medical displays and computers, and 8K models go further for the latest sources. Available over HDMI 2.0, HDMI 2.1, 12G-SDI, 6G-SDI and DisplayPort, as PCIe and M.2 cards and USB units.
Options include multi-input 4K cards, loop-through, HDR on selected USB models and Windows and Linux SDKs, suited to surgical imaging, 4K broadcast, simulation and high-resolution inspection systems.
Speak to a video capture specialist to match the signal, resolution and host interface to your system.
Browse Our 4K and 8K Frame Grabbers
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Host: M.2 [2280, M-Key]
- Simultaneous Video Inputs: 2
- Video Input: 2x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Host: M.2 [2280, M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Host: M.2 [3080, M-Key]
- Simultaneous Video Inputs: 4
- Video Input: 1x 12G-SDI, 1x 6G-SDI, 2x 3G-SDI
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Host: M.2 [2280, M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI
- Video Output: 1x 12G-SDI
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Host: M.2 [2280, M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Video Output: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

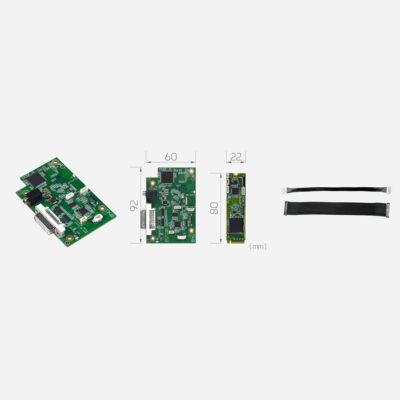

- Max Input Resolution: 4K30 [4096x2160p @ 30/25fps]
- Host: M.2 [2280, M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x DVI-DL
- Max Video Capture Resolution: 4K30 [4096x2160p @ 30/25fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Max Input Resolution: 8K60 [7680×4320p @ 60/50fps]
- Host: PCIe [x8, Gen3]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.1
- Video Output: 1x HDMI2.1
- Max Video Capture Resolution: 8K60 [7680×4320p @ 30/25fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Max Input Resolution: 8K60 [7680×4320p @ 60/50fps], 4K120 [4096×2160p @ 120/100fps]
- Host: USB3.0
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.1
- Video Output: 1x HDMI2.1
- Max Video Capture Resolution: 4K30 [3840×2160p @ 30/25fps]
- Color Formats: I420, NV12, P010, YUY2
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Host: USB3.0
- Simultaneous Video Inputs: 4
- Video Input: 1x 12G-SDI, 4x 3G-SDI
- Video Output: 4x 3G-SDI
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: I420, NV12, P010, YUY2
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Host: USB3.0
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Video Output: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: I420, NV12, P010, YUY2
- Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
- Host: USB3.0
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Input Resolution: HD240 [1920x1080p @ 240/200fps]
- Video Output: 1x HDMI2.0
- Max Video Capture Resolution: 4K30 [3840×2160p @ 30/25fps], 4K60 [3840×2160p @ 60/50fps]
- Color Formats: I420, MJPEG, NV12, P010, RGB24, YUY2
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Host: USB3.0
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: I420, NV12, P010, YUY2
- Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
- Host: USB3.0
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Video Capture Resolution: 4K30 [3840×2160p @ 30/25fps], 4K60 [3840×2160p @ 60/50fps]
- Color Formats: I420, MJPEG, NV12, P010, YUY2
- Max Input Resolution: 8K60 [7680×4320p @ 30/25fps]
- Host: PCIe [x8, Gen2]
- Simultaneous Video Inputs: 1
- Video Input: 1x DP1.4a
- Video Output: 1x DP1.4a
- Max Video Capture Resolution: 8K60 [7680×4320p @ 30/25fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Video Input: 1x 12G-SDI, 1x 6G-SDI, 2x 3G-SDI
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
4K and 8K Capture Card Ranges Configured by Things Embedded
We work with a leading manufacturer of 4K and 8K capture cards, so the ranges below are the ones we specify for high-resolution medical, broadcast and vision systems. Compare them by signal, resolution and host interface, then browse the models above or ask a video capture specialist which range suits your system.
SC400 and SC410 Yuan Capture Cards
HDMI, 3G-SDI, 6G-SDI and TVI capture on PCIe, M.2 and Mini PCIe, from single-input all-in-one cards to four-channel 4K30 models.
SC710, SC720 and SC750 Yuan 4K and 8K Capture Cards
HDMI 2.0, HDMI 2.1, 12G-SDI, DisplayPort 1.4a and SDVoE capture at 4K60 and up to 8K on PCIe and M.2.
PD570, PD575 and UB5 Yuan USB Capture Cards
External USB 3.0 capture for HDMI, SDI and TVI sources, from 1080p60 to HDMI 2.0 and 2.1 4K models, working as UVC devices.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a 4K Capture Card
Our video capture specialists specify every 4K capture card against the sources, the host system and the software that will use the video. These are the choices we work through with you before recommending a range.
Signal
HDMI 2.0 or 2.1 for computers and cameras, 12G-SDI for broadcast and medical, DisplayPort for workstations.
Resolution and Frame Rate
4K30, 4K60 or 8K: match the card to the source and the frame rate the software records.
Host Bandwidth
PCIe x4 or x8 for multi-input 4K; USB models deliver 4K30 over USB 3.0.
Explore Video Capture by Standard and Interface
Compare every video capture category by signal, SDI and HDMI standard or form factor, and jump straight to the cards that fit your sources and host system.
4K Capture Innovation & High-Resolution Video Insights
Speak to a 4K Video Specialist.
Tell us the resolution and frame rate your sources output, the host system and how the video will be recorded or processed. We will recommend the right card for the bandwidth, then configure and test it with your system before it ships.
