Cellular Gateways and Industrial Cellular Computers: 4G LTE and 5G Explained

A cellular gateway is a device that connects local equipment, such as sensors, PLCs, cameras and computers, to the internet or a private network over a 4G LTE or 5G mobile connection instead of a fixed line. It combines a cellular modem and a SIM with routing, firewall and often protocol conversion, so machines on a local Ethernet or serial network can reach a control room or cloud platform from anywhere with mobile coverage.

Industrial systems can no longer rely on fixed networks alone. From remote energy sites to mobile robot fleets, edge applications need connectivity that is reliable, resilient and fast, often in places where no cable runs. An industrial computer with a 4G, LTE or 5G modem fitted can do the gateway’s job and run the application as well, which is why cellular modules are now a standard option across our embedded box PCs and fanless PCs.

This guide explains what a cellular gateway does and how it differs from a modem and a router, compares LTE categories, LTE-M, NB-IoT and 5G, and covers when an industrial PC with a modem can replace a separate gateway. It then works through dual-SIM failover, carrier bands and certification, antennas, security and the practical steps to deploy a cellular-connected industrial computer.

The three terms are often used loosely, and products overlap, but they describe different jobs. A modem turns a cellular radio signal into data for one host. A router shares one connection among many devices. A gateway adds the industrial layer: it speaks the protocols of the equipment behind it and decides what data to send.

In practice the gateway is defined by what sits behind it. An IIoT gateway collects data from meters, PLCs and sensors, and a Modbus gateway translates a serial fieldbus to Ethernet. Add a modem and either becomes a cellular gateway.

Deployment freedom

Cellular connectivity lets systems be installed anywhere with coverage, from offshore platforms to moving vehicles, without waiting for fixed broadband. It removes trenching and cable runs from remote or temporary installations, and shortens the time to deploy.

Resilient operation

Dual SIM slots and support for several operators mean that if one network fails, another can take over. For transport safety, remote asset monitoring and emergency response, continuous connectivity is the point of the system.

Secure data transmission

Industrial computers can carry a TPM 2.0, Secure Boot and VPN clients, so data crossing public cellular networks stays protected and the device itself is harder to tamper with.

Modular upgrades

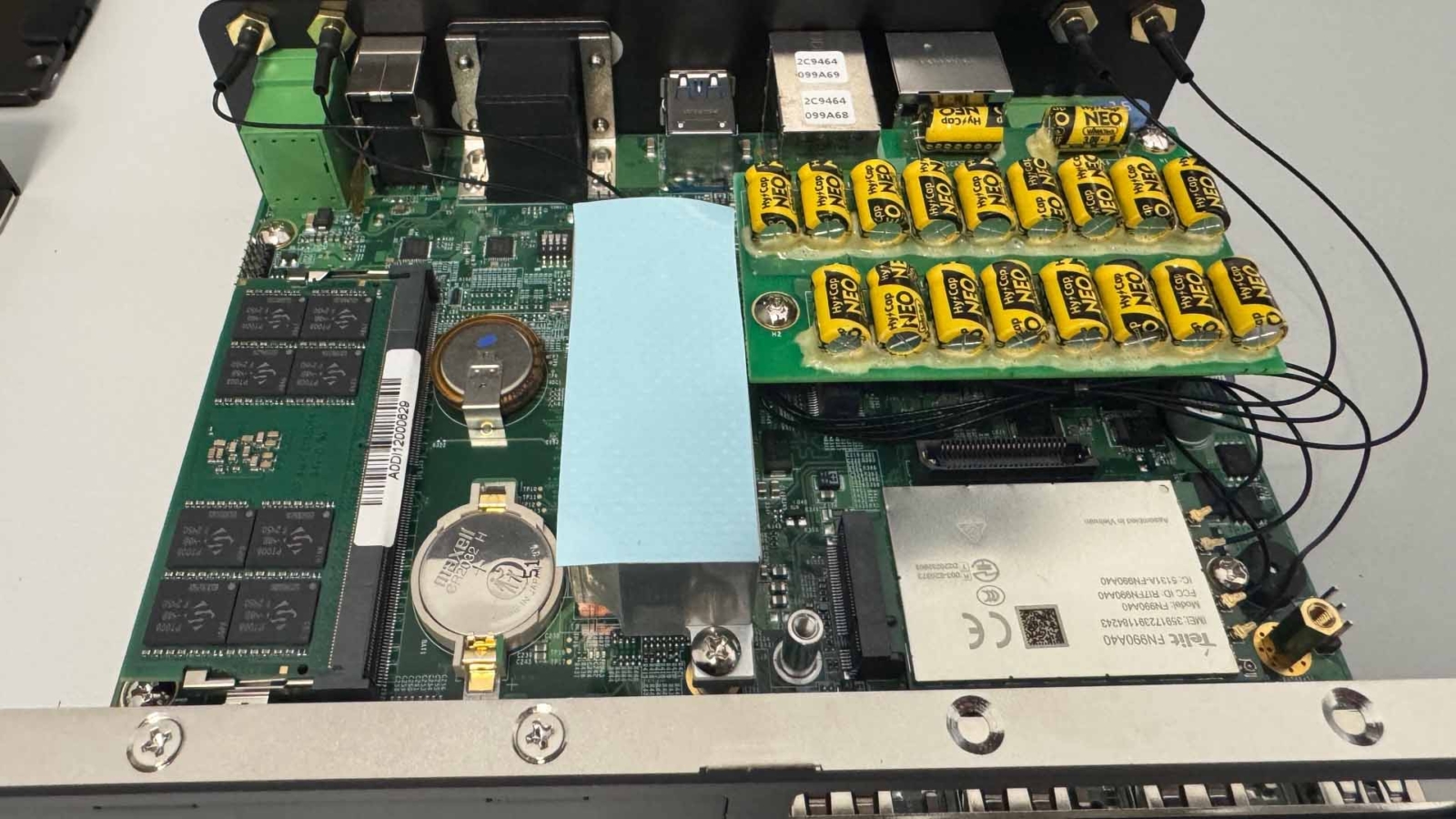

Most current industrial computers take the modem as an M.2 module, so a system can move from LTE to 5G by changing the module and antennas rather than the computer, provided the socket, power budget and antenna count suit the new module.

Cellular modules are sold by category, and the category sets speed, power and cost. Industrial devices rarely need the fastest category; they need the one that matches their data and will stay supported on the networks they use. Figures are typical peak rates from the 3GPP categories; real throughput depends on signal, load and the operator.

NB-IoT and LTE-M are the low-power wide-area options inside the LTE family. LTE-M supports handover and voice, which suits moving assets; NB-IoT trades mobility for very low power and deep indoor coverage. Neither suits video or remote desktop sessions.

The 2G and 3G switch-off

Older gateways on 2G and 3G modules are being stranded. In the USA, the main operators completed their 3G switch-offs in 2024 and 2025, and the government has said 2G will close by 2033 at the latest. In the US, AT&T, T-Mobile and Verizon closed their 3G networks during 2022. Any gateway still on a 3G module should be replaced with LTE or 5G, and new designs should avoid 2G fallback as a dependency.

4G LTE remains the most widely deployed cellular standard, with mature coverage and long-term operator support. With data rates in the hundreds of Mbit/s on higher categories, it suits pipeline monitoring and remote asset management, digital signage and retail kiosks, smart city infrastructure and secondary connectivity that backs up wired broadband. Its wide device choice keeps module cost down, and its global roaming agreements make it a dependable baseline for deployments across several countries.

• Global coverage and proven reliability
• Well-established operator infrastructure for long-term support
• Lower module cost and power than 5G
• Wide compatibility with existing devices, antennas and management tools

5G adds capacity rather than replacing everything LTE does. With gigabit-class throughput and latency of around 10 ms on standalone networks, it opens applications that strain LTE: autonomous mobile robots and connected vehicles, high-resolution video analytics on several cameras, AI inference results streamed from the edge, and control systems that rely on ultra-reliable low-latency communication. On private networks, 5G also brings network slicing and local data breakout; our guide to private 5G covers spectrum, standalone 5G and RedCap in detail.

• Low latency for remote control and teleoperation
• High uplink for multi-camera video
• High device density on busy sites
• Network slicing and private network support on standalone 5G

A dedicated cellular gateway is a good fit when the job is only to move data: read a few meters, forward a VPN, alert on a fault. An industrial computer with a cellular module fitted makes sense when the site also needs local processing, storage or a display. The two often end up in the same cabinet, so one computer doing both jobs saves space, power and a point of failure.

The deciding question is how much happens on site. Sending raw data over cellular is expensive and slow when there is a lot of it; filtering, compressing or analyzing it first is what an edge computer is for. MQTT and OPC UA are the usual protocols on the cellular side, and our comparison of OPC UA vs MQTT explains which suits which job. An RTU in a utility outstation is a classic example of a device that has become a cellular-connected computer.

Different operators have different coverage, and any one network can drop. Industrial cellular computers handle that in three ways, which differ in cost and complexity.

With dual SIM, a single modem registers on one network at a time, so failover takes from a few seconds to a minute while the module re-attaches. Two modems avoid that gap. Our explainers on the multi-SIM router, cellular bonding and bonding vs load balancing cover the trade-offs. For a maker of bonded 4G systems for superyachts, we supplied an embedded PC with four SIM slots that hosts four modems in one fanless chassis; how superyachts get internet explains where it sits in a vessel’s connectivity.

Check where the SIM slots sit. Front-accessible or externally accessible slots let a technician swap a SIM without opening a sealed enclosure, which matters on a vehicle or in a cabinet on a pole. Some modules support eSIM, so operator profiles can be changed remotely.

When choosing an industrial computer with 4G, LTE or 5G, the first check is that the module will work on the networks you plan to use. A system must carry a module approved for those networks, whether that is AT&T, T-Mobile or Verizon in the US, or the USA and European operators. Coverage in the specific places the system will be installed matters as much, and for vehicles it varies along the route.

Band lists vary by operator and change as spectrum is refarmed, so treat the table as a starting point and check the operator’s current list. In the US, PTCRB certification and individual carrier approval govern which modules may run on a network. In Europe, GCF certification plays a similar role. Using a pre-certified module usually means the complete computer needs less additional testing, but the approvals that apply depend on the module, antennas and the operator, so plan them early. A module that is approved for one region may not be approved for another, even in the same family.

The antenna is where many cellular installations lose most of their performance. LTE uses at least two antennas for MIMO and receive diversity; full 5G modules use four for 4×4 MIMO, and a GNSS antenna is separate. Each antenna port on the computer is usually an SMA connector.

Mount antennas outside a metal enclosure, keep cable runs short, and use the antenna’s rated bands as the guide. A 5G module fed by two antennas instead of four can work, but loses throughput and reliability at the cell edge. GNSS for location and time is often in the same housing on vehicles.

A cellular gateway sits on a public network, so it should never expose its management interfaces to the internet. The usual layers are below.

• Private APN or private network: traffic stays off the public internet between the device and the operator’s or your own core.
• VPN: IPsec, OpenVPN or WireGuard tunnels back to the control room, with no inbound ports open.
• Firewall: only the protocols and destinations the application needs.
• Hardware root of trust: TPM 2.0 and Secure Boot so the image cannot be swapped.
• Recovery: a watchdog timer and out-of-band management so a hung system can be restarted without a site visit.

Our IEC 62443-4-2 hardware security checklist covers device-level requirements in more depth. Avoiding a truck roll is often the business case for the gateway, so plan remote recovery from the start.

Sometimes. 5G fixed wireless access can deliver speeds comparable to fixed broadband where coverage is strong, and many sites now use 4G or 5G as their only connection. The limits are data allowances, variable speed at busy times, carrier-grade NAT that blocks inbound connections, and coverage that can change as networks are re-planned. For a site that streams video continuously, a fixed line with cellular backup is still the safer design; for telemetry, remote access and moderate data, cellular alone is common and reliable.

These systems take a 4G or 5G module and act as gateways or connected edge computers. We fit the module, SIMs and antennas you specify, configure the APN, VPN and failover, image the operating system and test the complete system before it ships.

The iEP-5020G uses an Intel Amston Lake processor at 9 W, which keeps a DIN-rail gateway fanless while leaving headroom for containers and logging. Where the gateway also runs camera analytics, a Jetson Orin Nano system sends events rather than video over the cellular link. Our connected ambulance fleet project shows dual-network 5G in a vehicle, and wide temperature computers cover cabinets that see frost and summer sun.
