US 24 Inch Industrial Monitors
24 Inch Full HD Displays for Consoles, Kiosks and Bridges
Twenty-four inch industrial monitors are the large-format screen for supervisory consoles, bridges and interactive kiosks, where the operator needs an overview rather than a single machine view. Available as 23.8 and 24 inch full HD and 4K panels in panel mount, chassis, open frame and rack builds, with PCAP, resistive or SAW touch.
Options include front IP66 marine displays designed to IEC 60945, 1,600 nit sunlight-readable panels, stainless steel washdown builds and military rack displays, suited to control consoles, ship bridges, kiosks and signage.
Speak to a display specialist to match the format, touch and mounting to your console.
Browse Our 24" Touch Screen Monitors
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP69K
- Certification: CE, FCC
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP65
- Certification: CE, FCC
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: -10°C to 60°C [14°F to 140°F], -25°C to 60°C [-13°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: -10°C to 60°C [14°F to 140°F], -25°C to 60°C [-13°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x VGA Input, 1xDVI-D, 5 x BNC
- Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 23.8"[16:9, 3840 x 2160, UHD]
- Touch: Multi Touch PCAP
- Brightness: 540
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input, 2 x Optional HDMI
- Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 23.8"[16:9, 3840 x 2160, UHD]
- Touch: Resistive Touch
- Brightness: 540
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
- Power: 24V DC
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: Front IP66
- Certification: CE, FCC
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Optional Resistive Touch, Optional Surface Acoustic Wave Touch
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x DVI Input, 1x HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Optional Resistive Touch, Optional Surface Acoustic Wave Touch
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x DVI Input, 1x HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Optional Resistive Touch, Optional Surface Acoustic Wave Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x DVI Input, 1x HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Projective Capacitive Touch
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: 0°C to 60°C [32°F to 140°F]
- IP Rating: IP66, IP69K
- Certification: CE, FCC

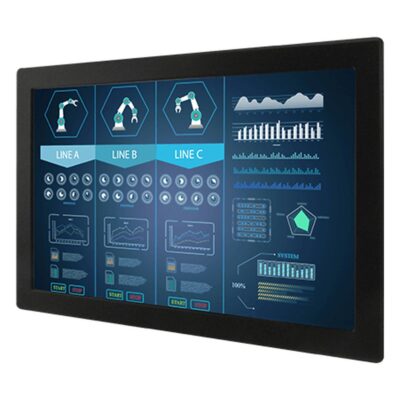

- Display: 24"[8:5, 1920 x 1200, WUXGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

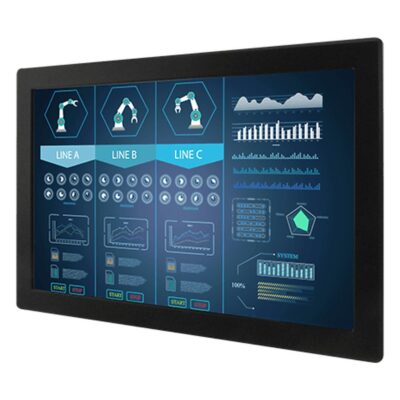

- Display: 24"[8:5, 1920 x 1200, WUXGA]
- Touch: Optional Resistive Touch, Optional Surface Acoustic Wave Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
All Industrial MonitorsBack to the full range
7 Inch Industrial Monitors5.7, 6.5, 7, 8 and 8.4 inch · 4:3 and 17:10
10 Inch Industrial Monitors10.1 and 10.4 inch · 4:3 and 5:3
12 Inch Industrial Monitors12.1 inch · 4:3
15 Inch Industrial Monitors15 and 15.6 inch · 4:3 and 16:9
17 Inch Industrial Monitors17 inch · 5:4
19 Inch Industrial Monitors18.5 and 19 inch · 5:4
21.5 Inch Industrial Monitors21.3 and 21.5 inch · 16:9
27 Inch Industrial Monitors26 and 27 inch · 16:9
32 Inch Industrial Monitors32 inch · 16:9
Large Format Industrial Monitors40, 42.5 and 55 inch · 16:924 Inch Monitor Ranges Configured by Things Embedded
We work with the leading manufacturers of 24 inch displays, so the ranges below are the ones we specify for supervisory consoles, bridges and kiosks. Compare them by mounting, touch and brightness, then browse the models above or ask a display specialist which range suits your console.
Winmate Open Frame Monitors
Housing-free modules from 5.7 to 42.5 inches with resistive or SAW touch and high-brightness options, built into kiosk, signage and machine enclosures.
Winmate Marine Monitors
Bridge and engine room screens from 10.1 to 32 inches with a front IP66 bezel, designed to DNV and IEC 60945 requirements, with sunlight-readable options.
Winmate Military Rack and Console Displays
Defense screens from 8.4 to 55 inches for rack, console and vehicle mounting, with PCAP or resistive touch and 4K options.
Winmate Outdoor and G-WIN Chassis Displays
PCAP touch screens from 7 to 55 inches with a front IP65 face, in high-bright outdoor and PoE builds, for kiosks, gates and outdoor control points.
Winmate Stainless Steel Washdown Displays
Chassis-mount screens from 10.4 to 32 inches in stainless steel with PCAP touch, sealed to IP65 or IP69K, for food, beverage and pharmaceutical lines.
Winmate PCAP Open Frame Displays
Multi-touch projected capacitive modules from 7 to 32 inches, including USB Type-C models, for kiosks and OEM enclosures.
Winmate Rack Mount Monitors
19 inch rack screens from 15 to 32 inches with resistive or SAW touch, for control consoles and equipment cabinets.
Winmate Outdoor Panel Mount Displays
Sunlight-readable PCAP screens from 7 to 23.8 inches with a front IP65 bezel, for cabinet doors, dispensers and outdoor enclosures.
SM Arestech 1,600 Nit Sunlight Readable Monitors
High-brightness screens from 10.4 to 24 inches with a 1,600 nit panel and a front IP65 bezel, in PCAP, resistive or non-touch builds for panel or chassis mounting.
DM Arestech Modular Displays
PCAP touch screens from 10.4 to 24 inches with a front IP65 bezel, the display half of the DM modular panel PC, for panel or chassis mounting.
TPM-36 Arestech IP66/IP69K Stainless Steel Displays
Washdown screens from 10.1 to 23.8 inches in stainless steel, sealed to IP66 and IP69K, with PCAP or resistive touch and wireless options for hygienic lines.
Not sure which range fits? Tell us the application and we will recommend the right model.
24 Inch Display Innovation & Supervisory Console Insights
Speak to a Display Specialist.
Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
