US 19 Inch Panel PCs
19 Inch Industrial Touch Panel PCs for Control Rooms and Operator Stations
Nineteen inch panel PCs put a full-size screen in front of the operator for control rooms, operator stations and washdown lines. Available in 19 inch 5:4 and 18.5 inch widescreen formats with resistive or PCAP touch and sealing from a front IP65 bezel to fully sealed IP69K stainless steel, they replace a monitor and a separate computer with one unit.
Options include panel-mount, chassis, open-frame and VESA builds and stainless steel enclosures, suited to control rooms, food and beverage lines and warehouse control desks where the screen is shared, worked in gloves and hosed down.
Speak to a panel PC specialist to match the format, sealing and mounting to your control room or line.
Browse Our 19 Inch Touch Screen Computers
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron J Series Elkhart Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- M.2: 1x M.2 M-Key [PCIe x2/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD [PCIe & SATA]
- Power: 12-36V DC Input [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP54
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Touch: 5-Wire Resistive Touch
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 12th Gen Alder Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD [PCIe & SATA]
- Power: 9-36V DC Input [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP54
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Touch: 5-Wire Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron J Series Elkhart Lake
- Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
- OS: Linux
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
- mPCIe: 1x mPCIe [SATA/USB]
- Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
- Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Touch: Projective Capacitive Touch
- PCIe: 1x PCIe [x4 Slot]
- Display: 19[5:4, 1280 x 1024, SXGA]
- Touch: Optional Resistive Touch
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Storage: 1x M.2 SSD
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

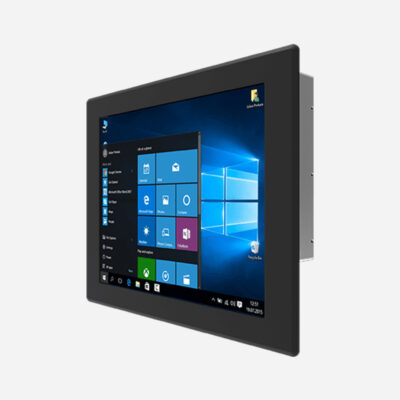

- Display: 19[5:4, 1280 x 1024, SXGA]
- Touch: Optional Resistive Touch
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Storage: 1x M.2 SSD
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 19[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F]
- IP Rating: IP67
- Certification: CE, FCC
- Display: 19[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Storage: 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP69K
- Certification: CE, FCC
- Display: 19[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Ethernet: 1x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- M.2: 1x M.2 B/M-Key [PCIe x4/USB/SATA] [2242/3042]
- Storage: 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP69K
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 1x DDR4 2400MHz SO-DIMM Slot, 32GB
- OS: Linux Ubuntu 22.04, Windows 10
- Display Outputs: 1x HDMI, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.0 [Type A]
- Serial: 1x RS232 [DB9], 4x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [USB/SATA] [2242], 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 2x M.2 SSD
- Power: 24V DC
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: Front IP66
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 800
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Ethernet: 1x GbE LAN [RJ45], 1x GbE LAN [Terminal Block]
- USB: 1x USB 2.0 [Terminal Block], 1x USB 3.2 Gen 2 [Type A], 2x USB 2.0 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [Terminal Block]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-36V DC Input [Terminal Block]
- Temp: -40°C to 70°C [-40°F to 158°F]
- IP Rating: IP66
- Certification: ATEX Zone 2, CE, FCC, IECEx, UL 62368-1, UL Class 1 Division 2
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 1x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP69K
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Resistive Touch
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 1x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP67
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 2x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP65
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 2x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP65
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 2x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP65
- Certification: CE, FCC
19 Inch Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of full-size HMIs, so the ranges below are the ones we specify for control rooms, operator stations and washdown lines. Compare them by sealing, processor and mounting, then browse the models above or ask a panel PC specialist which range suits your control room or line.
IT3S Winmate Core-Class Panel Mount PCs
Fanless flush-mount HMIs on Intel Core i5 Tiger Lake from 10.4 to 23.8 inches, in standard and front IP65 builds, for control cabinets and consoles that need Core-class performance behind the screen.
IT7T Winmate Tiger Lake Panel Mount HMIs
Panel-mount touch computers on Intel Core i5 Tiger Lake from 15 to 23.8 inches, with resistive touch or a slim front IP65 PCAP bezel, for machine and console HMIs.
IT7T and IF7T Winmate Chassis-Mount Touch Computers
VESA and wall-mount units from 12.1 to 23.8 inches on Intel Pentium, Core i5 Tiger Lake or Core i3 to i7 Coffee Lake, with resistive touch and wide-temperature options, for arms, desks and walls.
IT7T and IE3S Winmate Open Frame Touch Computers
Housing-free modules from 7 to 23.8 inches with PCAP multi-touch, on Intel Celeron or Core i5 Tiger Lake with vPro, built to drop into kiosk, signage and OEM enclosures.
IE3S Winmate Stainless Steel Washdown PCs
Hygienic touch terminals from 10.1 to 23.8 inches in stainless steel on Intel Celeron N6210, in IP65 and full IP69K builds with M12 connectors, and push-button variants beside the screen.
IE3S Winmate IP65 and IP67 Stainless Chassis Computers
Sealed stainless chassis PCs on Intel Celeron N6210 from 10.4 to 23.8 inches, rated IP65 or IP67 with M12 connectors, for wipe-down and immersion-risk positions.
IT3S Winmate IP69K AISI 316 Stainless Panel PCs
Full IP69K AISI 316 stainless HMIs on Intel Core i5 Tiger Lake from 15 to 23.8 inches, with PCAP rain-mode touch for the wettest positions on the line.
Winmate G-WIN Full IP67 Rugged HMIs
Fully sealed IP67 rugged computers in 15 and 19 inch on Intel Celeron or Core i5, with high-bright screens and M12 connectors, for decks, vehicles and outdoor sites.
Winmate ATEX and Class I Div 2 Panel PCs
Certified HMIs from 12.1 to 23.8 inches on Intel Atom, Celeron and Core i5, carrying UL Class I Division 2 with ATEX Zone 2 on selected models, for operator stations inside classified areas.
IT3S Winmate Marine Touch Computers
Front IP66 console computers on Intel Core i7 Tiger Lake from 12.1 to 24 inches, designed for bridge and engine room consoles.
IT3S Winmate Rack Mount Touch Computer
An 18.5 inch full HD rackmount HMI on Intel Core i5 Tiger Lake for 19 inch control consoles and test rigs.
DM Arestech Modular Panel PCs
Two-part systems built from a DM display and a PM-2000 Intel Celeron compute module, with PCAP touch and a front IP65 bezel, for panel or chassis mounting from 10.4 to 24 inches.
PPC-Z Arestech IP66/IP69K Stainless Steel Panel PCs
Fanless stainless steel all-in-one units from 10.1 to 23.8 inches, sealed to IP66 and IP69K with M12 connectors, on Intel Pentium to Core i5, with 316-grade builds and an RFID reader option for operator login at the line.
VIO C&T Solution Modular Touch Computers
Modular HMIs that pair a VIO display with a fanless Intel Celeron compute module behind a front IP65 bezel, with resistive or PCAP touch, so the computer can be upgraded without changing the cabinet cut-out.
GOT800 Axiomtek IP69K Full-Flat Stainless HMIs
Full-flat 304 stainless steel operator panels from 15.6 to 21.5 inches, sealed to IP69K, on Intel Core Tiger Lake with PCAP touch, for line-side screens where a widescreen format suits recipe and batch views.
Not sure which range fits? Tell us the application and we will recommend the right model.
19 Inch Panel PC Innovation & Control Room Insights
Speak to a Panel PC Specialist.
Tell us where the panel PC will be mounted, what it needs to run and connect to and the sealing the area needs, and we will recommend the right size and touch technology, then configure, image and test it before it ships.
