Machine Vision Frame Grabbers for GigE, USB3 and GMSL Cameras
A frame grabber card connects industrial cameras straight to a PC or edge system over PCIe, so inspection and AI software receives every frame without a separate interface box. The range covers PoE+ and PoE++ cards that power GigE Vision cameras, USB 3 cards with dedicated host controllers and GMSL2 cards for long camera runs on vehicles and robots.
Options include one to eight camera ports, links from 1GbE to 10GbE, PoE++ at up to 90 W per port, M12, SFP+ and 1000BASE-T1 automotive Ethernet connectors, wide-temperature builds and AI frame grabbers that carry their own NVIDIA Jetson module, suited to inspection lines, traffic and ALPR systems, robotics and autonomous vehicles where each camera needs its own bandwidth.
Speak to a frame grabber specialist to match the camera interface, port count and host slot to your vision system.
Browse Our Frame Grabber Cards
- Power: 12V DC [4-Pin]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC

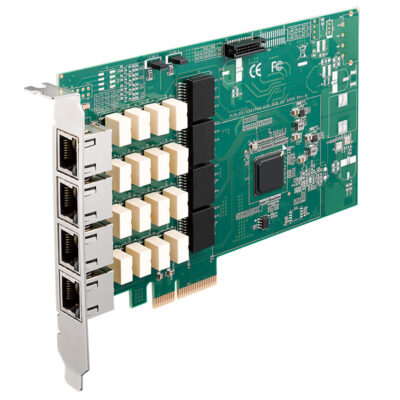

- Ethernet: 4x GbE LAN [RJ45]
- Power: 12V DC [4-Pin]
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, FCC, RoHS

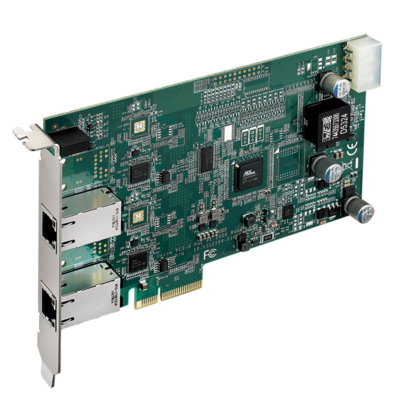

- Ethernet: 2x GbE LAN [RJ45] [PoE]
- Power: 12V DC [4-Pin]
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, FCC, RoHS

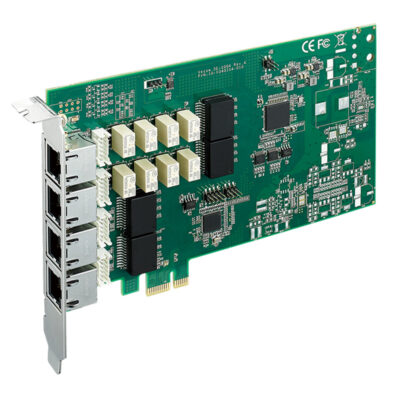

- Ethernet: 4x GbE LAN [RJ45]

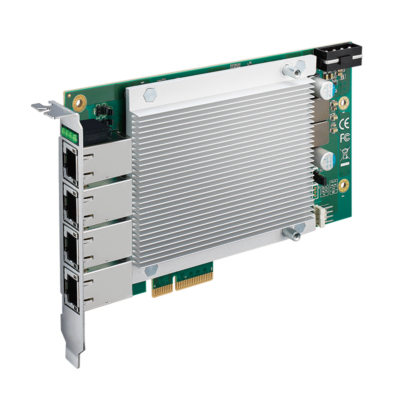

- Ethernet: 4x 10 GbE LAN [RJ45] [PoE]
- Power: 12V DC [4-Pin]
- Temp: -25°C to 55°C [-13°F to 131°F]
- Certification: CE, FCC, RoHS

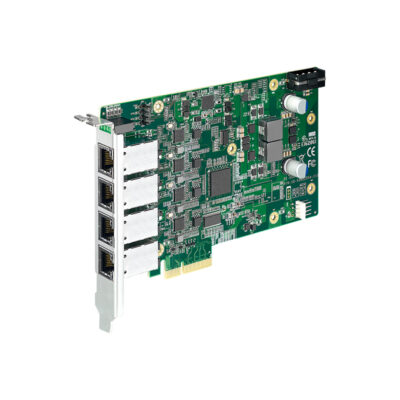

- Ethernet: 4x 2.5 GbE LAN [RJ45] [PoE]
- Power: 12V DC [4-Pin]
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC, RoHS

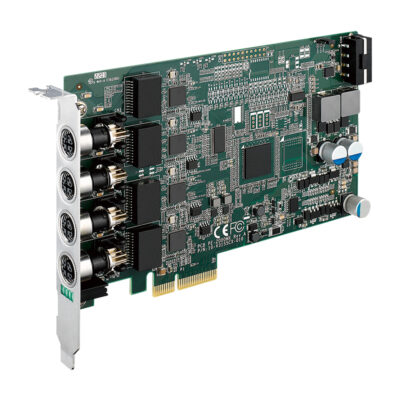

- Ethernet: 4x GbE LAN [M12] [PoE]
- Power: 12V DC [4-Pin]
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, FCC

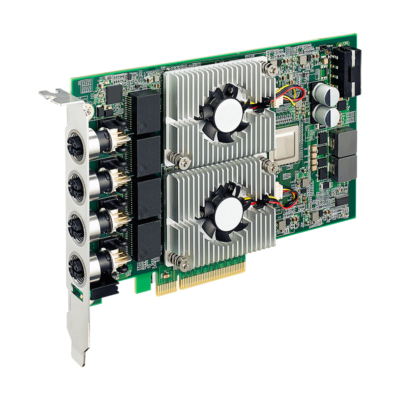

- Ethernet: 4x 10 GbE LAN [M12] [PoE]
- Power: 12V DC [4-Pin]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
Frame Grabber Ranges Configured by Things Embedded
We work with the leading manufacturers of machine vision frame grabbers, so the ranges below are the ones we specify for inspection, traffic and robotics systems. Compare them by camera interface, port count and link speed, then browse the cards above or ask a machine vision specialist which range suits your system.
PE and SE Vecow PoE+ and PoE++ LAN Cards
One, two and four-port Gigabit, 2.5GbE and 10GbE PoE cards on RJ45 or X-coded M12, from IEEE 802.3at PoE+ to 802.3bt PoE++ at up to 90 W per port, with IEEE 1588 PTP, LAN bypass builds and ranges down to -40 °C.
LE-1055 and FE-1071 Vecow 10GbE LAN Cards
Dual-port 10GbE cards with IEEE 1588 PTP: LE-1055 on 10GBASE-T RJ45 and the low profile FE-1071 on SFP+ cages for fiber or copper modules.
UE-1000 Vecow USB 3.0 PCIe Cards
Four and eight-port USB 3.0 cards on four Renesas host controllers, with jumper-selectable port current for bus-powered cameras.
AE-1004 Vecow 1000BASE-T1 Ethernet Card
Four 1000BASE-T1 automotive Ethernet ports on MATEnet connectors, each on its own Microchip LAN7431 controller, rated -40 to 70 °C.
PCIe-PoE Neousys PoE+ Frame Grabber Cards
Two and four-port PoE+ frame grabber cards with IEEE 802.3at on every port, from Gigabit Intel I350 cards, including a low profile card with surge protection, to 5GBASE-T and 10GBASE-T models with IEEE 1588.
PCIe-NX154 Neousys AI Frame Grabber Cards With PoE+
Four 2.5GBASE-T PoE+ ports and an onboard NVIDIA Jetson Orin NX 8GB or 16GB module that runs AI on the camera streams before they reach the host.
PCIe-NX156 Neousys AI Frame Grabber Cards With USB 3
Six USB 3.2 ports, two of them at 10 Gbps, with an onboard NVIDIA Jetson Orin NX 8GB or 16GB module for AI on USB camera feeds.
PCIe-USB381F Neousys USB 3 Frame Grabber Card
Eight USB 3.1 Gen1 ports run by four host controllers, with jumper-selectable port current for bus-powered industrial cameras.
PCIe-GL26 Neousys AI Frame Grabber Cards With GMSL2
Six GMSL2 inputs on FAKRA connectors with an onboard NVIDIA Jetson Xavier NX module, a GPS PPS input for frame sync and an isolated CAN port.
PCIe-NPL54 Neousys GMSL2 Frame Grabber Card
Four GMSL2 inputs on FAKRA connectors in a fanless card rated from -40 to 70 °C, with GPS PPS input and output for synchronized capture.
AX92320, AX92324 and AX92325 Axiomtek PoE and 10GbE LAN Cards
Gigabit and 10GbE cards on RJ45 or X-coded M12 in PoE and non-PoE builds, with IEEE 1588 and per-port PoE power management software on the PoE cards.
AX92322 Axiomtek Gigabit LAN Cards
Two and four-port Gigabit Ethernet cards with an independent Intel i210-AT controller on each port, IEEE 1588 and 9.5KB jumbo frames.
AX92321 Axiomtek USB 3.0 PCIe Cards
Four and eight-port USB 3.0 cards on four Renesas host controllers, with jumper-selectable port current and software power control per port.
AX92352 and AX92353 Axiomtek Vision I/O Cards
A two-channel quadrature encoder and trigger card with 2 kV isolation, and a four-channel constant-current LED lighting controller for vision stations.
ZED Link Stereolabs GMSL2 Capture Cards for NVIDIA Jetson
Deserialiser boards that bring one, four or eight ZED X and ZED X One cameras into Jetson Orin developer kits over FAKRA coax.
ZED Link MIPI Quad Stereolabs Camera Interface Board
Four MIPI CSI-2 channels for ZED X One Core cameras on Jetson AGX Orin, or two on Jetson Thor through the Holoscan Sensor Bridge.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a PCIe Frame Grabber
Our machine vision specialists specify every frame grabber against the cameras, the host system and the software that will use the images. These are the choices we work through with you before recommending a card.
Camera Interface
GigE Vision over Ethernet, USB3 Vision or GMSL2: the camera decides the card, so start with the interface it uses.
Ports and Bandwidth
One port per camera keeps bandwidth predictable; 2.5GbE, 5GbE and 10GbE ports suit high-resolution sensors.
Camera Power
PoE+ ports power each camera over its data cable; check the total budget against every camera on the card.
Host Slot
Match the PCIe lanes and bracket height to the free slot, from low profile and x1 cards to full-height x8 cards.
Onboard AI
AI frame grabbers run inference on a Jetson module on the card, so the vision model does not load the host.
Environment
Wide-temperature and fanless cards, surge protection and M12 connectors for vehicles, cabinets and machines.
Explore Frame Grabbers and Camera Systems
Compare every frame grabber by camera interface, or move across to video capture cards and complete PoE and Jetson vision systems.
Frame Grabber Innovation & Machine Vision Insights
Speak to a Frame Grabber Specialist.
Tell us the cameras you need to connect, how long the cable runs are and the PC or edge system the card goes into. We will recommend the right frame grabber, then configure and test it with your system before it ships.
