5:4 Monitors

// LOADING...

Browse Our SXGA 5:4 Monitors

Display

Power

Environmental Conditions

Mechanical Properties

Displaying of 82 items

View All

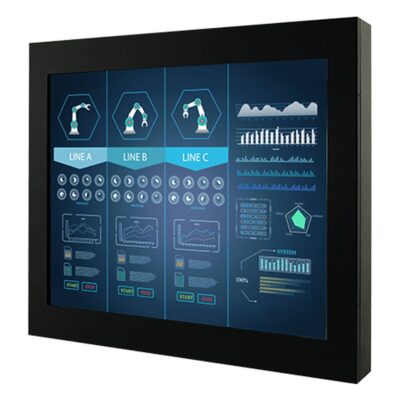

R17L500-CHA1TR 17″ Chassis Monitor with Transflective LCD and Resistive Touch

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Optional Resistive Touch
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R17L500-CHA1TR17″ Chassis Monitor with Transflective LCD and Resistive Touch

Datasheet

TPM-S3317 17″ Resistive Stainless Steel Touch Monitor with SXGA LCD and Front IP66/IP69K

TPM-S3317R-A117″ Resistive Stainless Steel Touch Monitor with SXGA LCD and Front IP66/IP69K

Display: 17"[5:4, 1280 x 1024, SXGA]
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x HDMI Input, 1x VGA Input
Power: 12V DC [Terminal Block]
Temp: -20°C to 60°C [-4°F to 140°F]
IP Rating: Front IP66, Front IP69K
Certification: CE, FCC

Touch: 5-Wire Resistive Touch

Arestech

TPM-S331717" PCAP or Resistive Stainless Steel Touch Monitors with Front IP66/IP69K

Available in 2 variations

Datasheet

Select TPM-S3317 Variant

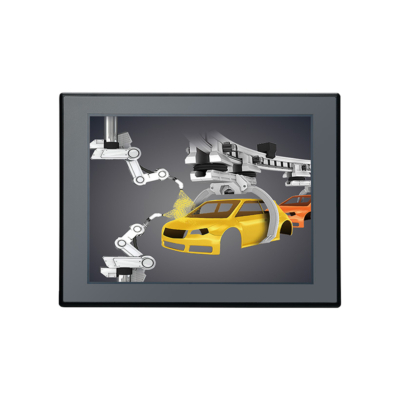

APPD 1701T 17″ Flush Resistive Touch Industrial Monitor with 1280 x 1024 SXGA LCD and Front IP65

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: 5-Wire Resistive Touch
Brightness: 350
Format: Standard
Display Inputs: 1x VGA Input, 1xDVI-D
Power: 12-24V DC [Terminal Block]
Temp: -5°C to 50°C [23°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Nexcom

APPD 1701T17″ Flush Resistive Touch Industrial Monitor with 1280 x 1024 SXGA LCD and Front IP65

Datasheet

R17L500-RKM1 17″ Rack Mount Monitor with Resistive Touch and 350 Nit SXGA LCD

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
Brightness: 250
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

R17L500-RKM117″ Rack Mount Monitor with Resistive Touch and 350 Nit SXGA LCD

Datasheet

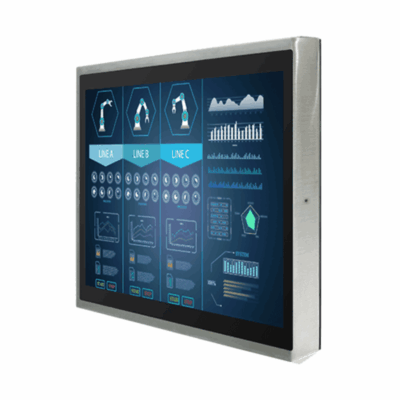

R17L100-SPM1 17″ IP65 Stainless Steel PCAP Touch Monitor with 316 Housing and SXGA Panel

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC [M12]
Temp: 0°C to 45°C [32°F to 113°F]
IP Rating: IP65
Certification: CE, FCC

Winmate

R17L100-SPM117″ IP65 Stainless Steel PCAP Touch Monitor with 316 Housing and SXGA Panel

Datasheet

TPM-3217 17″ 5-Wire Resistive Industrial Touch Monitor with SXGA LCD and IP54 Panel Mount

TPM-3217R17″ 5-Wire Resistive Industrial Touch Monitor with SXGA LCD and IP54 Panel Mount

Display: 17"[5:4, 1280 x 1024, SXGA]
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input
Power: 12-24V DC [Terminal Block]
Temp: -20°C to 60°C [-4°F to 140°F]
IP Rating: IP54
Certification: CE, FCC

Touch: 5-Wire Resistive Touch

Arestech

TPM-321717" SXGA Industrial Touch Monitors with IP54 Panel Mount and PCAP or Resistive Touch

Available in 2 variations

Datasheet

Select TPM-3217 Variant

R17L100-MLA1FP 17″ Rack Mount PCAP Touch Defense Monitor with MIL-STD-810G and 461E Compliance

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input, 1xDVI-D, 5 x BNC
Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

R17L100-MLA1FP17″ Rack Mount PCAP Touch Defense Monitor with MIL-STD-810G and 461E Compliance

Datasheet

R17L100-RKA1ML 17″ Rack Mount Defense Monitor with AR Protection Glass and MIL-STD-810G Compliance

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Optional 5-Wire Resistive Touch
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input, 1xDVI-D, 5 x BNC
Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
Temp: -20°C to 60°C [-4°F to 140°F]
Certification: CE, FCC

Winmate

R17L100-RKA1ML17″ Rack Mount Defense Monitor with AR Protection Glass and MIL-STD-810G Compliance

Datasheet

SM-117(P)(R)/VM-2100 17″ 5-Wire Resistive Sunlight Readable Monitor with 1,500 Nit LCD and Ignition Sensing

SM-117R/VM-210017″ 5-Wire Resistive Sunlight Readable Monitor with 1,500 Nit LCD and Ignition Sensing

Display: 17"[5:4, 1280 x 1024, SXGA]
Brightness: 1500
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input
Power: 9-48V DC Input, Terminal Block, Optional AC Power Supply
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 60°C [14°F to 140°F]
IP Rating: Front IP65
Certification: CE, FCC

Touch: Resistive Touch

Touch: Projective Capacitive Touch

Arestech

SM-117(P)(R)/VM-210017" 1,500 Nit Sunlight Readable Monitors with Front IP65 Bezel

Available in 3 variations

Datasheet

Select SM-117(P)(R)/VM-2100 Variant

R17L100-67M1ST 17″ IP67 Stainless Steel Resistive Touch Monitor with 316 Housing and SXGA Panel

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Resistive Touch
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC
Temp: 0°C to 45°C [32°F to 113°F]
IP Rating: IP67
Certification: CE, FCC

Winmate

R17L100-67M1ST17″ IP67 Stainless Steel Resistive Touch Monitor with 316 Housing and SXGA Panel

Datasheet

S17L500-STM1 17″ Stainless Steel Panel Mount Monitor with Resistive Touch and Front IP65

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Resistive Touch
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

S17L500-STM117″ Stainless Steel Panel Mount Monitor with Resistive Touch and Front IP65

Datasheet

ARC-1700 17″ PCAP Industrial Touch Monitor with 5:4 SXGA LCD and Front IP65 Bezel

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Multi Touch PCAP
Brightness: 350
Format: Standard
Display Inputs: 1x Display Port Input, 1x HDMI 1.4, 1x VGA Input
Power: 12V DC
Temp: -10°C to 50°C [14°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Avalue

ARC-170017″ PCAP Industrial Touch Monitor with 5:4 SXGA LCD and Front IP65 Bezel

Datasheet

S17L500-OFA1HB 17″ High Brightness Open Frame Monitor with 1000 Nit SXGA LCD

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Optional Resistive Touch
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x DVI Input, 1x HDMI Input, 1x VGA Input
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

S17L500-OFA1HB17″ High Brightness Open Frame Monitor with 1000 Nit SXGA LCD

Datasheet

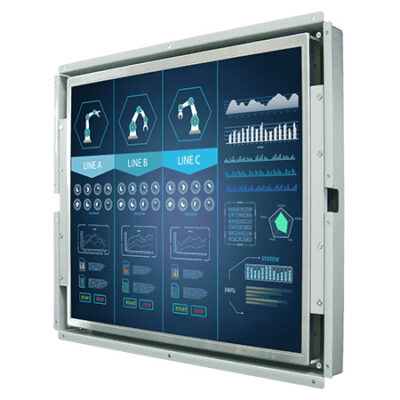

S17L500-OFM1 17″ Open Frame Monitor with 350 Nit SXGA LCD and Resistive or SAW Touch Options

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Optional Resistive Touch, Optional Surface Acoustic Wave Touch
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x DVI Input, 1x HDMI Input, 1x VGA Input
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

S17L500-OFM117″ Open Frame Monitor with 350 Nit SXGA LCD and Resistive or SAW Touch Options

Datasheet

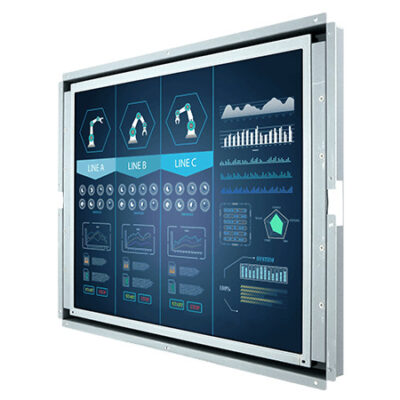

S17L500-OFA1TR 17″ Open Frame Transflective Monitor with 400 Nit SXGA LCD and Optional Resistive Touch

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Optional Resistive Touch
Brightness: 400
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x DVI Input, 1x HDMI Input, 1x VGA Input
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

S17L500-OFA1TR17″ Open Frame Transflective Monitor with 400 Nit SXGA LCD and Optional Resistive Touch

Datasheet

Displaying of 82 items

View All

Beyond 5:4 Screens: Industrial Monitors

All Industrial MonitorsEvery industrial monitor we supply, from open frame screens to sealed chassis and rack mount displays.

4:3 Monitors4:3 aspect ratio monitors that drop into existing cut-outs and suit legacy HMI software layouts.

// Display Specialists

Speak to a Display Specialist.

Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
