Industrial ATX and Micro-ATX Motherboards

// LOADING...

Browse Our Industrial PC Motherboards

Performance

Graphics

I/O

Expansion

Storage

Power

Environmental Conditions

Displaying of 46 items

View All

ICX610 3rd Gen Intel Xeon Scalable Ice Lake-SP ATX Server Board with C621A Chipset, Dual 10GbE and Six Expansion Slots

ICX610-C621A3rd Gen Intel Xeon Scalable Ice Lake-SP ATX Server Board with C621A Chipset, Dual 10GbE and Six Expansion Slots

CPU: Intel 3rd Gen Xeon Scalable Ice Lake-SP
Memory: 8x DDR4 3200MHz LONG-DIMM Slots, 512GB
OS: Linux, Linux Ubuntu 20.04
Display Outputs: 1x VGA
Ethernet: 2x 10 GbE LAN [RJ45], 3x GbE LAN [RJ45]
USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Board], 3x USB 2.0 [Board], 4x USB 3.1 Gen 1 [Type A]
Serial: 1x RS232 [Board], 1x RS232 [DB9]
M.2: 1x M.2 M-Key [PCIe x4/SATA] [2280]
PCIe: 3x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4], 3x PCIe [x8 Slot] [Gen4]
Storage: 1x M.2 SSD, 6x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: 0°C to 55°C [32°F to 131°F]
Certification: CE, FCC, RoHS, UKCA

DFI

ICX6103rd Gen Intel Xeon Scalable Ice Lake-SP ATX Server Motherboards with Dual 10GbE and PCIe Gen4

Datasheet

CS650 Intel Coffee Lake Core ATX Embedded Motherboard with Q370 Chipset, Dual LAN and Seven Expansion Slots

CS650-Q370CRMIntel Coffee Lake Core ATX Embedded Motherboard with Q370 Chipset, Dual LAN and Seven Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
OS: Linux, Windows 11
Display Outputs: 1x VGA, 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Board], 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Board]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280]
mPCIe: 1x mPCIe [PCIe/USB/SATA]
PCI: 1x PCI
PCIe: 1x PCIe [x1 Slot] [Gen3], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 3x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, KC, RoHS, UL

DFI

CS650Intel Xeon E and Coffee Lake Core Industrial ATX Mainboards with C246 or Q370 Chipset and Seven Expansion Slots

Available in 2 variations

Datasheet

Select CS650 Variant

CS632 Intel Coffee Lake Core Industrial ATX Motherboard with Q370 Chipset, Dual LAN and Six Expansion Slots

CS632-Q370CRMIntel Coffee Lake Core Industrial ATX Motherboard with Q370 Chipset, Dual LAN and Six Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
OS: Linux
Display Outputs: 1x VGA, 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 3.1 Gen 2 [Board], 5x USB 2.0 [Board], 2x USB 2.0 [Type A], 4x USB 3.1 Gen 1 [Type A]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1x mPCIe [PCIe/USB/SATA]
PCI: 2x PCI
PCIe: 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 3x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, RoHS

DFI

CS632Intel Xeon E and 8th and 9th Gen Core Industrial ATX Motherboards with Six COM Ports and Six Expansion Slots

Available in 2 variations

Datasheet

Select CS632 Variant

CS631 Intel Coffee Lake Core ATX Industrial Motherboard with Q370 Chipset, Dual LAN and Seven Expansion Slots

CS631-Q370CRMIntel Coffee Lake Core ATX Industrial Motherboard with Q370 Chipset, Dual LAN and Seven Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
OS: Linux
Display Outputs: 1x VGA, 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Board], 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Board]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
M.2: 1x M.2 M-Key [PCIe x2 Gen3] [2242/2260/2280]
mPCIe: 2x mPCIe [SATA/USB/PCIe]
PCI: 1x PCI
PCIe: 1x PCIe [x1 Slot] [Gen3], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 3x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 5x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, RoHS

DFI

CS631Intel Xeon E and Coffee Lake Core ATX Embedded Motherboards with C246 or Q370 Chipset

Available in 2 variations

Datasheet

Select CS631 Variant

CS630 Intel Coffee Lake Core Industrial ATX Mainboard with Q370 Chipset, Dual LAN and Seven Expansion Slots

CS630-Q370CRMIntel Coffee Lake Core Industrial ATX Mainboard with Q370 Chipset, Dual LAN and Seven Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
OS: Linux, Windows 11
Display Outputs: 1x Display Port, 1x DVI, 1x VGA
Ethernet: 2x GbE LAN [RJ45]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
PCI: 5x PCI
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, KC, RoHS, UKCA

Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
USB: 2x USB 3.1 Gen 2 [Board], 2x USB 2.0 [Type A], 4x USB 2.0 [Board], 4x USB 3.1 Gen 1 [Type A]
M.2: 1x M.2 M-Key [PCIe x4 Gen3/SATA] [2260/2280]
mPCIe: 1x mPCIe [PCIe/SATA]
PCIe: 1x PCIe [x16 Slot] [Gen3], 1x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports

DFI

CS630Intel 8th and 9th Gen Core ATX Industrial Motherboards with H310 or Q370 Chipset and Seven Expansion Slots

Available in 2 variations

Datasheet

Select CS630 Variant

CS350 Intel Coffee Lake Core Micro-ATX Embedded Motherboard with Q370 Chipset, Dual LAN and Four COM Ports

CS350-Q370NRMIntel Coffee Lake Core Micro-ATX Embedded Motherboard with Q370 Chipset, Dual LAN and Four COM Ports

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
OS: Linux
Display Outputs: 1x Display Port, 1x DVI, 1x HDMI
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 3.1 Gen 2 [Board], 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Board]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 2x RS232 [Board]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 2x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 6x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

DFI

CS350Intel Xeon E and 8th and 9th Gen Core Micro-ATX Industrial Motherboards with C246 or Q370 Chipset

Available in 2 variations

Datasheet

Select CS350 Variant

CS332 Intel Coffee Lake Core Micro-ATX Industrial Motherboard with Q370 Chipset, Quad LAN and Four Expansion Slots

CS332-Q370Intel Coffee Lake Core Micro-ATX Industrial Motherboard with Q370 Chipset, Quad LAN and Four Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
OS: Linux
Display Outputs: 1x VGA, 2x Display Ports
Ethernet: 4x GbE LAN [RJ45]
Serial: 1x RS232/422/485 [DB9], 3x RS232 [Board]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1x mPCIe [PCIe/USB]
PCI: 1x PCI
PCIe: 1x PCIe [x16 Slot] [Gen3], 2x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, RoHS, UL

USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 2x USB 3.2 Gen 1 [Type A], 4x USB 2.0 [Board]

DFI

CS332Intel Coffee Lake Core Micro-ATX Motherboards with C246 or Q370 Chipset and Quad LAN

Available in 2 variations

Datasheet

Select CS332 Variant

CS331 Intel Coffee Lake Core Industrial Micro-ATX Motherboard with Q370 Chipset, Dual LAN and Four Expansion Slots

CS331-Q370NRMIntel Coffee Lake Core Industrial Micro-ATX Motherboard with Q370 Chipset, Dual LAN and Four Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
OS: Linux
Display Outputs: 1x Display Port, 1x DVI, 1x HDMI
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 3.1 Gen 2 [Board], 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Board]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 2x RS232 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
mPCIe: 1x mPCIe [PCIe/USB/SATA]
PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 2x PCIe [x4 Slot] [Gen3]
Power: ATX Power Supply [8+24 Pin]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, KC, RoHS

Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
Storage: 1x M.2 SSD, 5x SATA Ports

DFI

CS331Intel Xeon E and Coffee Lake Core Micro-ATX Embedded Motherboards with C246 or Q370 Chipset

Available in 2 variations

Datasheet

Select CS331 Variant

CS330 Intel Coffee Lake Core Micro-ATX Embedded Motherboard with Q370 Chipset, Dual LAN and Four Expansion Slots

CS330-Q370CRMIntel Coffee Lake Core Micro-ATX Embedded Motherboard with Q370 Chipset, Dual LAN and Four Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
OS: Linux
Display Outputs: 1x Display Port, 1x DVI, 1x VGA
Ethernet: 2x GbE LAN [RJ45]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
PCI: 2x PCI
Storage: 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, KC, RoHS, UL

Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Board], 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Board]
mPCIe: 1x mPCIe [PCIe/USB/SATA]
PCIe: 1x PCIe [x16 Slot] [Gen3], 1x PCIe [x4 Slot] [Gen3]

DFI

CS330Intel 8th and 9th Gen Core Micro-ATX Industrial Motherboards with H310 or Q370 Chipset and Six COM Ports

Available in 2 variations

Datasheet

Select CS330 Variant

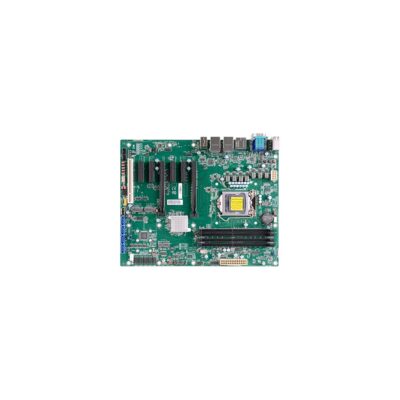

CMS632 Intel Comet Lake Core ATX Embedded Motherboard with Q470E Chipset, Dual LAN and Seven Expansion Slots

CMS632-Q470ECRMIntel Comet Lake Core ATX Embedded Motherboard with Q470E Chipset, Dual LAN and Seven Expansion Slots

CPU: Intel Core 10th Gen Comet Lake
Memory: 4x DDR4 2933MHz LONG-DIMM Slots, 128GB
OS: Linux
Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 1 [Type A], 2x USB 3.2 Gen 2 [Board], 2x USB 3.2 Gen 2 [Type A], 3x USB 2.0 [Board], 4x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
PCI: 1x PCI
PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 4x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS, UKCA

DFI

CMS632Intel Xeon W and 10th Gen Core Industrial ATX Motherboards with Dual M.2 M-Key and Seven Expansion Slots

Available in 2 variations

Datasheet

Select CMS632 Variant

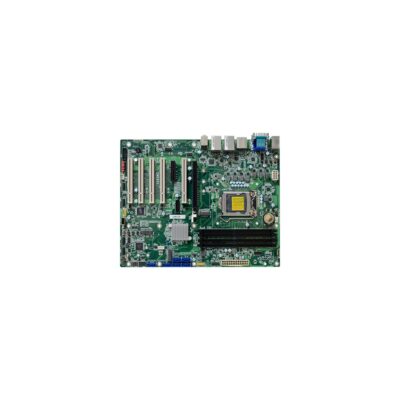

CMS631 Intel Comet Lake Core Industrial ATX Motherboard with H420E Chipset, Dual LAN and Seven Expansion Slots

CMS631-H420ECIntel Comet Lake Core Industrial ATX Motherboard with H420E Chipset, Dual LAN and Seven Expansion Slots

CPU: Intel Core 10th Gen Comet Lake
OS: Linux, Linux Ubuntu 20.04, Windows 11
Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
Ethernet: 2x GbE LAN [RJ45]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
PCI: 5x PCI
PCIe: 1x PCIe [x16 Slot] [Gen3], 1x PCIe [x4 Slot] [Gen3]
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS, UKCA

Memory: 2x DDR4 2933MHz LONG-DIMM Slots, 64GB
USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 4x USB 3.2 Gen 1 [Type A]
M.2: 1x M.2 M-Key [SATA] [2242/2260/2280]
Storage: 1x M.2 SSD, 4x SATA Ports

DFI

CMS631Intel 10th Gen Core ATX Embedded Motherboards with Q470E or H420E Chipset and Seven Expansion Slots

Available in 2 variations

Datasheet

Select CMS631 Variant

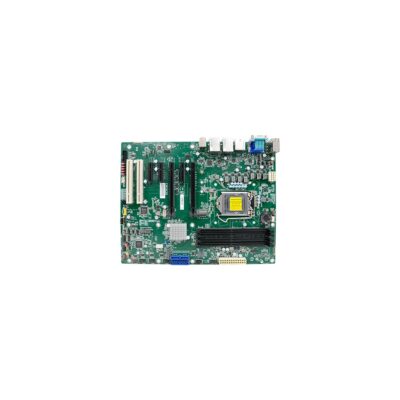

CMS630 Intel Comet Lake Core ATX Industrial Motherboard with Q470E Chipset, Dual LAN and Seven Expansion Slots

CMS630-Q470ECRMIntel Comet Lake Core ATX Industrial Motherboard with Q470E Chipset, Dual LAN and Seven Expansion Slots

CPU: Intel Core 10th Gen Comet Lake
Memory: 4x DDR4 2933MHz LONG-DIMM Slots, 128GB
OS: Linux
Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 1 [Type A], 2x USB 3.2 Gen 2 [Board], 2x USB 3.2 Gen 2 [Type A], 3x USB 2.0 [Board], 4x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
PCI: 2x PCI
PCIe: 1x PCIe [x4 Slot] [x1 Signal] [Gen3], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 2x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, KC, RoHS, UKCA, UL

DFI

CMS630Intel Xeon W and 10th Gen Core ATX Industrial Motherboards with Seven Expansion Slots

Available in 2 variations

Datasheet

Select CMS630 Variant

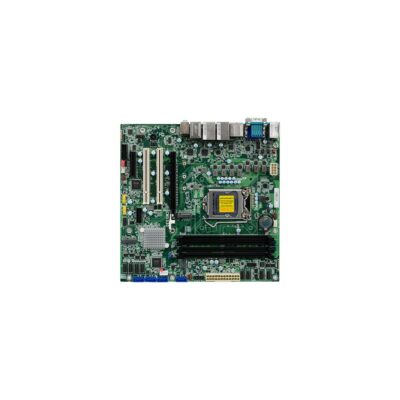

CMS330 Intel Comet Lake Core Micro-ATX Industrial Motherboard with H420E Chipset, Dual LAN and Four Expansion Slots

CMS330-H420ECIntel Comet Lake Core Micro-ATX Industrial Motherboard with H420E Chipset, Dual LAN and Four Expansion Slots

CPU: Intel Core 10th Gen Comet Lake
OS: Linux, Linux Ubuntu 20.04, Windows 11
Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
Ethernet: 2x GbE LAN [RJ45]
Serial: 1x RS232/422/485 [DB9], 9x RS232 [Board]
PCI: 2x PCI
PCIe: 1x PCIe [x16 Slot] [Gen3], 1x PCIe [x4 Slot] [Gen3]
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC

Memory: 2x DDR4 2933MHz LONG-DIMM Slots, 64GB
USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 4x USB 3.2 Gen 1 [Type A]
Storage: 4x SATA Ports

DFI

CMS330Intel 10th Gen Core Micro-ATX Embedded Motherboards with Q470E or H420E Chipset

Available in 2 variations

Datasheet

Select CMS330 Variant

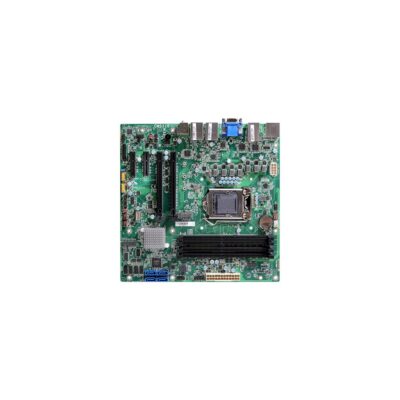

CMS310 Intel Comet Lake Core Micro-ATX Embedded Motherboard with Q470E Chipset, Dual LAN and Four Expansion Slots

CMS310-Q470ENRMIntel Comet Lake Core Micro-ATX Embedded Motherboard with Q470E Chipset, Dual LAN and Four Expansion Slots

CPU: Intel Core 10th Gen Comet Lake
Memory: 4x DDR4 2933MHz LONG-DIMM Slots, 128GB
OS: Linux, Windows 11
Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Board], 2x USB 3.2 Gen 2 [Type A], 4x USB 2.0 [Board], 4x USB 3.2 Gen 1 [Type A]
Serial: 2x RS232 [Board], 2x RS232/422/485 [Board]
M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280]
PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 2x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS, UKCA, UL

DFI

CMS310Intel Xeon W and 10th Gen Core Micro-ATX Industrial Motherboards with W480E or Q470E Chipset

Available in 2 variations

Datasheet

Select CMS310 Variant

RAP310 AMD Ryzen 9000 and 7000 AM5 Micro-ATX Industrial Motherboard with B650 Chipset, Dual 2.5GbE and Triple Display

RAP310-B650AMD Ryzen 9000 and 7000 AM5 Micro-ATX Industrial Motherboard with B650 Chipset, Dual 2.5GbE and Triple Display

CPU: AMD EPYC 4005 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Memory: 4x DDR5 5200MHz LONG-DIMM Slots, 128GB
OS: Linux, Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 4x USB 2.0 [Board], 6x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [Board], 2x RS232 [Board]
M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2260/2280]
PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4], 2x PCIe [x4 Slot] [Gen4]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS, UKCA

DFI

RAP310AMD Ryzen 9000 and 7000 AM5 Micro-ATX Industrial Motherboards with B650 Chipset and Dual 2.5GbE

Datasheet

Displaying of 46 items

View All

Beyond ATX and Micro-ATX: Industrial Motherboards

All Industrial MotherboardsEvery industrial motherboard we supply, from 4x4 and NUC boards to Mini-ITX, ATX and Micro-ATX.

4x4 and NUC MotherboardsSmall, efficient boards for compact industrial PCs and gateways.

AMD MotherboardsAMD Ryzen boards in 4x4 and Mini-ITX formats, for graphics-heavy controllers and compact edge systems.

Industrial Mini-ITX MotherboardsIndustrial boards with a full-length expansion slot for add-in cards.

// Embedded Board Specialists

Speak to an Industrial ATX Motherboard Specialist.

Tell us what the board will go into, the interfaces you need to connect and how long the design must stay in production. We will recommend the right form factor and processor, then configure and test it before it ships.

Phone · USA +1 407 214 9446

Email sales@things-embedded.com
