Displaying of 136 items

View All

ICX610 3rd Gen Intel Xeon Scalable Ice Lake-SP ATX Server Board with C621A Chipset, Dual 10GbE and Six Expansion Slots

ICX610-C621A3rd Gen Intel Xeon Scalable Ice Lake-SP ATX Server Board with C621A Chipset, Dual 10GbE and Six Expansion Slots

CPU: Intel 3rd Gen Xeon Scalable Ice Lake-SP
Memory: 8x DDR4 3200MHz LONG-DIMM Slots, 512GB
OS: Linux, Linux Ubuntu 20.04
Display Outputs: 1x VGA
Ethernet: 2x 10 GbE LAN [RJ45], 3x GbE LAN [RJ45]
USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Board], 3x USB 2.0 [Board], 4x USB 3.1 Gen 1 [Type A]
Serial: 1x RS232 [Board], 1x RS232 [DB9]
M.2: 1x M.2 M-Key [PCIe x4/SATA] [2280]
PCIe: 3x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4], 3x PCIe [x8 Slot] [Gen4]
Storage: 1x M.2 SSD, 6x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: 0°C to 55°C [32°F to 131°F]
Certification: CE, FCC, RoHS, UKCA

DFI

ICX6103rd Gen Intel Xeon Scalable Ice Lake-SP ATX Server Motherboards with Dual 10GbE and PCIe Gen4

Datasheet

CS650 Intel Coffee Lake Core ATX Embedded Motherboard with Q370 Chipset, Dual LAN and Seven Expansion Slots

CS650-Q370CRMIntel Coffee Lake Core ATX Embedded Motherboard with Q370 Chipset, Dual LAN and Seven Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
OS: Linux, Windows 11
Display Outputs: 1x VGA, 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Board], 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Board]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280]
mPCIe: 1x mPCIe [PCIe/USB/SATA]
PCI: 1x PCI
PCIe: 1x PCIe [x1 Slot] [Gen3], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 3x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, KC, RoHS, UL

DFI

CS650Intel Xeon E and Coffee Lake Core Industrial ATX Mainboards with C246 or Q370 Chipset and Seven Expansion Slots

Available in 2 variations

Datasheet

Select CS650 Variant

CS632 Intel Coffee Lake Core Industrial ATX Motherboard with Q370 Chipset, Dual LAN and Six Expansion Slots

CS632-Q370CRMIntel Coffee Lake Core Industrial ATX Motherboard with Q370 Chipset, Dual LAN and Six Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
OS: Linux
Display Outputs: 1x VGA, 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 3.1 Gen 2 [Board], 5x USB 2.0 [Board], 2x USB 2.0 [Type A], 4x USB 3.1 Gen 1 [Type A]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1x mPCIe [PCIe/USB/SATA]
PCI: 2x PCI
PCIe: 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 3x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, RoHS

DFI

CS632Intel Xeon E and 8th and 9th Gen Core Industrial ATX Motherboards with Six COM Ports and Six Expansion Slots

Available in 2 variations

Datasheet

Select CS632 Variant

CS631 Intel Coffee Lake Core ATX Industrial Motherboard with Q370 Chipset, Dual LAN and Seven Expansion Slots

CS631-Q370CRMIntel Coffee Lake Core ATX Industrial Motherboard with Q370 Chipset, Dual LAN and Seven Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
OS: Linux
Display Outputs: 1x VGA, 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Board], 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Board]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
M.2: 1x M.2 M-Key [PCIe x2 Gen3] [2242/2260/2280]
mPCIe: 2x mPCIe [SATA/USB/PCIe]
PCI: 1x PCI
PCIe: 1x PCIe [x1 Slot] [Gen3], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 3x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 5x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, RoHS

DFI

CS631Intel Xeon E and Coffee Lake Core ATX Embedded Motherboards with C246 or Q370 Chipset

Available in 2 variations

Datasheet

Select CS631 Variant

CS630 Intel Coffee Lake Core Industrial ATX Mainboard with Q370 Chipset, Dual LAN and Seven Expansion Slots

CS630-Q370CRMIntel Coffee Lake Core Industrial ATX Mainboard with Q370 Chipset, Dual LAN and Seven Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
OS: Linux, Windows 11
Display Outputs: 1x Display Port, 1x DVI, 1x VGA
Ethernet: 2x GbE LAN [RJ45]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
PCI: 5x PCI
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, KC, RoHS, UKCA

Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
USB: 2x USB 3.1 Gen 2 [Board], 2x USB 2.0 [Type A], 4x USB 2.0 [Board], 4x USB 3.1 Gen 1 [Type A]
M.2: 1x M.2 M-Key [PCIe x4 Gen3/SATA] [2260/2280]
mPCIe: 1x mPCIe [PCIe/SATA]
PCIe: 1x PCIe [x16 Slot] [Gen3], 1x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports

DFI

CS630Intel 8th and 9th Gen Core ATX Industrial Motherboards with H310 or Q370 Chipset and Seven Expansion Slots

Available in 2 variations

Datasheet

Select CS630 Variant

CS350 Intel Coffee Lake Core Micro-ATX Embedded Motherboard with Q370 Chipset, Dual LAN and Four COM Ports

CS350-Q370NRMIntel Coffee Lake Core Micro-ATX Embedded Motherboard with Q370 Chipset, Dual LAN and Four COM Ports

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
OS: Linux
Display Outputs: 1x Display Port, 1x DVI, 1x HDMI
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 3.1 Gen 2 [Board], 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Board]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 2x RS232 [Board]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 2x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 6x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

DFI

CS350Intel Xeon E and 8th and 9th Gen Core Micro-ATX Industrial Motherboards with C246 or Q370 Chipset

Available in 2 variations

Datasheet

Select CS350 Variant

CS332 Intel Coffee Lake Core Micro-ATX Industrial Motherboard with Q370 Chipset, Quad LAN and Four Expansion Slots

CS332-Q370Intel Coffee Lake Core Micro-ATX Industrial Motherboard with Q370 Chipset, Quad LAN and Four Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
OS: Linux
Display Outputs: 1x VGA, 2x Display Ports
Ethernet: 4x GbE LAN [RJ45]
Serial: 1x RS232/422/485 [DB9], 3x RS232 [Board]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1x mPCIe [PCIe/USB]
PCI: 1x PCI
PCIe: 1x PCIe [x16 Slot] [Gen3], 2x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, RoHS, UL

USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 2x USB 3.2 Gen 1 [Type A], 4x USB 2.0 [Board]

DFI

CS332Intel Coffee Lake Core Micro-ATX Motherboards with C246 or Q370 Chipset and Quad LAN

Available in 2 variations

Datasheet

Select CS332 Variant

CS331 Intel Coffee Lake Core Industrial Micro-ATX Motherboard with Q370 Chipset, Dual LAN and Four Expansion Slots

CS331-Q370NRMIntel Coffee Lake Core Industrial Micro-ATX Motherboard with Q370 Chipset, Dual LAN and Four Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
OS: Linux
Display Outputs: 1x Display Port, 1x DVI, 1x HDMI
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 3.1 Gen 2 [Board], 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Board]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 2x RS232 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
mPCIe: 1x mPCIe [PCIe/USB/SATA]
PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 2x PCIe [x4 Slot] [Gen3]
Power: ATX Power Supply [8+24 Pin]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, KC, RoHS

Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
Storage: 1x M.2 SSD, 5x SATA Ports

DFI

CS331Intel Xeon E and Coffee Lake Core Micro-ATX Embedded Motherboards with C246 or Q370 Chipset

Available in 2 variations

Datasheet

Select CS331 Variant

CS330 Intel Coffee Lake Core Micro-ATX Embedded Motherboard with Q370 Chipset, Dual LAN and Four Expansion Slots

CS330-Q370CRMIntel Coffee Lake Core Micro-ATX Embedded Motherboard with Q370 Chipset, Dual LAN and Four Expansion Slots

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
OS: Linux
Display Outputs: 1x Display Port, 1x DVI, 1x VGA
Ethernet: 2x GbE LAN [RJ45]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
PCI: 2x PCI
Storage: 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, KC, RoHS, UL

Memory: 4x DDR4 2666MHz LONG-DIMM Slots, 128GB
USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Board], 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Board]
mPCIe: 1x mPCIe [PCIe/USB/SATA]
PCIe: 1x PCIe [x16 Slot] [Gen3], 1x PCIe [x4 Slot] [Gen3]

DFI

CS330Intel 8th and 9th Gen Core Micro-ATX Industrial Motherboards with H310 or Q370 Chipset and Six COM Ports

Available in 2 variations

Datasheet

Select CS330 Variant

CS181 Intel 8th and 9th Gen Core Industrial Mini-ITX Motherboard with H310 Chipset and Quad LAN

CS181-H310NBIntel 8th and 9th Gen Core Industrial Mini-ITX Motherboard with H310 Chipset and Quad LAN

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 2x DDR4 2666MHz SO-DIMM Slots, 64GB
Display Outputs: 1x eDP, 5x Display Ports
Ethernet: 4x GbE LAN [RJ45]
USB: 2x USB 2.0 [Board], 4x USB 3.2 Gen 1 [Type A]
Serial: 2x RS232/422/485 [Board]
M.2: 1x M.2 B-Key [SATA] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1] [2280]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: 19V DC [Barrel Connector]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

DFI

CS181Intel 8th and 9th Gen Core Industrial Mini-ITX Motherboards with H310 Chipset and Quad LAN

Datasheet

CS170 Intel LGA 1151 Core Mini-ITX Mainboard with C246 Chipset and Dual LAN

CS170-C246DBIntel LGA 1151 Core Mini-ITX Mainboard with C246 Chipset and Dual LAN

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 2x DDR4 2666MHz SO-DIMM Slots, 32GB
OS: Linux
Display Outputs: 1x LVDS, 1x VGA, 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
Serial: 2x RS232 [DB9]
PCIe: 1x PCIe [x16 Slot] [Gen3]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: ATX Power Supply [4+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

USB: 2x USB 2.0 [Board], 2x USB 3.1 Gen 2 [Type A], 4x USB 3.1 Gen 1 [Type A]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]

USB: 2x USB 2.0 [Board], 2x USB 3.1 Gen 2 [Type A], 4x USB 3.1 Gen 1 [Type A]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]

USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 4x USB 3.1 Gen 1 [Type A]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1] [2280]

DFI

CS170Intel 8th and 9th Gen Core Mini-ITX Embedded Motherboards with H310, Q370 or C246 Chipset and LVDS

Available in 3 variations

Datasheet

Select CS170 Variant

CS103 Intel LGA 1151 Core Thin ITX Motherboard with C246 Chipset, Dual LAN and 9 to 36 V DC Input

CS103-C246Intel LGA 1151 Core Thin ITX Motherboard with C246 Chipset, Dual LAN and 9 to 36 V DC Input

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 2x DDR4 2666MHz SO-DIMM Slots, 32GB
OS: Linux
Display Outputs: 1x LVDS, 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
Serial: 2x RS232 [Board], 2x RS232/422/485 [Board]
PCIe: 1x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: 9-36V DC [4-Pin], 9-36V DC [Barrel Connector]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

USB: 4x USB 2.0 [Board], 4x USB 3.1 Gen 2 [Type A]
M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]

USB: 4x USB 2.0 [Board], 4x USB 3.1 Gen 2 [Type A]
M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]

USB: 4x USB 2.0 [Board], 4x USB 3.1 Gen 1 [Type A]
M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x1] [2280]

DFI

CS103Intel Coffee Lake Core Thin Mini-ITX SBCs with 9 to 36 V DC Input and Dual LAN

Available in 3 variations

Datasheet

Select CS103 Variant

CS101 Intel LGA 1151 Core Thin Mini-ITX SBC with C246 Chipset, Dual LAN and 12 V DC Input

CS101-C246Intel LGA 1151 Core Thin Mini-ITX SBC with C246 Chipset, Dual LAN and 12 V DC Input

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 2x DDR4 2666MHz SO-DIMM Slots, 32GB
OS: Linux
Display Outputs: 1x eDP, 1x HDMI, 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
Serial: 2x RS232 [Board], 2x RS232/422/485 [Board]
PCIe: 1x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: 12V DC [4-Pin], 12V DC [Barrel Connector]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, RoHS, UKCA, UL

USB: 4x USB 2.0 [Board], 4x USB 3.1 Gen 2 [Type A]
M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
mPCIe: 1x mPCIe [SATA]

USB: 4x USB 2.0 [Board], 4x USB 3.1 Gen 2 [Type A]
M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
mPCIe: 1x mPCIe [SATA]

USB: 4x USB 2.0 [Board], 4x USB 3.1 Gen 1 [Type A]
M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x1] [2280]

DFI

CS101Intel Coffee Lake Core Thin Mini-ITX Motherboards with 12 V DC Input and Dual LAN

Available in 3 variations

Datasheet

Select CS101 Variant

CS100 Intel Coffee Lake Core Industrial Mini-ITX Motherboard with C246 Chipset and Dual LAN

CS100-C246DRMIntel Coffee Lake Core Industrial Mini-ITX Motherboard with C246 Chipset and Dual LAN

CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
Memory: 2x DDR4 2666MHz SO-DIMM Slots, 32GB
OS: Linux
Display Outputs: 1x LVDS, 1x VGA, 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
Serial: 1x RS232 [Board], 1x RS232 [DB9]
PCIe: 1x PCIe [x16 Slot] [Gen3]
Storage: 3x SATA Ports
Power: ATX Power Supply [4+24 Pin]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, KC, RoHS, UKCA

USB: 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Type A]
mPCIe: 1x mPCIe [PCIe/SATA]

USB: 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Type A]
mPCIe: 1x mPCIe [PCIe/SATA]

USB: 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Type A]
mPCIe: 1x mPCIe [PCIe/SATA]

USB: 2x USB 3.1 Gen 1 [Type A], 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Type A]
mPCIe: 1x mPCIe [PCIe/SATA]

USB: 4x USB 2.0 [Type A], 4x USB 3.1 Gen 1 [Type A]

DFI

CS100Intel 8th and 9th Gen Core Mini-ITX Motherboards with H310, Q370 or C246 Chipset and Dual LAN

Available in 5 variations

Datasheet

Select CS100 Variant

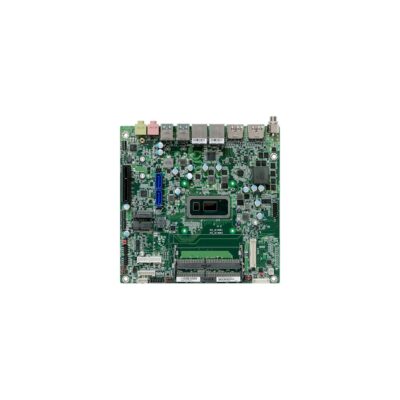

WL173 Intel Celeron 4305UE Mini-ITX Embedded Motherboard with 9 to 36 V DC Input and Dual GbE

WL173-NB-4305UEIntel Celeron 4305UE Mini-ITX Embedded Motherboard with 9 to 36 V DC Input and Dual GbE

OS: Linux
Display Outputs: 1x LVDS, 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
USB: 4x USB 2.0 [Board], 4x USB 3.1 Gen 2 [Type A]
Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280]
PCIe: 1x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: 9-36V DC [4-Pin], 9-36V DC [Barrel Connector]

CPU: Intel Celeron 4000 Series Whiskey Lake
Memory: 2x DDR4 2133MHz SO-DIMM Slots, 32GB
Temp: -5°C to 65°C [23°F to 149°F]

CPU: Intel Core 8th Gen Whiskey Lake
Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
Temp: -5°C to 65°C [23°F to 149°F]

CPU: Intel Core 8th Gen Whiskey Lake
Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
Temp: -20°C to 70°C [-4°F to 158°F]

CPU: Intel Core 8th Gen Whiskey Lake
Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
Temp: -20°C to 70°C [-4°F to 158°F]

DFI

WL173Intel 8th Gen Core Whiskey Lake Mini-ITX SBCs with 9 to 36 V DC Input and Wide Temperature Options

Available in 4 variations

Datasheet

Select WL173 Variant

Displaying of 136 items

View All

// Official DFI Distributor

Speak to a DFI Specialist.

Things Embedded is an official DFI distributor and integration partner in the USA. Tell us the form factor, the environment and the interfaces you have to connect, and we will point you to the right family, then configure, image and test the board or system before it ships.

Phone · USA +1 407 214 9446

Email sales@things-embedded.com
