Browse DFI's Latest Products
-

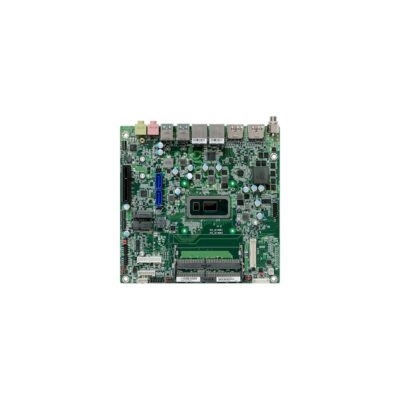

WL171-NB-4305UE
WL171 with dual-core Intel Celeron 4305UE, 12~V DC and triple display -
WL171-NB-8145UE
WL171 with dual-core Intel Core i3-8145UE, 12~V DC and triple display -
WL171-NE-8365UE
WL171 with quad-core Intel Core i5-8365UE, vPro and -20 to 70~°C -
WL171-NE-8665UE
WL171 with Intel Core i7-8665UE, vPro and -20 to 70~°C
- OS: Linux
- Display Outputs: 1x LVDS, 2x Display Ports
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 2.0 [Board], 4x USB 3.1 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280]
- PCIe: 1x PCIe [x4 Slot] [Gen3]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 12V DC [4-Pin], 12V DC [Barrel Connector]
- CPU: Intel Celeron 4000 Series Whiskey Lake
- Memory: 2x DDR4 2133MHz SO-DIMM Slots, 32GB
- Temp: -5°C to 65°C [23°F to 149°F]
-
CS551-Q370-ECA
CS551 with Intel Q370, USB 3.1 Gen 2 and -30 to 80~°C -
CS551-C246-BCA
CS551 with Intel C246, ECC support, USB 3.1 Gen 2 and -5 to 65~°C -
CS551-C246-ECA
CS551 with Intel C246, ECC support and wide temperature -30 to 80~°C -
CS551-H310-BCA
CS551 with Intel H310, 4x USB 3.1 Gen 1 and -5 to 65~°C -
CS551-H310-ECA
CS551 with Intel H310, 4x USB 3.1 Gen 1 and wide temperature -30 to 80~°C -
CS551-Q370-BCA
CS551 with Intel Q370, USB 3.1 Gen 2, PCIe x4 M.2 and -5 to 65~°C
- CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
- Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
- OS: Linux
- Display Outputs: 1x LVDS, 2x Display Ports
- Ethernet: 2x GbE LAN [RJ45]
- Serial: 1x RS232/422/485 [Board]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin], 12V DC [Barrel Connector]
- Certification: CE, FCC, RoHS, UKCA
- USB: 2x USB 2.0 [Board], 4x USB 3.1 Gen 2 [Type A]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2280]
- Temp: -30°C to 80°C [-22°F to 176°F]
-
ALF51-TN-86E40
ALF51 with quad-core Intel Atom x5-E3940, 8~GB LPDDR4 and -40 to 85~°C -
ALF51-BN-26E30
ALF51 with dual-core Intel Atom x5-E3930 at 6.5~W, 2~GB LPDDR4 and 0 to 60~°C -
ALF51-BN-26E40
ALF51 with quad-core Intel Atom x5-E3940, 2~GB LPDDR4 and 0 to 60~°C -
ALF51-BN-26N50
ALF51 with Intel Celeron N3350, 2~GB LPDDR4 and 64~GB eMMC -
ALF51-BN-46E40
ALF51 with quad-core Intel Atom x5-E3940, 4~GB LPDDR4 and 0 to 60~°C -
ALF51-BN-86E40
ALF51 with quad-core Intel Atom x5-E3940, 8~GB LPDDR4 and 0 to 60~°C -
ALF51-EN-26E30
ALF51 with dual-core Intel Atom x5-E3930 and wide temperature -20 to 70~°C -
ALF51-EN-26E40
ALF51 with quad-core Intel Atom x5-E3940 and -20 to 70~°C -
ALF51-TN-26E30
ALF51 with dual-core Intel Atom x5-E3930 and extended temperature -40 to 85~°C -
ALF51-TN-26E40
ALF51 with quad-core Intel Atom x5-E3940 and -40 to 85~°C -
ALF51-TN-46E40
ALF51 with quad-core Intel Atom x5-E3940, 4~GB LPDDR4 and -40 to 85~°C
- OS: Linux
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Board]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 64GB eMMC
- Power: 12V DC [Terminal Block]
- Certification: CE, FCC, RoHS
- CPU: Intel Atom X Series Apollo Lake
- Memory: 8GB Soldered On-board
- Temp: -40°C to 85°C [-40°F to 185°F]
-
AL553-TN-E3950
AL553 with quad-core Intel Atom x7-E3950, 9 to 36~V DC and -40 to 85~°C -
AL553-BN-E3930
AL553 with dual-core Intel Atom x5-E3930, 9 to 36~V DC and dual GbE -
AL553-BN-E3950
AL553 with quad-core Intel Atom x7-E3950, 9 to 36~V DC and dual GbE -
AL553-BN-N3350
AL553 with dual-core Intel Celeron N3350, 9 to 36~V DC and dual GbE -
AL553-EN-E3950
AL553 with quad-core Intel Atom x7-E3950, 9 to 36~V DC and -20 to 70~°C
- Memory: 1x DDR3L 1866MHz SO-DIMM Slot, 8GB
- OS: Linux
- Display Outputs: 1x HDMI, 1x LVDS, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242], 1x M.2 E-Key [USB/PCIe] [2230]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 9-36V DC [4-Pin], 9-36V DC [Barrel Connector]
- Certification: CE, FCC, RoHS, UKCA
- CPU: Intel Atom X Series Apollo Lake
- Temp: -40°C to 85°C [-40°F to 185°F]
-
AL551-TN-E3950
AL551 with quad-core Intel Atom x7-E3950, triple display and -40 to 85~°C -
AL551-BN-E3930
AL551 with dual-core Intel Atom x5-E3930, triple display and dual GbE -
AL551-BN-E3940
AL551 with quad-core Intel Atom x5-E3940, triple display and dual GbE -
AL551-BN-E3950
AL551 with quad-core Intel Atom x7-E3950, triple display and dual GbE -
AL551-BN-N3350
AL551 with dual-core Intel Celeron N3350, triple display and dual GbE -
AL551-BN-N4200
AL551 with quad-core Intel Pentium N4200, triple display and dual GbE -
AL551-EN-E3950
AL551 with quad-core Intel Atom x7-E3950, triple display and -20 to 70~°C
- Memory: 1x DDR3L 1866MHz SO-DIMM Slot, 8GB
- OS: Linux
- Display Outputs: 1x Display Port, 1x LVDS, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A]
- Serial: 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin], 12V DC [Barrel Connector]
- Certification: CE, FCC, RoHS, UKCA
- CPU: Intel Atom X Series Apollo Lake
- Temp: -40°C to 85°C [-40°F to 185°F]
-
AL253-BN-20N00
AL253 with quad-core Intel Pentium N4200, 2~GB memory down and quad GbE -
AL253-BN-20E30
AL253 with dual-core Intel Atom x5-E3930, 2~GB memory down and quad GbE -
AL253-BN-40E40
AL253 with quad-core Intel Atom x5-E3940, 4~GB memory down and quad GbE -
AL253-BN-40E50
AL253 with quad-core Intel Atom x7-E3950, 4~GB memory down and quad GbE -
AL253-TN-20E30
AL253 with dual-core Intel Atom x5-E3930, 2~GB memory down and -40 to 85~°C -
AL253-TN-40E40
AL253 with quad-core Intel Atom x5-E3940 and -40 to 85~°C -
AL253-TN-40E50
AL253 with quad-core Intel Atom x7-E3950, quad GbE and -40 to 85~°C
- OS: Linux
- Display Outputs: 1x Display Port, 1x VGA
- Ethernet: 4x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 3.1 Gen 1 [Type A]
- Serial: 4x RS232/422/485 [Board]
- M.2: 1x M.2 E-Key [USB/PCIe] [2230]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x SATA Port
- Power: 9-36V DC [Barrel Connector]
- Certification: CE, FCC, RoHS, UKCA
- CPU: Intel Pentium N Series Apollo Lake
- Memory: 1x DDR3L 1866MHz SO-DIMM Slot, 8GB, 2GB Soldered On-board
- Temp: 0°C to 60°C [32°F to 140°F]
- Memory: 2x DDR3L 1866MHz SO-DIMM Slot, 8GB
- OS: Linux
- Display Outputs: 1x Display Port, 1x eDP, 1x LVDS, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 5x USB 2.0 [Board], 4x USB 3.0 [Type A]
- Serial: 2x RS232/422/485 [Board], 4x RS232 [Board]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- PCIe: 1x PCIe [x1 Slot] [Gen2]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 15-36V DC [4-Pin], 15-36V DC [Barrel Connector]
- Certification: CE, FCC, RoHS, UL
- CPU: Intel Atom X Series Apollo Lake
- Temp: -40°C to 85°C [-40°F to 185°F]
-

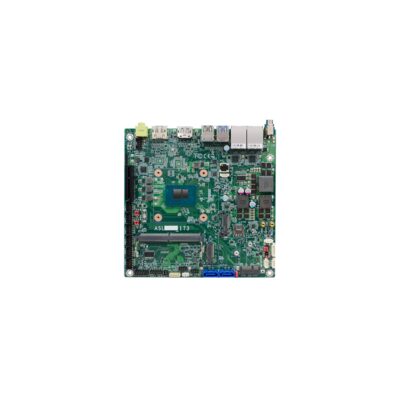

AL171-CT-E3950
AL171 with Intel Atom x7-E3950, 12~V DC and -40 to 85~°C -
AL171-CB-E3950
AL171 with Intel Atom x7-E3950, 12~V DC input and four display connectors -
AL171-CB-N4200
AL171 with Intel Pentium N4200, 12~V DC input and four display connectors -
AL171-CT-E3930
AL171 with dual-core Intel Atom x5-E3930, 12~V DC and -40 to 85~°C
- Memory: 2x DDR3L 1866MHz SO-DIMM Slot, 8GB
- OS: Linux
- Display Outputs: 1x Display Port, 1x eDP, 1x LVDS, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 5x USB 2.0 [Board], 4x USB 3.0 [Type A]
- Serial: 2x RS232/422/485 [Board], 4x RS232 [Board]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- PCIe: 1x PCIe [x1 Slot] [Gen2]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 12V DC [4-Pin], 12V DC [Barrel Connector]
- Certification: CE, FCC, RoHS, UL
- CPU: Intel Atom X Series Apollo Lake
- Temp: -40°C to 85°C [-40°F to 185°F]
-

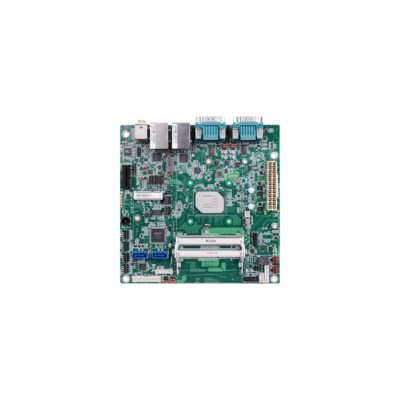

AL170-CB-E3950
AL170 with Intel Atom x7-E3950, two DP++ outputs, LVDS and dual GbE -
AL170-CB-E3940
AL170 with Intel Atom x5-E3940, two DP++ outputs and LVDS -
AL170-CB-N3350
AL170 with dual-core Intel Celeron N3350, two DP++ outputs and eDP -
AL170-CB-N4200
AL170 with Intel Pentium N4200, two DP++ outputs, eDP and dual GbE -
AL170-CT-E3930
AL170 with dual-core Intel Atom x5-E3930 at 6.5~W and -40 to 85~°C -
AL170-CT-E3940
AL170 with Intel Atom x5-E3940, VGA, DP++, LVDS and -40 to 85~°C -
AL170-CT-E3950
AL170 with Intel Atom x7-E3950, dual GbE, LVDS and -40 to 85~°C
- Memory: 2x DDR3L 1866MHz SO-DIMM Slot, 8GB
- OS: Linux
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.0 [Type A], 6x USB 2.0 [Board]
- Serial: 2x RS232/422/485 [DB9], 4x RS232 [Board]
- M.2: 1x M.2 M-Key [PCIe/SATA] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- PCIe: 1x PCIe [x1 Slot] [Gen2]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: ATX Power Supply [24 Pin]
- CPU: Intel Atom X Series Apollo Lake
- Display Outputs: 1x LVDS, 2x Display Ports
- Temp: 0°C to 60°C [32°F to 140°F]
-
TGU173-IB-6305E
TGU173 with Intel Celeron 6305E at 15~W, 9 to 36~V DC and triple LAN -
TGU173-IB-1115G4E
TGU173 with Intel Core i3-1115G4E, 9 to 36~V DC and triple LAN -
TGU173-IE-1145GRE
TGU173 with Intel Core i5-1145GRE, 9 to 36~V DC and -20 to 70~°C -
TGU173-IE-1185GRE
TGU173 with Intel Core i7-1185GRE, 9 to 36~V DC and -20 to 70~°C
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x eDP, 1x HDMI, 1x LVDS, 1x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45], 2x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type C], 4x USB 2.0 [Board], 4x USB 3.1 Gen 2 [Type A]
- Serial: 2x RS232 [Board], 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.1 Gen 1/SATA] [2242/3042/3052], 1x M.2 E-Key [USB] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280]
- PCIe: 1x PCIe [x4 Slot] [Gen3]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 9-36V DC [4-Pin], 9-36V DC [Barrel Connector]
- Certification: CE, FCC, RoHS, UKCA
- CPU: Intel Celeron 6000 Series Tiger Lake
- Temp: -5°C to 65°C [23°F to 149°F]
-
TGU171-IB-6305E
TGU171 with Intel Celeron 6305E at 15~W, triple LAN and five display outputs -
TGU171-IB-1115G4E
TGU171 with Intel Core i3-1115G4E, triple LAN and five display outputs -
TGU171-IE-1145GRE
TGU171 with Intel Core i5-1145GRE, Iris Xe, triple LAN and -20 to 70~°C -
TGU171-IE-1185GRE
TGU171 with Intel Core i7-1185GRE, Iris Xe, triple LAN and -20 to 70~°C
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x eDP, 1x HDMI, 1x LVDS, 1x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45], 2x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type C], 4x USB 2.0 [Board], 4x USB 3.1 Gen 2 [Type A]
- Serial: 2x RS232 [Board], 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.1 Gen 1/SATA] [2242/3042/3052], 1x M.2 E-Key [USB] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280]
- PCIe: 1x PCIe [x4 Slot] [Gen3]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 12V DC [4-Pin], 12V DC [Barrel Connector]
- Certification: CE, FCC, RoHS, UKCA
- CPU: Intel Celeron 6000 Series Tiger Lake
- Temp: -5°C to 65°C [23°F to 149°F]
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB, 4GB Soldered On-board, 8GB Soldered On-board
- OS: Linux
- Display Outputs: 1x Display Port, 1x VGA
- Serial: 2x RS232 [Board], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB 3.0/SIM] [3042/3052], 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [USB 2.0/SATA] [2280]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 9-36V DC [4-Pin], 9-36V DC [Barrel Connector]
- Certification: CE, FCC
- CPU: Intel Atom X Series Elkhart Lake
- Ethernet: 1x 2.5 GbE LAN [RJ45], 3x GbE LAN [RJ45]
- USB: 3x USB 2.0 [Board], 2x USB 3.1 [Type A]
- Temp: -40°C to 80°C [-40°F to 176°F]
-
EHL051-BCD-N6210
EHL051 with Intel Celeron N6210, two cores at 6.5~W, HDMI and LVDS -
EHL051-BCD-J6412
EHL051 with Intel Celeron J6412, four cores, HDMI and LVDS, -5 to 65~°C -
EHL051-TCD-6211E
EHL051 with Intel Atom x6211E, two cores at 6~W and -40 to 85~°C -
EHL051-TCD-6214RE
EHL051 with Intel Atom x6214RE, two cores at 6~W and -40 to 85~°C -
EHL051-TCD-6413E
EHL051 with Intel Atom x6413E, four cores at 9~W and -40 to 85~°C -
EHL051-TCD-6416RE
EHL051 with Intel Atom x6416RE, four cores at 9~W and -40 to 85~°C -
EHL051-TCD-6425E
EHL051 with Intel Atom x6425E, four cores up to 3.0~GHz and -40 to 85~°C -
EHL051-TCD-6425RE
EHL051 with Intel Atom x6425RE, four cores, in-band ECC and -40 to 85~°C
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 11
- Display Outputs: 1x HDMI, 1x LVDS
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe/USB 3.0/SIM] [2242/3042], 1x M.2 E-Key [USB/PCIe] [2230]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [Terminal Block]
- Certification: CE, FCC, KC, RoHS, UKCA
- CPU: Intel Celeron N Series Elkhart Lake
- Temp: -5°C to 65°C [23°F to 149°F]
- CPU: Intel Core 10th Gen Comet Lake
- Memory: 4x DDR4 2933MHz LONG-DIMM Slots, 128GB
- OS: Linux
- Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A], 2x USB 3.2 Gen 2 [Board], 2x USB 3.2 Gen 2 [Type A], 3x USB 2.0 [Board], 4x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
- PCI: 1x PCI
- PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 4x PCIe [x4 Slot] [Gen3]
- Storage: 1x M.2 SSD, 4x SATA Ports
- Power: ATX Power Supply [8+24 Pin]
- Temp: -5°C to 65°C [23°F to 149°F]
- Certification: CE, FCC, RoHS, UKCA
- CPU: Intel Core 10th Gen Comet Lake
- OS: Linux, Linux Ubuntu 20.04, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
- PCI: 5x PCI
- PCIe: 1x PCIe [x16 Slot] [Gen3], 1x PCIe [x4 Slot] [Gen3]
- Power: ATX Power Supply [8+24 Pin]
- Temp: -5°C to 65°C [23°F to 149°F]
- Certification: CE, FCC, RoHS, UKCA
- Memory: 2x DDR4 2933MHz LONG-DIMM Slots, 64GB
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 4x USB 3.2 Gen 1 [Type A]
- M.2: 1x M.2 M-Key [SATA] [2242/2260/2280]
- Storage: 1x M.2 SSD, 4x SATA Ports
// Official DFI Distributor
Speak to a DFI Specialist.
Things Embedded is an official DFI distributor and integration partner in the USA. Tell us the form factor, the environment and the interfaces you have to connect, and we will point you to the right family, then configure, image and test the board or system before it ships.
Phone · USA
+1 407 214 9446
