Displaying of 136 items

View All

CMS630 Intel Comet Lake Core ATX Industrial Motherboard with Q470E Chipset, Dual LAN and Seven Expansion Slots

CMS630-Q470ECRMIntel Comet Lake Core ATX Industrial Motherboard with Q470E Chipset, Dual LAN and Seven Expansion Slots

CPU: Intel Core 10th Gen Comet Lake
Memory: 4x DDR4 2933MHz LONG-DIMM Slots, 128GB
OS: Linux
Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 1 [Type A], 2x USB 3.2 Gen 2 [Board], 2x USB 3.2 Gen 2 [Type A], 3x USB 2.0 [Board], 4x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
PCI: 2x PCI
PCIe: 1x PCIe [x4 Slot] [x1 Signal] [Gen3], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 2x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, KC, RoHS, UKCA, UL

DFI

CMS630Intel Xeon W and 10th Gen Core ATX Industrial Motherboards with Seven Expansion Slots

Available in 2 variations

Datasheet

Select CMS630 Variant

CMS330 Intel Comet Lake Core Micro-ATX Industrial Motherboard with H420E Chipset, Dual LAN and Four Expansion Slots

CMS330-H420ECIntel Comet Lake Core Micro-ATX Industrial Motherboard with H420E Chipset, Dual LAN and Four Expansion Slots

CPU: Intel Core 10th Gen Comet Lake
OS: Linux, Linux Ubuntu 20.04, Windows 11
Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
Ethernet: 2x GbE LAN [RJ45]
Serial: 1x RS232/422/485 [DB9], 9x RS232 [Board]
PCI: 2x PCI
PCIe: 1x PCIe [x16 Slot] [Gen3], 1x PCIe [x4 Slot] [Gen3]
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC

Memory: 2x DDR4 2933MHz LONG-DIMM Slots, 64GB
USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 4x USB 3.2 Gen 1 [Type A]
Storage: 4x SATA Ports

DFI

CMS330Intel 10th Gen Core Micro-ATX Embedded Motherboards with Q470E or H420E Chipset

Available in 2 variations

Datasheet

Select CMS330 Variant

CMS310 Intel Comet Lake Core Micro-ATX Embedded Motherboard with Q470E Chipset, Dual LAN and Four Expansion Slots

CMS310-Q470ENRMIntel Comet Lake Core Micro-ATX Embedded Motherboard with Q470E Chipset, Dual LAN and Four Expansion Slots

CPU: Intel Core 10th Gen Comet Lake
Memory: 4x DDR4 2933MHz LONG-DIMM Slots, 128GB
OS: Linux, Windows 11
Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Board], 2x USB 3.2 Gen 2 [Type A], 4x USB 2.0 [Board], 4x USB 3.2 Gen 1 [Type A]
Serial: 2x RS232 [Board], 2x RS232/422/485 [Board]
M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280]
PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen3], 2x PCIe [x4 Slot] [Gen3]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS, UKCA, UL

DFI

CMS310Intel Xeon W and 10th Gen Core Micro-ATX Industrial Motherboards with W480E or Q470E Chipset

Available in 2 variations

Datasheet

Select CMS310 Variant

CMS173 Intel 10th Gen Core Industrial Mini-ITX Motherboard with Q470E Chipset, Dual LAN and 15 to 36 V DC Input

CMS173-Q470EIntel 10th Gen Core Industrial Mini-ITX Motherboard with Q470E Chipset, Dual LAN and 15 to 36 V DC Input

CPU: Intel Core 10th Gen Comet Lake
Memory: 2x DDR4 2933MHz SO-DIMM Slots, 64GB
OS: Linux, Linux Ubuntu 20.04
Display Outputs: 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
USB: 4x USB 3.2 [Type A], 8x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9]
M.2: 1x M.2 B-Key [PCIe/USB 3.0/SIM] [3042/3052], 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
PCIe: 1x PCIe [x16 Slot] [x8 Signal] [Gen3]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: 15-36V DC [Barrel Connector]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS, UKCA

DFI

CMS173Intel 10th Gen Core Industrial Mini-ITX Motherboards with Q470E Chipset and 15 to 36 V DC Input

Datasheet

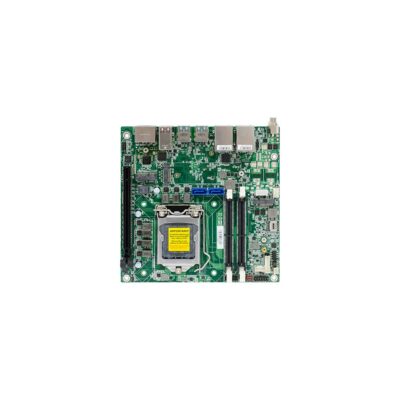

CMS171 Intel 10th Gen Core Mini-ITX Embedded Motherboard with Q470E Chipset, Dual LAN and 12 V DC Input

CMS171-Q470EIntel 10th Gen Core Mini-ITX Embedded Motherboard with Q470E Chipset, Dual LAN and 12 V DC Input

CPU: Intel Core 10th Gen Comet Lake
Memory: 2x DDR4 2933MHz SO-DIMM Slots, 64GB
OS: Linux, Linux Ubuntu 20.04
Display Outputs: 2x Display Ports
Ethernet: 2x GbE LAN [RJ45]
USB: 4x USB 3.2 [Type A], 8x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9]
M.2: 1x M.2 B-Key [PCIe/USB 3.0/SIM] [3042/3052], 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
PCIe: 1x PCIe [x16 Slot] [x8 Signal] [Gen3]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: 12V DC [Barrel Connector]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS, UKCA

DFI

CMS171Intel 10th Gen Core Mini-ITX Motherboards with Q470E Chipset and 12 V DC Input

Datasheet

CMS103 Intel LGA 1200 10th Gen Core Thin ITX Motherboard with H420E Chipset, Triple LAN and 15 to 36 V DC Input

CMS103-H420IBIntel LGA 1200 10th Gen Core Thin ITX Motherboard with H420E Chipset, Triple LAN and 15 to 36 V DC Input

CPU: Intel Core 10th Gen Comet Lake
Memory: 2x DDR4 2933MHz SO-DIMM Slots, 64GB
OS: Linux, Windows 11
Display Outputs: 1x eDP, 2x Display Ports
Ethernet: 1x 2.5 GbE LAN [RJ45], 2x GbE LAN [RJ45]
Serial: 2x RS232 [Board], 2x RS232/422/485 [Board]
PCIe: 1x PCIe [x16 Slot] [Gen3]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: 15-36V DC [4-Pin], 15-36V DC [Barrel Connector]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CB, CE, FCC, RoHS, UKCA, UL

USB: 4x USB 2.0 [Board], 4x USB 3.2 Gen 1 [Type A]
M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 1/USB 2.0] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1] [2280]

USB: 4x USB 2.0 [Board], 4x USB 3.2 Gen 2 [Type A]
M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 2/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]

USB: 4x USB 2.0 [Board], 4x USB 3.2 Gen 2 [Type A]
M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 2/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]

DFI

CMS103Intel 10th Gen Core Thin Mini-ITX SBCs with 15 to 36 V DC Input and Triple LAN

Available in 3 variations

Datasheet

Select CMS103 Variant

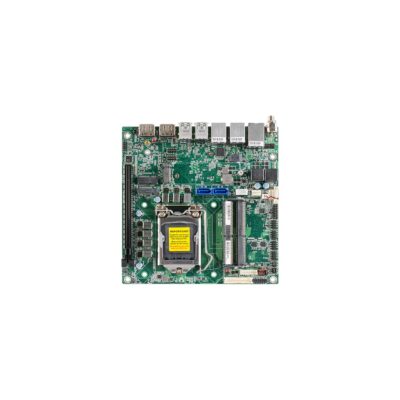

CMS101 Intel LGA 1200 10th Gen Core Thin Mini-ITX SBC with H420E Chipset, Triple LAN and 12 V DC Input

CMS101-H420IBIntel LGA 1200 10th Gen Core Thin Mini-ITX SBC with H420E Chipset, Triple LAN and 12 V DC Input

CPU: Intel Core 10th Gen Comet Lake
Memory: 2x DDR4 2933MHz SO-DIMM Slots, 64GB
OS: Linux, Windows 11
Display Outputs: 1x eDP, 2x Display Ports
Ethernet: 1x 2.5 GbE LAN [RJ45], 2x GbE LAN [RJ45]
Serial: 2x RS232 [Board], 2x RS232/422/485 [Board]
PCIe: 1x PCIe [x16 Slot] [Gen3]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: 12V DC [4-Pin], 12V DC [Barrel Connector]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CB, CE, FCC, RoHS, UKCA, UL

USB: 4x USB 2.0 [Board], 4x USB 3.2 Gen 1 [Type A]
M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 1/USB 2.0] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1] [2280]

USB: 4x USB 2.0 [Board], 4x USB 3.2 Gen 2 [Type A]
M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 2/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]

USB: 4x USB 2.0 [Board], 4x USB 3.2 Gen 2 [Type A]
M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 2/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]

DFI

CMS101Intel 10th Gen Core Thin Mini-ITX Motherboards with Triple LAN and 12 V DC Input

Available in 3 variations

Datasheet

Select CMS101 Variant

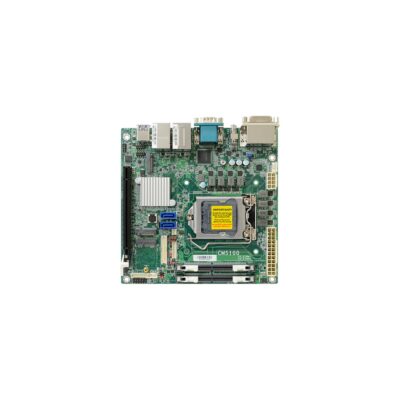

CMS100 Intel LGA 1200 10th Gen Core Mini-ITX SBC with H420E Chipset and Dual LAN

CMS100-H420IBIntel LGA 1200 10th Gen Core Mini-ITX SBC with H420E Chipset and Dual LAN

CPU: Intel Core 10th Gen Comet Lake
Memory: 2x DDR4 2933MHz SO-DIMM Slots, 64GB
OS: Linux, Windows 11
Display Outputs: 1x Display Port, 1x DVI, 1x eDP, 1x HDMI
Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
Serial: 2x RS232/422/485 [DB9]
PCIe: 1x PCIe [x16 Slot] [Gen3]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CB, CE, FCC, RoHS, UKCA, UL

USB: 1x USB 2.0 [Type A], 2x USB 2.0 [Board], 5x USB 3.2 Gen 1 [Type A]
M.2: 1x M.2 B-Key [PCIe x1 Gen3/SATA] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1] [2280]

USB: 4x USB 2.0 [Board], 6x USB 3.2 Gen 2 [Type A]
M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 1/USB 2.0/SATA] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]

USB: 4x USB 2.0 [Board], 6x USB 3.2 Gen 2 [Type A]
M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 1/USB 2.0/SATA] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]

DFI

CMS100Intel 10th Gen Core and Xeon W Mini-ITX Motherboards with W480E, Q470E or H420E Chipset and Dual LAN

Available in 3 variations

Datasheet

Select CMS100 Variant

RNO171 AMD Ryzen Embedded V2516 Mini-ITX Mainboard with Dual GbE and Quad Display

RNO171-CB-V2516AMD Ryzen Embedded V2516 Mini-ITX Mainboard with Dual GbE and Quad Display

CPU: AMD Ryzen V2000 Series
Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
OS: Linux
Display Outputs: 4x Display Ports
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A], 4x USB 2.0 [Board]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9], 4x RS232 [Board]
M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
PCIe: 1x PCIe [x16 Slot] [x8 Signal] [Gen3]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: 12V DC [4-Pin], 12V DC [Barrel Connector]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS, UKCA

DFI

RNO171AMD Ryzen Embedded V2000 Mini-ITX SBCs with Dual GbE and Quad Display

Available in 4 variations

Datasheet

Select RNO171 Variant

RAP310 AMD Ryzen 9000 and 7000 AM5 Micro-ATX Industrial Motherboard with B650 Chipset, Dual 2.5GbE and Triple Display

RAP310-B650AMD Ryzen 9000 and 7000 AM5 Micro-ATX Industrial Motherboard with B650 Chipset, Dual 2.5GbE and Triple Display

CPU: AMD EPYC 4005 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Memory: 4x DDR5 5200MHz LONG-DIMM Slots, 128GB
OS: Linux, Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 4x USB 2.0 [Board], 6x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [Board], 2x RS232 [Board]
M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2260/2280]
PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4], 2x PCIe [x4 Slot] [Gen4]
Storage: 1x M.2 SSD, 4x SATA Ports
Power: ATX Power Supply [8+24 Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS, UKCA

DFI

RAP310AMD Ryzen 9000 and 7000 AM5 Micro-ATX Industrial Motherboards with B650 Chipset and Dual 2.5GbE

Datasheet

PCSF51 AMD Ryzen Embedded R2312 Femto-ITX Single Board Computer with 4GB DDR4 Memory and -20 to 70 °C

PCSF51-EN-46R232AMD Ryzen Embedded R2312 Femto-ITX Single Board Computer with 4GB DDR4 Memory and -20 to 70 °C

CPU: AMD Ryzen R2000
OS: Linux, Linux Ubuntu 20.04
Display Outputs: 1x HDMI
Ethernet: 1x GbE LAN [RJ45]
USB: 2x USB 3.1 Gen 2 [Type A]
M.2: 1x M.2 E-Key [PCIe x1/USB]
Storage: 64GB eMMC
Power: 12V DC [Terminal Block]
Certification: CE, FCC, RoHS, UKCA

Memory: 4GB Soldered On-board
Temp: -20°C to 70°C [-4°F to 158°F]

Memory: 4GB Soldered On-board
Temp: 0°C to 60°C [32°F to 140°F]

Memory: 8GB Soldered On-board
Temp: 0°C to 60°C [32°F to 140°F]

Memory: 8GB Soldered On-board
Temp: 0°C to 60°C [32°F to 140°F]

DFI

PCSF51AMD Ryzen Embedded R2000 1.8" Femto-ITX SBCs with Memory Down and 64GB eMMC

Available in 4 variations

Datasheet

Select PCSF51 Variant

HPT253 6-Core AMD Ryzen 5 8640U 4″ EPIC Single Board Computer with 9 to 36 V DC Input and Triple LAN

HPT253-BCN-8640U6-Core AMD Ryzen 5 8640U 4″ EPIC Single Board Computer with 9 to 36 V DC Input and Triple LAN

AI Performance: 16 TOPS
Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
OS: Linux, Windows 11
Display Outputs: 1x Display Port, 1x HDMI, 1x LVDS, 1x USB Type C
Ethernet: 1x GbE LAN [RJ45], 2x 2.5 GbE LAN [RJ45]
USB: 1x USB 2.0 [Type A], 1x USB 3.2 [Type C], 2x USB 2.0 [Board], 2x USB 3.2 [Type A]
Serial: 2x RS232 [DB9], 2x RS232/422/485 [DB9]
M.2: 1x M.2 B-Key [USB 3.0/SIM] [3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 9-36V DC [4-Pin], 9-36V DC [Barrel Connector]
Temp: 0°C to 60°C [32°F to 140°F]
Certification: CE, FCC, RoHS

CPU: AMD Ryzen PRO 8000 Series

DFI

HPT253AMD Ryzen 8000 4" x86 SBCs with Triple LAN and 9 to 36 V DC Input

Available in 2 variations

Datasheet

Select HPT253 Variant

HPT193 AMD Ryzen 5 8640U Mini-ITX Mainboard with Dual 2.5GbE and Quad Display

HPT193-CB-8640UAMD Ryzen 5 8640U Mini-ITX Mainboard with Dual 2.5GbE and Quad Display

AI Performance: 16 TOPS
Memory: 2x DDR5 4800MHz SO-DIMM Slots, 96GB
OS: Linux, Linux Ubuntu 22.04, Windows 11
Display Outputs: 4x Display Ports
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 5x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9], 2x ccTalk [Board], 2x TTL [Board]
M.2: 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280]
PCIe: 1x PCIe [x16 Slot] [x8 Signal] [Gen4]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: 12-24V DC Input [4-Pin], 12-24V DC [Barrel Connector]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

CPU: AMD Ryzen PRO 8000 Series

CPU: AMD Ryzen PRO 8000 Series

CPU: AMD Ryzen Embedded 8000 Series

CPU: AMD Ryzen Embedded 8000 Series

DFI

HPT193AMD Ryzen 8000 Hawk Point Industrial Mini-ITX Motherboards with Dual 2.5GbE and Quad Display

Available in 4 variations

Datasheet

Select HPT193 Variant

HPT171 AMD Ryzen 5 8640U Industrial Mini-ITX Motherboard with Dual 2.5GbE and Quad Display

HPT171-CB-8640UAMD Ryzen 5 8640U Industrial Mini-ITX Motherboard with Dual 2.5GbE and Quad Display

AI Performance: 16 TOPS
Memory: 2x DDR5 4800MHz SO-DIMM Slots, 96GB
OS: Linux, Linux Ubuntu 22.04, Windows 11
Ethernet: 2x 2.5 GbE LAN [RJ45]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9], 2x ccTalk [Board], 2x TTL [Board]
PCIe: 1x PCIe [x16 Slot] [x8 Signal] [Gen4]
Storage: 1x M.2 SSD, 2x SATA Ports
Power: 12V DC [4-Pin], 12V DC [Barrel Connector]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

CPU: AMD Ryzen PRO 8000 Series
Display Outputs: 4x Display Ports
USB: 5x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
M.2: 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280]

CPU: AMD Ryzen PRO 8000 Series
Display Outputs: 3x Display Ports
USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A], 4x USB 2.0 [Board]
M.2: 1x M.2 A-Key [USB 2.0] [3030/3042/3060], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280]

CPU: AMD Ryzen Embedded 8000 Series
Display Outputs: 4x Display Ports
USB: 5x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
M.2: 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280]

CPU: AMD Ryzen Embedded 8000 Series
Display Outputs: 3x Display Ports
USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A], 4x USB 2.0 [Board]
M.2: 1x M.2 A-Key [USB 2.0] [3030/3042/3060], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280]

DFI

HPT171AMD Ryzen 8000 Hawk Point Mini-ITX Motherboards with Dual 2.5GbE and up to Quad Display

Available in 4 variations

Datasheet

Select HPT171 Variant

GHF51 AMD Ryzen Embedded R1606G (R1000 Series) 1.8″ Femto-ITX SBC with 8GB DDR4 Memory and 64GB eMMC

GHF51-BN-86R16AMD Ryzen Embedded R1606G (R1000 Series) 1.8″ Femto-ITX SBC with 8GB DDR4 Memory and 64GB eMMC

CPU: AMD Ryzen R-Series
OS: Linux
Display Outputs: 2x HDMI
Ethernet: 1x GbE LAN [RJ45]
USB: 1x USB 3.1 Gen 2 [Type C]
mPCIe: 1x mPCIe [PCIe/USB]
Storage: 64GB eMMC
Power: 12V DC [Terminal Block]
Certification: CE, FCC, RoHS, UKCA

Memory: 8GB Soldered On-board
Temp: 0°C to 60°C [32°F to 140°F]

Memory: 4GB Soldered On-board
Temp: 0°C to 60°C [32°F to 140°F]

Memory: 4GB Soldered On-board
Temp: 0°C to 60°C [32°F to 140°F]

Memory: 4GB Soldered On-board
Temp: -20°C to 70°C [-4°F to 158°F]

Memory: 4GB Soldered On-board
Temp: 0°C to 60°C [32°F to 140°F]

Memory: 4GB Soldered On-board
Temp: 0°C to 60°C [32°F to 140°F]

DFI

GHF51AMD Ryzen Embedded R1000 1.8" Femto-ITX SBCs with Memory Down and 64GB eMMC

Available in 6 variations

Datasheet

Select GHF51 Variant

Displaying of 136 items

View All

// Official DFI Distributor

Speak to a DFI Specialist.

Things Embedded is an official DFI distributor and integration partner in the USA. Tell us the form factor, the environment and the interfaces you have to connect, and we will point you to the right family, then configure, image and test the board or system before it ships.

Phone · USA +1 407 214 9446

Email sales@things-embedded.com
