US Arestech
// Headquartered in Taiwan. Founded in 2011.
Arestech USA Distributor
Arestech Solution has designed and manufactured IP-rated industrial panel PCs, touch monitors and fanless embedded computers in Taiwan since 2011. The range is organized by ingress protection: full IP66/IP69K stainless steel panel PCs and monitors for washdown sites, stainless, aluminum and SECC builds sealed at the front for the factory floor, a modular display, video and PC module system, and fanless box PCs for automation and machine vision.
01 Product Range
Arestech Panel PCs, Monitors and Box PCs
Seven product families organized by ingress protection and form: full stainless steel, front-sealed stainless and SECC, modular, and boxed. Pick the family that matches the environment, then the series that matches the screen size and processor.
PPC-Z Stainless Steel IP66/IP69K Panel PCs
Fully sealed panel PCs in SUS304 stainless steel, with SUS316L as an option, for food, beverage, pharmaceutical and chemical washdown lines: IP66/IP69K rated with M12 connectors and resistive or PCAP touch from 10.1 to 24 inches. Each size comes on two processors: the 12th Gen Intel Core i5-1235U with dual 2.5GbE (PPC-Z1012, Z1512, Z1912, Z2112, Z2412) or the Intel Celeron J6412 (PPC-Z1064, Z1564, Z1964, Z2164, Z2464), plus 15.6-inch widescreen Z1512PW/RW and Z1564PW/RW builds.
- PPC-Zxx12: Intel Core i5-1235U, dual 2.5GbE, PCIe Gen 4 M.2
- PPC-Zxx64: Intel Celeron J6412 (Elkhart Lake)
- Full-system IP66/IP69K, M12 connectors for power, LAN, USB and serial
- Resistive (R) or PCAP (P) touch; 4:3, 5:4 and widescreen (W) panels
Series and Models in This Family
PPC-S Front IP66/IP69K Stainless Steel Panel PCs
Panel PCs with a true flat 304 stainless steel front, 316 optional, sealed to IP66/IP69K over an SECC steel back cover, for panel cut-outs and VESA mounts where the front is washed down and the rear stays dry. Sizes run from 10.1 to 21.5 inches with resistive or PCAP touch, on the Intel Core i5-1235U with dual 2.5GbE (PPC-S1012, S1212, S1512, S1912, S2112) or the Intel Celeron J6412 (PPC-S1064, S1264, S1564, S1964, S2164).
- IP66/IP69K at the front, SECC back cover
- Core i5-1235U with 2.5GbE or Celeron J6412 with GbE
- Two HDMI outputs, four USB 3.2 ports, M.2 and Mini PCIe expansion
- Pairs with the TPM-S33 stainless-front touch monitors
Series in This Family
DM and SM Modular Panel PCs and Sunlight-Readable Monitors
Arestech's modular system: a display module (DM, or the sunlight-readable SM at up to 1600 nits) bolts to either a PC module to make a panel PC, or a VM-2100 video module with VGA, DVI and DisplayPort inputs to make a monitor. The PM-2200 and PM-2250 PC modules run Intel Processor N97 and Core i3-N305; the PM-2000 runs the Celeron J1900. IP65 fronts, 9-48 V DC input and sizes from 10.4 to 24 inches, so one display serves both roles.
- PM-2200/2250: PC modules on Intel Processor N97 and Core i3-N305
- DM-1XXP/PM-2000: 10.4 to 24-inch panel PCs on Celeron J1900
- DM-1XXP/VM-2100 and SM-1xx/VM-2100: monitors with VGA, DVI and DisplayPort inputs
- SM series: 1500 to 1600 nit sunlight-readable displays for vehicles and outdoor cabinets
Series in This Family
TPM-S33 and TPM-36 Stainless Steel Touch Monitors
Stainless steel touch monitors for hygienic and washdown sites. The TPM-S33 series has a 304 stainless front, 316 optional, sealed to IP66/IP69K over an SECC back, from 10.1 to 21.5 inches, for panel cut-outs where the rear stays dry. The fully sealed 316 stainless TPM-36 series, with M12 and IP67 connectors for HDMI, VGA and USB, covers sites where the whole monitor is hosed down.
- TPM-S33: IP66/IP69K at the front, 304 stainless front, SECC back
- TPM-36: full IP66 sealing, 316 stainless, M12 and IP67 connectors
- Resistive (R) or PCAP (P) touch; widescreen (W) builds
- Pairs with the PPC-S and PPC-Z panel PCs
Series and Models in This Family
TPM-32 and TPM-35 Aluminum and SECC Touch Monitors
Front-sealed touch monitors for control cabinets, kiosks and machines: the TPM-32 series in a SECC steel chassis with an IP54 front, 12.1 to 21.5 inches, HDMI and VGA inputs and 12 to 24 V DC; and the TPM-35 series with an IP65 aluminum bezel, full HD at 15.6 and 21.5 inches, and HDMI, DisplayPort and VGA inputs. Resistive or PCAP touch on each size.
- TPM-3212, 3215, 3217, 3218 and 3221: IP54 front, SECC chassis, 350 to 600 nits
- TPM-3223PW: 23.8-inch full HD PCAP with VGA and HDMI
- TPM-3515RW and 3521RW: IP65 aluminum bezel, full HD, resistive touch
- HDMI and VGA inputs, DisplayPort on the TPM-35
Series and Models in This Family
SB, CB, BPC and SE Fanless Box PCs and Expandable Computers
Fanless embedded computers for automation, gateways, vehicles and vision: the SB-5516 on Intel Core Ultra 200S with an NPU, the SB-5512 and BPC-5112 on Core Series 2 and 12th to 14th Gen LGA1700, the modular SB-5000 and the SE-5010 with an expansion box for PCIe GPU cards, the SB-5612 and BPC-3112 on Core i5-1235U, the IP66 SB-5825B on Core Ultra 5 225U, the CB-2200/2250 and CB-2210/2260 on Intel Processor N with ignition control, the M12 BPC-5012 and BPC-5097, and the BPC-3064 and DIN-rail CB-2264 on Celeron J6412.
- SB-5516 and SB-5825B: Intel Core Ultra with an integrated NPU
- SB-5512, BPC-5112, SB-5000 and SE-5010: LGA1700 Core and Core Series 2
- CB-2200/2250 and CB-2210/2260: 9-48 V DC with ignition control, -40 to 70 °C
- BPC-5012 and BPC-5097: M12 connectors for vehicle-mounted and mobile installations
Series and Models in This Family
PPC Front IP54 SECC Panel PCs
Fanless panel PCs in an SECC steel chassis with an IP54 front, for machine, kiosk and control-cabinet HMIs indoors. Sizes run from 6.5 to 21.5 inches: the Intel Core i5-1235U models (PPC-1012, 1212, 1512, 1912, 2112) add dual 2.5GbE and PCIe Gen 4 M.2, while the Intel Celeron J6412 models (PPC-1064, 1264, 1564, 1964, 2164) and the 6.5-inch PPC-664R run on a 10 W processor.
- IP54 front, SECC chassis, panel or VESA mount
- Core i5-1235U or Celeron J6412, Windows 11 or Linux
- Resistive (R) or PCAP (P) touch; 4:3, 5:4 and widescreen (W) panels
- Pairs with the TPM-32 IP54 touch monitors
Series and Models in This Family
// LOADING...
Browse Arestech's Latest Products

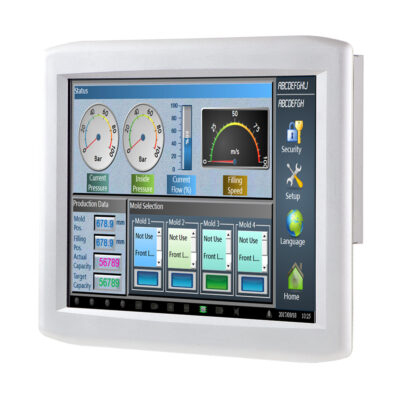

- Display: 15"[4:3, 1024 x 768, XGA]
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Memory: 2x DDR3L 1866MHz SO-DIMM Slot, 8GB
- OS: Linux, Windows 10
- Display Outputs: 1x HDMI, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.0 [Type A]
- Serial: 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 B/M-Key [SATA] [2242]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-36V DC Input, Terminal Block
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP66
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- CPU: Intel Celeron N Series Apollo Lake

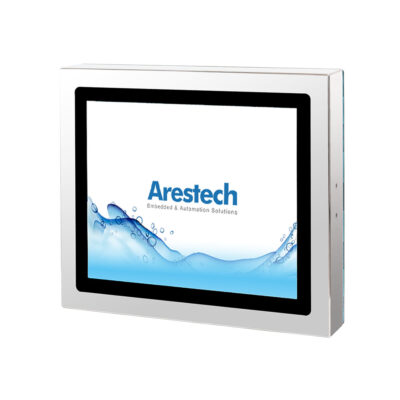

- Display: 15"[4:3, 1024 x 768, XGA]
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 7th Gen Kaby Lake
- Memory: 2x DDR4L 2133MHz SO-DIMM Slots, 32GB
- OS: Linux, Windows 10
- Ethernet: 2x GbE LAN [M12]
- USB: 2x USB 2.0 [M12], 2x USB 3.0 [M12]
- Serial: 1x RS232/422/485 [M12], 2x RS232 [M12]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- RAID: RAID 0, RAID 1
- Power: 9-36V DC Input, M12
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66, IP69K
- Certification: CE, FCC
- Touch: Optional 5-Wire Resistive Touch
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Projective Capacitive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron J Series Bay Trail
- Memory: 1x DDR3L 1600MHz SO-DIMM Slot, 8GB
- OS: Linux, Windows 10
- Ethernet: 1x GbE LAN [M12]
- USB: 1x USB 2.0 [M12]
- Serial: 1x RS232/422/485 [M12], 9x RS232 [M12]
- mPCIe: 1x Half-Size mPCIe [PCIe, USB], 1x mPCIe [SATA/USB]
- Storage: 1x 2.5" HDD/SSD
- Power: 9-36V DC Input, M12
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66, IP69K
- Certification: CE, FCC

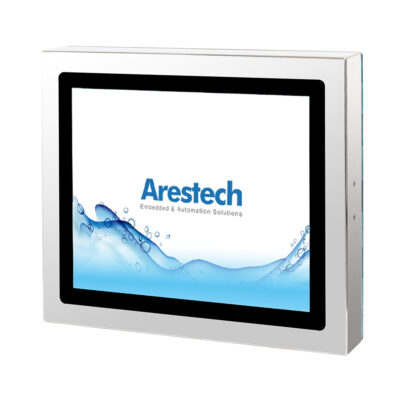

- Display: 15"[4:3, 1024 x 768, XGA]
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Pentium N Series Apollo Lake
- Memory: 2x DDR3L 1866MHz SO-DIMM Slot, 8GB
- OS: Linux, Windows 10
- Display Outputs: 1x VGA
- Ethernet: 2x GbE LAN [M12]
- USB: 1x USB 2.0 [M12], 2x USB 3.0 [M12]
- Serial: 1x RS232 [M12], 1x RS232/422/485 [M12]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input, M12
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66, IP69K
- Certification: CE, FCC
- Touch: Projective Capacitive Touch
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Brightness: 450
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12V DC [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP66, Front IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Brightness: 450
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron J Series Elkhart Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Linux, Windows 11
- Ethernet: 2x GbE LAN [M12]
- USB: 1x USB 3.2 Gen 1 [IP67], 1x USB 3.2 Gen 1 [M12], 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- M.2: 1x M.2 M-Key [PCIe x2/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD [PCIe & SATA]
- Power: 12-36V DC Input [M12]
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: IP66, IP69K
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount, Yoke Mount
- Touch: 5-Wire Resistive Touch
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Brightness: 450
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Ethernet: 2x 2.5 GBe LAN [M12]
- USB: 1x USB 3.2 Gen 2 [IP67], 1x USB 3.2 Gen 2 [M12], 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD [PCIe & SATA]
- RAID: RAID 0, RAID 1
- Power: 9-36V DC Input, M12
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: IP66, IP69K
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount, Yoke Mount
- Touch: 5-Wire Resistive Touch
- Touch: 5-Wire Resistive Touch
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Display Port Input, 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Brightness: 450
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Brightness: 1600
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input
- Power: 9-48V DC Input, Terminal Block, Optional AC Power Supply
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Touch: Resistive Touch

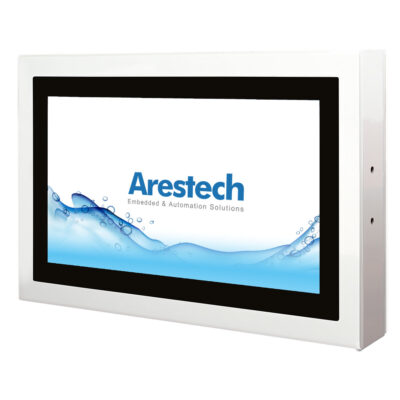

- Display: 15.6"[8:5, 1368 x 768, WXGA]
- Touch: Projective Capacitive Touch
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Pentium N Series Apollo Lake
- Memory: 2x DDR3L 1866MHz SO-DIMM Slot, 8GB
- OS: Linux, Windows 10
- Display Outputs: 1x VGA
- Ethernet: 2x GbE LAN [M12]
- USB: 1x USB 2.0 [M12], 2x USB 3.0 [M12]
- Serial: 1x RS232 [M12], 1x RS232/422/485 [M12]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input, M12
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66, IP69K
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount, Yoke Mount
- Brightness: 450
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12V DC [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP66, Front IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x VGA Input
- Power: 12-24V DC [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP54
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Brightness: 1500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input
- Power: 9-48V DC Input, Terminal Block, Optional AC Power Supply
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Touch: Resistive Touch
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66, IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 7th Gen Kaby Lake
- Memory: 2x DDR4L 2133MHz SO-DIMM Slots, 32GB
- OS: Linux, Windows 10
- Ethernet: 2x GbE LAN [M12]
- USB: 2x USB 2.0 [M12], 2x USB 3.0 [M12]
- Serial: 1x RS232 [M12], 1x RS232/422/485 [M12]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- RAID: RAID 0, RAID 1
- Power: 9-36V DC Input, M12
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66, IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
Why Choose Arestech
Arestech Solution has designed and manufactured embedded computers in Taiwan since 2011 as a system designer, manufacturer and ODM, building panel PCs, touch monitors, box PCs and modular display products for automation, machine vision, in-vehicle, food and pharmaceutical sites. Its range is organized by ingress protection, from fully sealed stainless washdown builds to front-sealed panels, and as an official Arestech distributor we bring it to USA projects.
Fully Sealed Stainless
Stainless steel panel PCs and displays designed to IP66, IP67 and IP69K, with watertight gaskets and a polished, crevice-free true flat front that leaves nowhere for contaminants to collect.
Downward M12 Connectors
Fully sealed models swap standard ports for locking, waterproof M12 connectors, mounted facing downward so water does not linger around them after washdown.
Pressure-Balanced Chassis
A built-in air pressure element balances the pressure inside sealed enclosures to reduce humidity, protecting the electronics in units exposed to water jets and high-temperature steam.
Three Protection Tiers
Panel PCs and touch displays come as full IP stainless, front IP stainless or front IP SECC builds, so the sealing and the cost follow the environment.
Modular Display System
PC, video and display modules combine into over a hundred configurations, so one display module becomes a panel PC or a monitor, configured to order to minimize downtime.
Expandable Vision Computers
MEVA and MEGA computers take up to four PCIe or PCI cards or an added GPU for machine vision and edge AI, with two flexible I/O window slots.
Vehicle-Ready Power
Expandable box PCs carry an external PC or car mode switch with over-voltage, over-current and reverse-voltage protection, and fanless in-vehicle computers are built for vibration and temperature changes.
ODM and Verification
Electronic, software and mechanical design teams handle ODM customization, signal integrity analysis and system verification, and Arestech assesses and tests products at each stage of their lifecycle.
Local Support
Your Arestech Partner in the USA
Our Arestech news, case studies and white papers cover the latest hardware and projects we have delivered with them. As the official Arestech distributor in the USA, we help you choose the right Arestech panel PC, monitor or box PC, configure and test it in the USA as standard, and support it locally for the life of your project. When Arestech launches, updates or retires a product, we will update you directly, with time to plan the change or a last-time buy.
Embedded PC Acts as Intelligent Router with 4 SIM Slots for Fast, Stable and Secure Bonded Cellular Internet
A maker of bonded 4G technology for superyachts and cruise ships needed a fanless embedded PC that could host four modems and four SIMs. We had a test system with them in under a week.
Integrating Waterproof HMIs with Leading Food & Beverage Manufacturers
Lessons from hundreds of food and beverage deployments: why retrofit enclosures fail on wash-down lines, and how sealed stainless steel HMIs from Arestech solve it.
Rugged Industrial Touch Panel PCs Deployed in Heavy Industry
British Steel replaced failing office PCs and displays with sealed 316 stainless rugged touch panel PCs that survive dirt, chemical cleaning and 24-hour steel production.
// Official Arestech Distributor
Speak to an Arestech Specialist.
Things Embedded is an official Arestech distributor and integration partner in the USA. Tell us the environment, the screen size and the interfaces you have to connect, and we will point you to the right family, then configure, image and test the system before it ships.
Phone · USA
+1 407 214 9446
