US 15 Inch Industrial Monitors
15 Inch Touch Screen Displays for Operator Stations and Machines
Fifteen inch industrial monitors are one of the most specified sizes in industry: large enough for a full operator screen, small enough for a cabinet door. Available as 15 inch 4:3 and 15.6 inch full HD panels in panel mount, chassis, open frame and rack builds, with PCAP, resistive or SAW touch and sealing from a front IP65 bezel to IP69K stainless steel.
Options include 1,600 nit sunlight-readable screens, PoE power, an ATEX-rated stainless model, marine and military builds and SDI inputs, suited to operator stations, washdown lines, kiosks and consoles where one screen size has to cover several jobs.
Speak to a display specialist to match the format, touch and mounting to your operator station.
Browse Our 15" Touch Screen Monitors
-

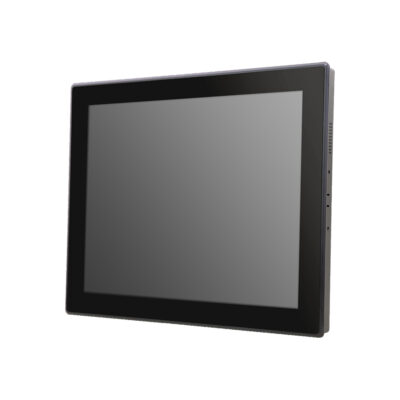

DM-115P/VM-2100
DM-1XXP/VM-2100 with 15" 4:3 XGA PCAP display -
DM-110P/VM-2100
DM-1XXP/VM-2100 with 10.4" 4:3 XGA PCAP display -
DM-112P/VM-2100
DM-1XXP/VM-2100 with 12.1" 4:3 XGA PCAP display -
DM-115PW/VM-2100
DM-1XXP/VM-2100 with 15.6" 16:9 FHD PCAP display -
DM-117P/VM-2100
DM-1XXP/VM-2100 with 17" 5:4 SXGA PCAP display -
DM-119P/VM-2100
DM-1XXP/VM-2100 with 19" 5:4 SXGA PCAP display -
DM-121PW/VM-2100
DM-1XXP/VM-2100 with 21.5" 16:9 FHD PCAP display -
DM-124PW/VM-2100
DM-1XXP/VM-2100 with 24" 16:9 FHD PCAP display
- Touch: Projective Capacitive Touch
- Viewing Angle: Wide Viewing Angle
- Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input
- Power: 9-48V DC Input, Terminal Block, Optional AC Power Supply
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 60°C [14°F to 140°F]
- Certification: CE, FCC
- Display: 15"[4:3, 1024 x 768, XGA]
- Brightness: 350
- Format: Standard
- IP Rating: Front IP65
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 15.6"[8:5, 1366 x 768, WXGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 1300
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Resistive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: -10°C to 60°C [14°F to 140°F]
- Certification: CE, FCC
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 15.6"[8:5, 1366 x 768, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 1300
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 15.6"[8:5, 1366 x 768, WXGA]
- Touch: Optional Resistive Touch
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Brightness: 450
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12V DC [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP66, Front IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 40°C [32°F to 104°F]
- IP Rating: Front IP65
- Touch: 5-Wire Resistive Touch
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Display Port Input, 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Brightness: 450
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: -10°C to 60°C [14°F to 140°F], -25°C to 60°C [-13°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 15.6"[16:9, 3840 x 2160, UHD]
- Touch: Multi Touch PCAP
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input, 2 x Optional HDMI
- Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Brightness: 1600
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input
- Power: 9-48V DC Input, Terminal Block, Optional AC Power Supply
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Touch: Resistive Touch
All Industrial MonitorsBack to the full range
7 Inch Industrial Monitors5.7, 6.5, 7, 8 and 8.4 inch · 4:3 and 17:10
10 Inch Industrial Monitors10.1 and 10.4 inch · 4:3 and 5:3
12 Inch Industrial Monitors12.1 inch · 4:3
17 Inch Industrial Monitors17 inch · 5:4
19 Inch Industrial Monitors18.5 and 19 inch · 5:4
21.5 Inch Industrial Monitors21.3 and 21.5 inch · 16:9
24 Inch Industrial Monitors23.8 and 24 inch · 16:9
27 Inch Industrial Monitors26 and 27 inch · 16:9
32 Inch Industrial Monitors32 inch · 16:9
Large Format Industrial Monitors40, 42.5 and 55 inch · 16:915 Inch Monitor Ranges Configured by Things Embedded
We work with the leading manufacturers of 15 inch displays, so the ranges below are the ones we specify for operator stations, washdown lines, kiosks and consoles. Compare them by mounting, touch and brightness, then browse the models above or ask a display specialist which range suits your operator station.
Winmate Open Frame Monitors
Housing-free modules from 5.7 to 42.5 inches with resistive or SAW touch and high-brightness options, built into kiosk, signage and machine enclosures.
Winmate PoE Touch Monitors
Single-cable PCAP screens from 15 to 32 inches with a front IP65 face, including a surgical model.
Winmate Rugged Waterproof Monitors
Fully sealed screens from 7 to 19 inches, IP65 with M12 connectors or IP67, with optical bonding and stainless options on selected models.
Winmate Marine Monitors
Bridge and engine room screens from 10.1 to 32 inches with a front IP66 bezel, designed to DNV and IEC 60945 requirements, with sunlight-readable options.
Winmate Military Rack and Console Displays
Defense screens from 8.4 to 55 inches for rack, console and vehicle mounting, with PCAP or resistive touch and 4K options.
Winmate PCAP Open Frame Displays
Multi-touch projected capacitive modules from 7 to 32 inches, including USB Type-C models, for kiosks and OEM enclosures.
Winmate IP65 Stainless and ATEX Displays
15 inch IP65 stainless steel touch screens, including an ATEX-rated model for classified areas.
Winmate Outdoor Panel Mount Displays
Sunlight-readable PCAP screens from 7 to 23.8 inches with a front IP65 bezel, for cabinet doors, dispensers and outdoor enclosures.
Winmate Stainless Steel Washdown Displays
Chassis-mount screens from 10.4 to 32 inches in stainless steel with PCAP touch, sealed to IP65 or IP69K, for food, beverage and pharmaceutical lines.
Winmate Rack Mount Monitors
19 inch rack screens from 15 to 32 inches with resistive or SAW touch, for control consoles and equipment cabinets.
Winmate Vehicle Mount Displays
In-cab touch screens from 8.4 to 15 inches with a front IP65 face, high-bright options and ignition control on selected models, for forklifts, cabs and mobile machinery.
Winmate Stainless Panel Mount Monitors
Flush stainless fronts from 15 to 21.5 inches with a front IP65 bezel and PCAP or resistive touch.
Winmate Outdoor and G-WIN Chassis Displays
PCAP touch screens from 7 to 55 inches with a front IP65 face, in high-bright outdoor and PoE builds, for kiosks, gates and outdoor control points.
SM Arestech 1,600 Nit Sunlight Readable Monitors
High-brightness screens from 10.4 to 24 inches with a 1,600 nit panel and a front IP65 bezel, in PCAP, resistive or non-touch builds for panel or chassis mounting.
TPM Arestech Panel Mount Touch Monitors
Cabinet-door HMI screens from 12.1 to 21.5 inches with PCAP or resistive touch and an IP54 or front IP65 face.
DM Arestech Modular Displays
PCAP touch screens from 10.4 to 24 inches with a front IP65 bezel, the display half of the DM modular panel PC, for panel or chassis mounting.
TPM-36 Arestech IP66/IP69K Stainless Steel Displays
Washdown screens from 10.1 to 23.8 inches in stainless steel, sealed to IP66 and IP69K, with PCAP or resistive touch and wireless options for hygienic lines.
ARC Avalue Wireless Touch Displays
Light industrial PCAP screens from 10.1 to 21.5 inches with a front IP65 face and wireless connectivity, for panel or VESA mounting.
APPD Nexcom Flush-Front Monitors
4:3 resistive touch screens from 12.1 to 19 inches with a flush IP65 front, for machines and control cabinets.
Not sure which range fits? Tell us the application and we will recommend the right model.
