Browse Our Capacitive Touch Screen Monitors

Display

I/O

Expansion

Power

Environmental Conditions

Mechanical Properties

Displaying of 188 items

View All

R10L100-GCT2-C 10.4″ USB-C PCAP Touch Monitor with XGA LCD and 350 Nits

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x USB Type C
Power: 5V [USB-C]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R10L100-GCT2-C10.4″ USB-C PCAP Touch Monitor with XGA LCD and 350 Nits

Datasheet

R10L100-PPP1HB 10.4″ PCAP Panel Mount Monitor with 1000 Nit SVGA Display and 400:1 Contrast

Display: 10.4"[4:3, 800 x 600, SVGA]
Touch: Multi Touch PCAP
Brightness: 1000
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R10L100-PPP1HB10.4″ PCAP Panel Mount Monitor with 1000 Nit SVGA Display and 400:1 Contrast

Datasheet

R10L100-PPT2(HB) 10.4″ PCAP Panel Mount Monitor with Optional 1000 Nit Panel and XGA LCD

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R10L100-PPT2(HB)10.4″ PCAP Panel Mount Monitor with Optional 1000 Nit Panel and XGA LCD

Datasheet

R10L100-PCT2(HB) 10.4″ PCAP Touch Monitor with Optional 1000 Nit Panel and XGA LCD

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R10L100-PCT2(HB)10.4″ PCAP Touch Monitor with Optional 1000 Nit Panel and XGA LCD

Datasheet

R10L100-GST2 10.4″ IP65 PCAP Touch Monitor with Edge-to-Edge Front, XGA Display and M12 Connectors

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC

Winmate

R10L100-GST210.4″ IP65 PCAP Touch Monitor with Edge-to-Edge Front, XGA Display and M12 Connectors

Datasheet

R10L100-SPT269 10.4″ IP69K Stainless Steel PCAP Washdown Monitor with XGA Display

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC [M12]
Temp: 0°C to 45°C [32°F to 113°F]
IP Rating: IP69K
Certification: CE, FCC

Winmate

R10L100-SPT26910.4″ IP69K Stainless Steel PCAP Washdown Monitor with XGA Display

Datasheet

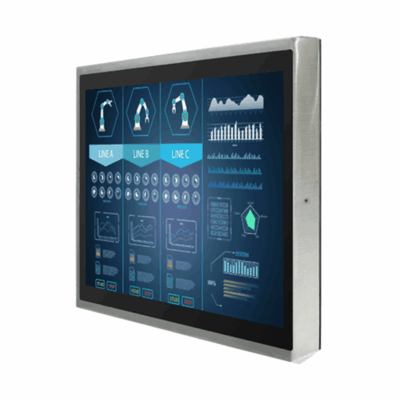

R10L100-SPT2 10.4″ IP65 Stainless Steel PCAP Touch Monitor with XGA Display and M12 Connectors

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC [M12]
Temp: 0°C to 45°C [32°F to 113°F]
IP Rating: IP65
Certification: CE, FCC

Winmate

R10L100-SPT210.4″ IP65 Stainless Steel PCAP Touch Monitor with XGA Display and M12 Connectors

Datasheet

R10L100-PCT2OD 10.4″ Sunlight Readable PCAP Touch Monitor with 1000 Nit XGA Display and Front IP65

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC
Temp: -10°C to 60°C [14°F to 140°F], -25°C to 60°C [-13°F to 140°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R10L100-PCT2OD10.4″ Sunlight Readable PCAP Touch Monitor with 1000 Nit XGA Display and Front IP65

R10L100-PPT2OD 10.4″ Sunlight Readable PCAP Panel Mount Monitor with 1000 Nit XGA and Front IP65

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC
Temp: -10°C to 60°C [14°F to 140°F], -25°C to 60°C [-13°F to 140°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R10L100-PPT2OD10.4″ Sunlight Readable PCAP Panel Mount Monitor with 1000 Nit XGA and Front IP65

Datasheet

SM-110(P)(R)/VM-2100 10″ PCAP Sunlight Readable Touch Monitor with 1,600 Nit XGA LCD and Front IP65

SM-110P/VM-210010″ PCAP Sunlight Readable Touch Monitor with 1,600 Nit XGA LCD and Front IP65

Display: 10.4"[4:3, 1024 x 768, XGA]
Brightness: 1600
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input
Power: 9-48V DC Input, Terminal Block, Optional AC Power Supply
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 60°C [14°F to 140°F]
IP Rating: Front IP65
Certification: CE, FCC

Touch: Projective Capacitive Touch

Touch: Resistive Touch

Arestech

SM-110(P)(R)/VM-210010" 1,600 Nit Sunlight Readable Monitors with Front IP65 Bezel

Available in 3 variations

Datasheet

Select SM-110(P)(R)/VM-2100 Variant

R10L100-PCT2-POE 10.4″ PoE Powered PCAP Touch Monitor with XGA Display and Front IP65

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Ethernet Input, 1x Optional HDMI Input, 1x VGA Input
Power: PoE Powered Device (PD) [RJ45]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R10L100-PCT2-POE10.4″ PoE Powered PCAP Touch Monitor with XGA Display and Front IP65

Datasheet

R10L100-POT2-C 10.4″ USB-C Open Frame PCAP Touch Monitor with XGA Display

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x USB Type C
Power: 5V [USB-C]
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

R10L100-POT2-C10.4″ USB-C Open Frame PCAP Touch Monitor with XGA Display

Datasheet

DM-1XXP/VM-2100 10.4″ XGA PCAP Modular Touch Monitor with 500 Nit LCD and Front IP65

DM-110P/VM-210010.4″ XGA PCAP Modular Touch Monitor with 500 Nit LCD and Front IP65

Touch: Projective Capacitive Touch
Viewing Angle: Wide Viewing Angle
Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input
Power: 9-48V DC Input, Terminal Block, Optional AC Power Supply
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 60°C [14°F to 140°F]
Certification: CE, FCC

Display: 10.4"[4:3, 1024 x 768, XGA]
Brightness: 500
Format: Standard

Display: 24"[16:9, 1920 x 1080, FHD]
Brightness: 300
Format: Widescreen
IP Rating: Front IP65

Display: 19"[5:4, 1280 x 1024, SXGA]
Brightness: 350
Format: Standard
IP Rating: Front IP65

Display: 21.5"[16:9, 1920 x 1080, FHD]
Brightness: 300
Format: Widescreen
IP Rating: Front IP65

Display: 17"[5:4, 1280 x 1024, SXGA]
Brightness: 350
Format: Standard
IP Rating: Front IP65

Display: 15"[4:3, 1024 x 768, XGA]
Brightness: 350
Format: Standard
IP Rating: Front IP65

Display: 15.6"[16:9, 1920 x 1080, FHD]
Brightness: 450
Format: Widescreen
IP Rating: Front IP65

Display: 12.1"[4:3, 1024 x 768, XGA]
Brightness: 600
Format: Standard
IP Rating: Front IP65

Arestech

DM-1XXP/VM-210010.4" to 24" Modular PCAP Touch Monitors with Front IP65 Bezel

Available in 8 variations

Datasheet

Select DM-1XXP/VM-2100 Variant

R12L100-PCM2(HB) 12.1″ PCAP Touch Monitor with MIL-STD-810G and Optional 1000 Nit Panel

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 500
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R12L100-PCM2(HB)12.1″ PCAP Touch Monitor with MIL-STD-810G and Optional 1000 Nit Panel

Datasheet

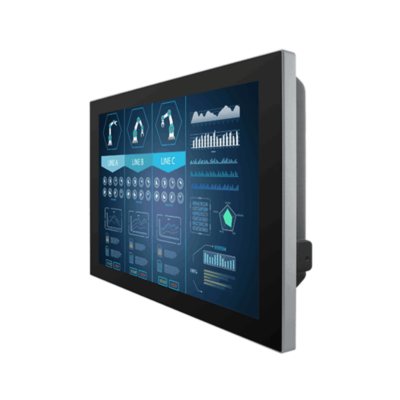

R12L100-GSM2(HB) 12.1″ IP65 PCAP Touch Monitor with Edge-to-Edge Front, XGA Display and M12 Connectors

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 500
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC

Winmate

R12L100-GSM2(HB)12.1″ IP65 PCAP Touch Monitor with Edge-to-Edge Front, XGA Display and M12 Connectors

Datasheet

Displaying of 188 items

View All
