US Front IP65 Monitors
Sealed-Bezel Industrial Displays for Cabinet Doors and Consoles
Front IP65 monitors seal the bezel and screen against dust and low-pressure water jets while the rear of the display sits inside the cabinet, console or kiosk, which is how most panel mount and enclosure-mounted displays are specified. Available from 7 to 55 inches with PCAP or resistive touch, in panel mount and chassis builds.
Options include 1,600 nit sunlight-readable panels, outdoor high-brightness displays, PoE power, wireless display, vehicle-mount builds and stainless steel fronts, suited to control cabinets, kiosks, dispensers and machine consoles where the front is wiped or rinsed and the enclosure protects the connections.
Speak to a display specialist to match the size, touch and brightness to your cabinet.
Browse Our Front IP65 Panel Mount Displays
- IP Rating: Front IP65
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 1000, 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 9-36V DC Input [Terminal Block], AC Power Supply Included
- Temp: -10°C to 55°C [14°F to 131°F]
- Certification: CE, FCC
- IP Rating: Front IP65
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: 5-Wire Resistive Touch
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x VGA Input, 1xDVI-D
- Power: 12-24V DC [Terminal Block]
- Temp: -5°C to 50°C [23°F to 122°F]
- Certification: CE, FCC
- IP Rating: Front IP65
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: -10°C to 60°C [14°F to 140°F], -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- IP Rating: Front IP65
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: -10°C to 60°C [14°F to 140°F], -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- IP Rating: Front IP65
- Display: 15"[4:3, 1024 x 768 XGA]
- Brightness: 1500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input
- Power: 9-48V DC Input, Terminal Block, Optional AC Power Supply
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 60°C [14°F to 140°F]
- Certification: CE, FCC
- Touch: Resistive Touch
- IP Rating: Front IP65
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- IP Rating: Front IP65
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Display Port Input, 1x HDMI 1.4, 1x VGA Input
- Power: 12V DC
- Temp: -10°C to 50°C [14°F to 122°F]
- Certification: CE, FCC
- IP Rating: Front IP65
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Ethernet Input, 1x Optional HDMI Input, 1x VGA Input
- Power: PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

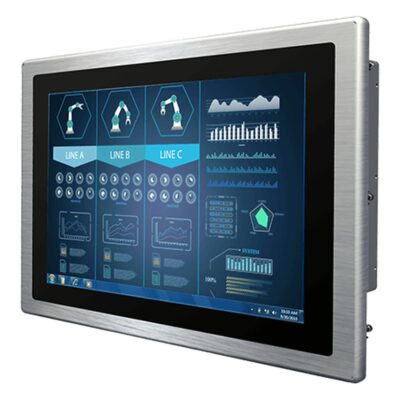

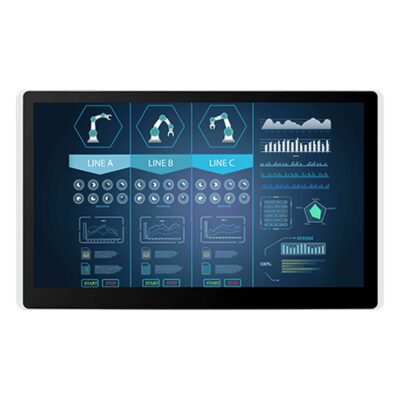

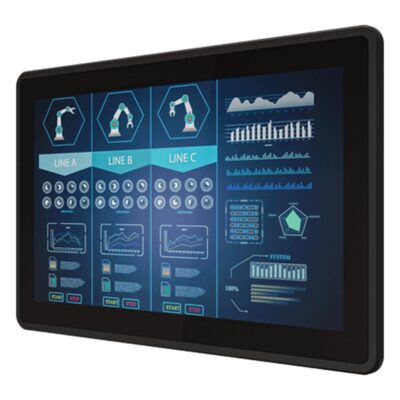

- IP Rating: Front IP65
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount
- IP Rating: Front IP65
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- IP Rating: Front IP65
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- IP Rating: Front IP65
- Display: 15.6"[8:5, 1366 x 768, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 1300
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- IP Rating: Front IP65
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- IP Rating: Front IP65
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 40°C [32°F to 104°F]
- IP Rating: Front IP65
- Touch: 5-Wire Resistive Touch
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Display Port Input, 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Brightness: 450
Front IP65 Monitor Ranges Configured by Things Embedded
We work with the leading manufacturers of front-sealed displays, so the ranges below are the ones we specify for cabinet doors, kiosks, vehicles and outdoor enclosures. Compare them by size, brightness and touch, then browse the models above or ask a display specialist which range suits your cabinet.
Winmate Outdoor and G-WIN Chassis Displays
PCAP touch screens from 7 to 55 inches with a front IP65 face, in high-bright outdoor and PoE builds, for kiosks, gates and outdoor control points.
Winmate Outdoor Panel Mount Displays
Sunlight-readable PCAP screens from 7 to 23.8 inches with a front IP65 bezel, for cabinet doors, dispensers and outdoor enclosures.
Winmate PoE Touch Monitors
Single-cable PCAP screens from 15 to 32 inches with a front IP65 face, including a surgical model.
Winmate Vehicle Mount Displays
In-cab touch screens from 8.4 to 15 inches with a front IP65 face, high-bright options and ignition control on selected models, for forklifts, cabs and mobile machinery.
Winmate Stainless Panel Mount Monitors
Flush stainless fronts from 15 to 21.5 inches with a front IP65 bezel and PCAP or resistive touch.
SM Arestech 1,600 Nit Sunlight Readable Monitors
High-brightness screens from 10.4 to 24 inches with a 1,600 nit panel and a front IP65 bezel, in PCAP, resistive or non-touch builds for panel or chassis mounting.
DM Arestech Modular Displays
PCAP touch screens from 10.4 to 24 inches with a front IP65 bezel, the display half of the DM modular panel PC, for panel or chassis mounting.
TPM Arestech Panel Mount Touch Monitors
Cabinet-door HMI screens from 12.1 to 21.5 inches with PCAP or resistive touch and an IP54 or front IP65 face.
ARC Avalue Wireless Touch Displays
Light industrial PCAP screens from 10.1 to 21.5 inches with a front IP65 face and wireless connectivity, for panel or VESA mounting.
APPD Nexcom Flush-Front Monitors
4:3 resistive touch screens from 12.1 to 19 inches with a flush IP65 front, for machines and control cabinets.
P Series Axiomtek Railway Monitors
Driver desk touch screens and open frame passenger information panels from 10.4 to 18.5 inches for rolling stock.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Front IP65 Display
Our display specialists specify every front IP65 monitor against the cut-out, the cleaning at the front and the light on the screen. These are the choices that decide whether the screen suits the installation, and the ones we work through with you before recommending a range.
What Front IP65 Covers
Dust-tight and protected against low-pressure jets on the bezel and screen, with the rear protected by the enclosure.
Cut-Out and Format
Match the format and bezel to the existing cut-out so a replacement fits without machining.
Brightness
Standard panels indoors, 1,000 to 1,600 nits for outdoor cabinets and cabs.
PCAP or Resistive
PCAP for a flush multi-touch front, resistive for gloved operators and water on the screen.
Power Options
DC, AC or PoE power, and ignition control on vehicle models.
Front IP65 Monitor Innovation & Cabinet Front Insights
Speak to a Display Specialist.
Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
