Intel Core Ultra 7 and Ultra 9 Computers for Edge AI
An Intel Core Ultra computer puts a neural processing unit next to the CPU cores and graphics on one processor, so vision and AI models run locally at low power without a separate accelerator. The range covers fanless industrial PCs, compact systems with PoE+ camera ports, GPU computers and 3.5-inch SBCs on Core Ultra 5, Core Ultra 7 and Core Ultra 9.
Options include Core Ultra 200S (Arrow Lake) processors on the LGA1851 socket at 35 W or 65 W, Core Ultra Series 1 (Meteor Lake) on compact boards, 2.5GbE and 10GbE networking, PCIe Gen5 NVMe storage and NVIDIA RTX graphics, suited to machine vision, quality inspection, retail analytics and robotics where the AI model runs beside the control software.
Speak to an Intel Core Ultra specialist to match the processor, the AI workload and the I/O to your application.
// LOADING...
Browse Our Intel Arrow Lake and Meteor Lake Computers
-
iEPF-10000S-W880
iEPF-10000S-W880 with Core Ultra 200S, W880 chipset, ECC memory and seven PCIe slots -
iEPF-10000S-Q670
iEPF-10000S-Q670 with Bartlett Lake or 14th Gen Core, three 2.5GbE, PoE+ and seven PCIe slots -
iEPF-10000S-Q870
iEPF-10000S-Q870 with Core Ultra 200S, Q870 chipset, two GPU cards and six PCIe slots -
iEPF-10000S-W680
iEPF-10000S-W680 with Bartlett Lake or 14th Gen Core, ECC memory, three 2.5GbE and PoE+
- GPU / AI Accelerator: Discrete GPU (PCIe)
- GPU: Arc A770, Arc B580, Arc Pro B50, Arc Pro B60, Arc Pro B65, Arc Pro B70, Radeon AI PRO R9700, NVIDIA RTX PRO 2000 Blackwell, RTX PRO 5000 Blackwell 72GB, NVIDIA RTX PRO 4000 Blackwell, NVIDIA RTX PRO 4000 Blackwell SFF, NVIDIA RTX PRO 4500 Blackwell, NVIDIA RTX PRO 5000 Blackwell, NVIDIA RTX PRO 6000 Blackwell Max-Q
- OS: Linux, Windows 11
- Serial: 2x RS232/422/485 [DB9], 4x RS232 [Board]
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: 100-240V AC, AC Power Supply Included
- Mounting Options: Desktop
- CPU: Intel Core Ultra Series 2 Arrow Lake-S
- AI Performance: 13–3,511 TOPS
- Memory: 4x DDR5 6400MHz LONG-DIMM Slots, 256GB
- Display Outputs: 1x Display Port, 1x USB Type C, 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 4 [Type C], 2x USB 2.0 [Board], 2x USB 3.2 Gen 1 [Type A], 6x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 B-Key [PCIe x1 Gen4/USB 2.0] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280], 1x M.2 M-Key [PCIe x4 Gen5] [2242/2280/22110/25110]
- PCIe: 2x PCIe [x1 Slot] [Gen4], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5], 3x PCIe [x4 Slot] [Gen4]
- Storage: 2x M.2 SSD, 4x 3.5" or 2.5" HDD/SSD [SATA]
-
iEP-7041E-025
iEP-7041E-025 with Core Ultra 5 225H, isolated 8DI/8DO, 4DI/4DO and three COM -
iEP-7041E-020
iEP-7041E-020 with Core Ultra 5 225H, three 2.5GbE, 4DI/4DO, three COM and Wi-Fi option -
iEP-7041E-021
iEP-7041E-021 with Core Ultra 5 225H, two 802.3af PoE ports and five LAN in total -
iEP-7041E-022
iEP-7041E-022 with Core Ultra 5 225H, five LAN ports, three COM and Wi-Fi option -
iEP-7041E-023
iEP-7041E-023 with Core Ultra 5 225H, five LAN ports and 5G or 4G LTE option -
iEP-7041E-024
iEP-7041E-024 with Core Ultra 5 225H, optional 5G or 4G LTE, Wi-Fi and three 2.5GbE
- CPU: Intel Core Ultra Series 2 Arrow Lake-H
- GPU / AI Accelerator: Intel NPU
- AI Performance: 13 TOPS
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x HDMI, 1x VGA
- USB: 1x USB 2.0 [Type A], 3x USB 3.2 Gen 2 [Type A]
- Serial: 3x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen3/USB 2.0] [2230/2260], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- Storage: 1x M.2 SSD, 1x Micro SD
- Temp: -25°C to 50°C [-13°F to 122°F]
- Certification: CE, FCC, LVD
- Ethernet: 3x 2.5 GbE LAN [RJ45]
- Power: 9-36V DC Input [Terminal Block]
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
-
iEP-7040E-025
iEP-7040E-025 with Core Ultra 7 255H, isolated 8DI/8DO, 4DI/4DO and three COM -
iEP-7040E-020
iEP-7040E-020 with Core Ultra 7 255H, three 2.5GbE, 4DI/4DO, three COM and Wi-Fi option -
iEP-7040E-021
iEP-7040E-021 with Core Ultra 7 255H, two 802.3af PoE ports and five LAN in total -
iEP-7040E-022
iEP-7040E-022 with Core Ultra 7 255H, five LAN ports, three COM and Wi-Fi option -
iEP-7040E-023
iEP-7040E-023 with Core Ultra 7 255H, five LAN ports and 5G or 4G LTE option -
iEP-7040E-024
iEP-7040E-024 with Core Ultra 7 255H, optional 5G or 4G LTE, Wi-Fi and three 2.5GbE
- CPU: Intel Core Ultra Series 2 Arrow Lake-H
- GPU / AI Accelerator: Intel NPU
- AI Performance: 13 TOPS
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x HDMI, 1x VGA
- USB: 1x USB 2.0 [Type A], 3x USB 3.2 Gen 2 [Type A]
- Serial: 3x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen3/USB 2.0] [2230/2260], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- Storage: 1x M.2 SSD, 1x Micro SD
- Temp: -25°C to 50°C [-13°F to 122°F]
- Certification: CE, FCC, LVD
- Ethernet: 3x 2.5 GbE LAN [RJ45]
- Power: 9-36V DC Input [Terminal Block]
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
-

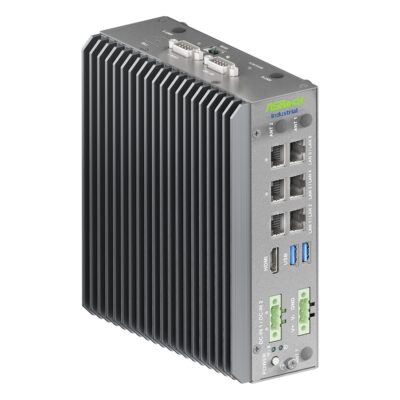

iEP-7050E-025
iEP-7050E-025 with Core Ultra X7 358H, out-of-band management port and seven LAN -
iEP-7050E-020
iEP-7050E-020 with Core Ultra X7 358H, six LAN ports, 4DI/4DO and Wi-Fi option -
iEP-7050E-021
iEP-7050E-021 with Core Ultra X7 358H, two 802.3af PoE ports and eight LAN in total -
iEP-7050E-022
iEP-7050E-022 with Core Ultra X7 358H, optional 5G or 4G LTE, Wi-Fi and six LAN -
iEP-7050E-023
iEP-7050E-023 with Core Ultra X7 358H, isolated 8DI/8DO, 4DI/4DO and six LAN -
iEP-7050E-024
iEP-7050E-024 with Core Ultra X7 358H, dual CAN bus, 4DI/4DO and six LAN
- CPU: Intel Core Ultra Series 3 Panther Lake
- GPU / AI Accelerator: Intel NPU
- AI Performance: 50 TOPS
- Memory: 2x DDR5 7200MHz SO-DIMM Slot, 128GB
- OS: Linux Ubuntu 26.04, Linux, Windows 11
- Display Outputs: 1x HDMI
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen3/USB 2.0] [2230/2260], 1x M.2 M-Key [PCIe x4 Gen5] [2280]
- Storage: 1x M.2 SSD, 1x Micro SD
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC, LVD
- Ethernet: 3x 2.5 GbE LAN [RJ45], 4x GbE LAN [RJ45]
- Power: 9-36V DC Input [Terminal Block]
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
- CPU: Intel Core Ultra Series 2 Arrow Lake-S
- AI Performance: 13 TOPS
- Memory: 2x DDR5 6400MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x eDP, 1x HDMI, 1x LVDS, 1x USB Type C
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 4 [Type C], 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280/3052]
- PCIe: 1x PCIe [x16 Slot] [Gen5]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 12-28V DC [4-Pin], 12-28V DC [Barrel Connector]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core Ultra Series 2 Arrow Lake-S
- AI Performance: 13 TOPS
- Memory: 2x DDR5 6400MHz SO-DIMM Slot, 128GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x eDP, 1x LVDS, 1x USB Type C, 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 4 [Type C], 2x USB 3.2 Gen 1 [Board], 4x USB 2.0 [Board], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe/USB] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA/USB 2.0] [2242/2280], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2242]
- PCIe: 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5]
- Storage: 2x M.2 SSD, 2x SATA Ports
- RAID: RAID 0, RAID 1
- Power: 12-28V DC [4-Pin], 12-28V DC [Barrel Connector]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core Ultra Series 2 Arrow Lake-S
- AI Performance: 13 TOPS
- Memory: 2x DDR5 6400MHz SO-DIMM Slot, 128GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 1x USB Type C, 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 4 [Type C], 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9], 2x RS232 [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280/3052]
- PCIe: 1x PCIe [x16 Slot] [Gen5]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: ATX Power Supply [4+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core Ultra Series 2 Arrow Lake-S
- AI Performance: 13 TOPS
- Memory: 2x DDR5 6400MHz SO-DIMM Slot, 128GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x eDP, 1x LVDS, 1x USB Type C, 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 4 [Type C], 2x USB 2.0 [Board], 2x USB 3.2 Gen 1 [Board], 5x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [Board], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2242], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280/3042]
- PCIe: 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5]
- Storage: 2x M.2 SSD, 3x SATA Ports
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: 12V DC [4-Pin], ATX Power Supply [4+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core Ultra Series 2 Arrow Lake-S
- AI Performance: 13 TOPS
- Memory: 4x DDR5 6400MHz LONG-DIMM Slots, 256GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x eDP, 1x HDMI, 1x LVDS, 2x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 2x USB 3.2 Gen 1 [Board], 2x USB 4 [Type C], 8x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280], 1x M.2 M-Key [PCIe x4 Gen5] [2242/2280]
- PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5], 2x PCIe [x4 Slot] [Gen4]
- Storage: 2x M.2 SSD, 8x SATA Ports
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: ATX Power Supply [8+8+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core Ultra Series 2 Arrow Lake-S
- AI Performance: 13 TOPS
- Memory: 4x DDR5 6400MHz LONG-DIMM Slots, 256GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x eDP, 1x HDMI, 1x LVDS, 2x USB Type C
- Ethernet: 1x 10 GbE LAN [RJ45], 1x 2.5 GbE LAN [RJ45], 3x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 2x USB 3.2 Gen 2 [Board], 2x USB 4 [Type C], 8x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280], 1x M.2 M-Key [PCIe x4 Gen5] [2242/2280]
- PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5], 2x PCIe [x4 Slot] [Gen4]
- Storage: 2x M.2 SSD, 8x SATA Ports
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: ATX Power Supply [8+8+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core Ultra Series 2 Arrow Lake-S
- AI Performance: 13 TOPS
- Memory: 4x DDR5 6400MHz LONG-DIMM Slots, 256GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x eDP, 1x HDMI, 1x LVDS, 2x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45], 3x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 2x USB 3.2 Gen 2 [Board], 2x USB 4 [Type C], 8x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280], 1x M.2 M-Key [PCIe x4 Gen5] [2242/2280]
- PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5], 2x PCIe [x4 Slot] [Gen4]
- Storage: 2x M.2 SSD, 8x SATA Ports
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: ATX Power Supply [8+8+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core Ultra Series 2 Arrow Lake-S
- AI Performance: 13 TOPS
- Memory: 4x DDR5 6400MHz LONG-DIMM Slots, 256GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 2x HDMI, 2x USB Type C
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 3.2 Gen 1 [Board], 2x USB 4 [Type C], 6x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9], 4x RS232 [Board]
- M.2: 1x M.2 B-Key [PCIe x1 Gen4/USB 2.0] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280], 1x M.2 M-Key [PCIe x4 Gen5] [2242/2280/22110/25110]
- PCIe: 2x PCIe [x1 Slot] [Gen4], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5], 2x PCIe [x4 Slot] [Gen4]
- Storage: 2x M.2 SSD, 4x SATA Ports
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: ATX Power Supply [8+8+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core Ultra Series 2 Arrow Lake-S
- AI Performance: 13 TOPS
- Memory: 4x DDR5 6400MHz LONG-DIMM Slots, 256GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 2x HDMI, 2x USB Type C
- Ethernet: 1x 10 GbE LAN [RJ45], 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 3.2 Gen 1 [Board], 2x USB 4 [Type C], 6x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9], 4x RS232 [Board]
- M.2: 1x M.2 B-Key [PCIe x1 Gen4/USB 2.0] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280], 1x M.2 M-Key [PCIe x4 Gen5] [2242/2280/22110/25110]
- PCIe: 2x PCIe [x1 Slot] [Gen4], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5], 3x PCIe [x4 Slot] [Gen4]
- Storage: 2x M.2 SSD, 4x SATA Ports
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: ATX Power Supply [8+8+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core Ultra Series 2 Arrow Lake-S
- AI Performance: 13 TOPS
- Memory: 4x DDR5 6400MHz LONG-DIMM Slots, 256GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 2x HDMI, 2x USB Type C
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 3.2 Gen 1 [Board], 2x USB 4 [Type C], 6x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9], 4x RS232 [Board]
- M.2: 1x M.2 B-Key [PCIe x1 Gen4/USB 2.0] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280], 1x M.2 M-Key [PCIe x4 Gen5] [2242/2280/22110/25110]
- PCIe: 2x PCIe [x1 Slot] [Gen4], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5], 3x PCIe [x4 Slot] [Gen4]
- Storage: 2x M.2 SSD, 4x SATA Ports
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: ATX Power Supply [8+8+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core Ultra Series 2 Arrow Lake-U
- GPU / AI Accelerator: Intel NPU
- AI Performance: 12 TOPS
- Memory: 2x DDR5 6400MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI
- Ethernet: 2x 2.5 GBe LAN [M12]
- USB: 1x USB 3.2 Gen 2 [IP67], 2x USB 2.0 [M12]
- Serial: 1x Isolated RS232 [M12], 1x Isolated RS422/485 [M12]
- M.2: 1x M.2 E-Key [PCIe] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD [SATA], 1x M.2 SSD [PCIe & SATA]
- RAID: RAID 0, RAID 1
- Power: 9-36V DC Input [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- Mounting Options: Wall Mount
All IntelBack to the full rangeIntel Elkhart LakeAtom x6000E, Celeron and Pentium for the edgeIntel Alder Lake12th Gen Core, the first hybrid generationIntel Raptor Lake13th and 14th Gen Core on LGA1700Intel Processor NN97, N150 and i3-N305 at 6 to 15 WIntel Amston LakeAtom x7000E and x7000RE, 2 to 8 coresIntel Bartlett LakeCore Series 2 edge processors for LGA1700Intel Wildcat LakeCore Series 3 with Xe3 graphics and an NPU
Intel Core Ultra Ranges Configured by Things Embedded
We work with the leading manufacturers of Core Ultra industrial computers, so the ranges below are the ones we specify for vision, AI and automation systems. Compare them by networking, expansion and cooling, then browse the systems above or ask a specialist which range suits your application.
Intel Core Ultra
Neousys
Nuvo-11000 Neousys Rugged Fanless Computers With PCIe Gen5
Fanless Core Ultra 200S industrial computers with single and dual-slot PCIe cassettes, 6x 2.5GbE builds and low-profile versions with a swappable 2.5-inch SSD tray.
Neousys
Nuvo-11531 and Nuvo-11588 Neousys Compact Edge AI Computers
Slim fanless Core Ultra 200S systems for AMRs and vision: the Nuvo-11531 with 4x 2.5GbE PoE+ camera ports and the Nuvo-11588 with PCIe Gen4 x8 SlimSAS expansion.
Neousys
Nuvo-11501 Neousys Compact Fanless Industrial PC
A compact fanless Core Ultra 200S computer with 2x 2.5GbE for control cabinets and machine builds where panel space is tight.
Neousys
Nuvo-11160GC Neousys Compact Edge AI GPU Computer
A compact rugged Core Ultra 200S computer with an NVIDIA RTX GPU, for vision models and camera counts that need more than the on-chip NPU.
Vecow
ECX-4000 Vecow Fanless Edge AI Computers
Fanless Core Ultra systems from dual LAN to 8x 2.5GbE with 4x PoE+, dual 10GbE SFP+ builds and dual SSD trays, for multi-camera inspection and network-heavy edge AI.
Vecow
EMBC-7000 Vecow 3.5-Inch Core Ultra SBCs
3.5-inch boards on Core Ultra 5 135U or Core Ultra 7 165U with dual 2.5GbE and SUMIT B expansion, for compact AI devices built around the NPU.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an Intel Core Ultra 9 or Ultra 7 System
Our edge AI specialists specify every Core Ultra system against the AI model, the cameras and the enclosure it goes into. These are the choices we work through with you before recommending a range.
Processor and Power
Core Ultra 5, 7 or 9, with 35 W T parts for fanless builds and 65 W parts where the chassis can shed the heat.
NPU, GPU or Both
The NPU runs lighter vision models at low power; add an NVIDIA RTX GPU when the model or the camera count needs more.
Networking and PoE
2.5GbE and 10GbE SFP+ ports, with PoE+ to power cameras straight from the computer.
Expansion
PCIe cassettes and M.2 slots for frame grabbers, I/O cards and extra accelerators.
Cooling and Enclosure
Fanless compact and low-profile builds for cabinets and machines, with wide DC input by range.
Operating System and OpenVINO
Windows or Linux images with OpenVINO, which runs one model across the CPU, GPU and NPU.
Core Ultra Innovation & Edge AI Insights
We specialize in x86 edge AI computers that run vision and control on one processor. Our team of embedded system design engineers recommends and configures Intel Core Ultra systems to the AI model, camera count and enclosure your line or site needs. Discover how we help machine builders, integrators and retailers put AI beside the process, or read our guides to NPUs, GPUs and Intel processor generations.
Intel Core Ultra Naming, NPU and Industrial Use
How Intel Core Ultra dropped the i, added an on-chip NPU and where these processors fit in the industrial PCs and boards listed on this page.
Intel Core Ultra for Edge AI: What the NPU Does
Explains what a neural processing unit is, how it differs from a CPU and GPU, and why the Core Ultra NPU suits low-power inference in a fanless computer.
Core Ultra 7 Series 2 NPU or a GPU for Your AI Model?
Compares GPU and NPU acceleration so you can judge when an Intel Core Ultra NPU handles the model and when the workload needs a discrete GPU computer.
What is a rugged computer?
Built to run where standard PCs fail: the types, the standards and how to choose one.
// Intel Edge AI Specialists
Speak to an Intel Core Ultra Specialist.
Tell us where the system will be installed, the approvals it must meet and the interfaces you need to connect. We will recommend the right form factor, then configure, image and test it before it ships.
Phone · USA
+1 407 214 9446
