PCAP Touch Monitors

// LOADING...

Browse Our Capacitive Touch Screen Monitors

Display

I/O

Expansion

Power

Environmental Conditions

Mechanical Properties

Displaying of 188 items

View All

W10L100-PCH2 10.1″ PCAP Touch Monitor with WXGA LCD and 350 Nits

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W10L100-PCH210.1″ PCAP Touch Monitor with WXGA LCD and 350 Nits

Datasheet

W10L100-PCH2LB 10.1″ PCAP Touch Monitor with WXGA LCD and 800:1 Contrast

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W10L100-PCH2LB10.1″ PCAP Touch Monitor with WXGA LCD and 800:1 Contrast

Datasheet

W10L100-EHH2 10.1″ PCAP Panel Mount Monitor with WXGA LCD and 350 Nits

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W10L100-EHH210.1″ PCAP Panel Mount Monitor with WXGA LCD and 350 Nits

Datasheet

TPM-S3310 10.1″ WXGA PCAP Stainless Steel Touch Monitor with Front IP66/IP69K Sealing

TPM-S3310PW-A110.1″ WXGA PCAP Stainless Steel Touch Monitor with Front IP66/IP69K Sealing

Display: 10.1"[8:5, 1280 x 800, WXGA]
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x HDMI Input, 1x VGA Input
Power: 12V DC [Terminal Block]
Temp: -20°C to 60°C [-4°F to 140°F]
IP Rating: Front IP66, Front IP69K
Certification: CE, FCC

Touch: Projective Capacitive Touch

Arestech

TPM-S331010.1" WXGA PCAP or Resistive Stainless Steel Touch Monitors with Front IP66/IP69K

Available in 2 variations

Datasheet

Select TPM-S3310 Variant

VDM-101HD10.1″ Sunlight Readable In-Vehicle Monitor with Front IP66, PCAP Touch and E-Mark

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x DVI Input, 1x HDMI Input
Power: 9-48V DC Input [Terminal Block]
Temp: -20°C to 60°C [-4°F to 140°F]
IP Rating: Front IP66
Certification: CE, E-Mark, FCC
Mounting Options: VESA Mount

Sintrones

VDM-101HD10.1″ Sunlight Readable In-Vehicle Monitor with Front IP66, PCAP Touch and E-Mark

Datasheet

W10L100-GCH2 10.1″ Front IP65 PCAP Touch Monitor with WXGA LCD and VGA Input

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 1000, 350
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W10L100-GCH210.1″ Front IP65 PCAP Touch Monitor with WXGA LCD and VGA Input

Datasheet

W10L100-GSH2 10.1″ Rugged IP65 PCAP Touch Monitor with WXGA LCD and M12 Connectors

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC

Winmate

W10L100-GSH210.1″ Rugged IP65 PCAP Touch Monitor with WXGA LCD and M12 Connectors

Datasheet

W10L100-GCH2OD 10.1″ Sunlight Readable PCAP Touch Monitor with 1000 Nit WXGA LCD

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC
Temp: -10°C to 60°C [14°F to 140°F], -25°C to 60°C [-13°F to 140°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W10L100-GCH2OD10.1″ Sunlight Readable PCAP Touch Monitor with 1000 Nit WXGA LCD

Datasheet

W10L100-EHH2OD 10.1″ Sunlight Readable Panel Mount PCAP Touch Monitor with 1000 Nit WXGA LCD

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC
Temp: -10°C to 60°C [14°F to 140°F], -25°C to 60°C [-13°F to 140°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W10L100-EHH2OD10.1″ Sunlight Readable Panel Mount PCAP Touch Monitor with 1000 Nit WXGA LCD

Datasheet

ARC-10W00 10.1″ PCAP Industrial Touch Monitor with 350 Nit WXGA LCD and Front IP65 Bezel

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Display Port Input, 1x HDMI 1.4, 1x VGA Input
Power: 12V DC
Temp: -10°C to 50°C [14°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Avalue

ARC-10W0010.1″ PCAP Industrial Touch Monitor with 350 Nit WXGA LCD and Front IP65 Bezel

Datasheet

W10L100-PCH2-POE 10.1″ PoE Powered PCAP Widescreen Touch Monitor with 1280 x 800 and Front IP65

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Ethernet Input, 1x Optional HDMI Input, 1x VGA Input
Power: PoE Powered Device (PD) [RJ45]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W10L100-PCH2-POE10.1″ PoE Powered PCAP Widescreen Touch Monitor with 1280 x 800 and Front IP65

Datasheet

W10L100-POH2-C 10.1″ Open Frame PCAP Touch Monitor with WXGA LCD and USB Type-C

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x USB Type C
Power: 5V [USB-C]
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

W10L100-POH2-C10.1″ Open Frame PCAP Touch Monitor with WXGA LCD and USB Type-C

Datasheet

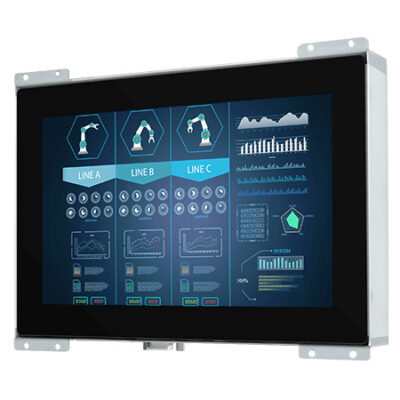

W10L100-POA1 10.1″ Open Frame PCAP Touch Monitor with 1920 x 1200 WUXGA LCD

Display: 10.1"[8:5, 1920 x 1200, WUXGA]
Touch: Multi Touch PCAP
Brightness: 700
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

W10L100-POA110.1″ Open Frame PCAP Touch Monitor with 1920 x 1200 WUXGA LCD

Datasheet

W10L100-POH2 10.1″ Open Frame PCAP Touch Monitor with WXGA LCD and 1000 Nit Option

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Multi Touch PCAP
Brightness: 1000, 350
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

W10L100-POH210.1″ Open Frame PCAP Touch Monitor with WXGA LCD and 1000 Nit Option

Datasheet

TPM-3610PW 10.1″ PCAP Widescreen Stainless Steel Touch Monitor with IP66/IP69K Sealing and M12 Connectors

Display: 10.1"[5:3, 1280 x 800, WXGA]
Touch: Projective Capacitive Touch
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x HDMI Input, 1x VGA Input
Power: 12-24V DC [M12]
Temp: -20°C to 60°C [-4°F to 140°F]
IP Rating: IP66, IP69K
Certification: CE, FCC

Arestech

TPM-3610PW10.1″ PCAP Widescreen Stainless Steel Touch Monitor with IP66/IP69K Sealing and M12 Connectors

Datasheet

Displaying of 188 items

View All

Beyond PCAP: Touchscreen Monitors

All Touchscreen MonitorsEvery touchscreen monitor we supply, from PCAP multi-touch and resistive screens to SAW glass displays.

Resistive Touch MonitorsResistive touch monitors that work with gloves or a stylus, for workshops, plant floors and labs.SAW Touch MonitorsSAW touch monitors with plain glass and no film layer, keeping the image bright for kiosks and signage.

// Display Specialists

Speak to a Display Specialist.

Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
