NVIDIA Jetson Orin Computers From Orin Nano to AGX Orin
NVIDIA Jetson Orin is the module family behind most edge AI systems today, from the Orin Nano at 20 TOPS to the AGX Orin at 275 TOPS. The range covers NVIDIA Orin computers, rugged and waterproof box PCs, panel PCs, modules, developer kits and carrier boards across all three series.
Options include GMSL2, PoE and analog camera inputs, sealing up to IP67, operation from -40 °C to 85 °C on selected models, 4G and 5G, and rail, vehicle and military builds, suited to robotics, machine vision, autonomous vehicles and video analytics. Choose a series below, or compare them in our guide to which Jetson module to choose.
Speak to a Jetson Orin specialist to match the series, the module and the enclosure to your application.
NVIDIA Orin Modules
Jetson Orin modules have 6 options available with an Ampere architecture GPU for all levels of complexity with your edge AI or robotics project. Where the Orin Nano module best serves for entry-level AI the Orin NX module shares the same compact form factor while offering a significant increase in performance. AGX Orin modules give you the best in class performance with the AGX Orin Industrial module offering extended temperature support with long-life availability protected on embedded roadmaps.
Jetson Orin Developer Kits
You have the option to choose between two developer kits to help benchmark your performance requirements. The Jetson AGX Orin Developer Kit provides industry-leading AI performance and has the capability to emulate any of the Jetson Orin modules. Alternatively, the Jetson Orin Nano Developer Kit serves as reference carrier board that is compatible with all Orin NX and Orin Nano modules.
Jetson Orin Computers
Our NVIDIA Orin industrial computers are highly customizable to accommodate a wide range of edge AI tasks across various industries. These Jetson Orin industrial PCs are typically fanless and equipped with wide-temperature components, making them capable of withstanding harsh environments. Additionally, they can be customized to include ruggedized waterproof chassis with locking connectors.
Browse Our NVIDIA Orin Computers
-
NRU-230V-AWP-JAOi
NRU-230V-AWP with Jetson AGX Orin Industrial, 8x GMSL2 inputs and -40 °C rating -
NRU-230V-AWP-JAO32
NRU-230V-AWP with Jetson AGX Orin 32GB and 8x GMSL2 camera inputs -
NRU-230V-AWP-JAO64
NRU-230V-AWP with Jetson AGX Orin 64GB, 8x GMSL2 inputs and 275 TOPS -
NRU-240S-AWP-JAO32
NRU-240S-AWP with Jetson AGX Orin 32GB and 4x M12 PoE+ camera ports -
NRU-240S-AWP-JAO64
NRU-240S-AWP with Jetson AGX Orin 64GB, 4x M12 PoE+ and 275 TOPS -
NRU-240S-AWP-JAOi
NRU-240S-AWP with Jetson AGX Orin Industrial, 4x M12 PoE+ and -40 °C rating
- OS: Linux
- Display Outputs: 1x USB Type C
- Ethernet: 1x 10 GbE LAN [M12], 4x GbE LAN [M12] [PoE]
- USB: 1x USB 3.2 Gen 1 [Type C], 2x USB 2.0 [M12]
- Serial: 1x Isolated RS485 [M12], 1x RS232 [M12]
- CANbus: 2x Isolated CANbus [M12]
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 M-Key [PCIe x2 Gen4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB], 1x mPCIe [USB]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 8-48V DC [M12]
- Ignition Sensing: Supports Ignition Control
- IP Rating: IP66
- Certification: CE, FCC
- Mounting Options: Wall Mount
- AI Performance: 248 TOPS
- SOM: NVIDIA Jetson AGX Orin Industrial 64GB
- Temp: -40°C to 70°C [-40°F to 158°F]
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type C], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- CANbus: 1x CAN FD [DB9]
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [USB]
- Storage: 1x M.2 SSD
- Power: 9-60V DC Input [Terminal Block], Optional AC Power Supply
- Ignition Sensing: Supports Ignition Control
- Certification: CE, E-Mark, FCC, UKCA
- Mounting Options: Wall Mount
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- Temp: -25°C to 63°C [-13°F to 145°F]
- AI Performance: 20–100 TOPS
- SOM: NVIDIA Jetson Orin Nano 4GB, NVIDIA Jetson Orin Nano 8GB, NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
- OS: Linux
- Display Outputs: 1x Display Port
- USB: 1x USB 2.0 [Type C], 2x USB 3.2 Gen 1 [Board], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe x1 Gen4] [2280]
- PCIe: 1x PCIe [x4 Slot] [Gen3]
- Storage: 1x M.2 SSD [PCIe]
- Power: Optional AC Power Supply
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, FCC
- Ethernet: 1x GbE LAN [RJ45], 4x GbE LAN [RJ45] [PoE]
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB, NVIDIA Jetson AGX Orin Industrial 64GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [MIL-STD], 1x GbE LAN [MIL-STD]
- USB: 2x USB 3.2 Gen 2 [MIL-STD], 2x USB 2.0 [MIL-STD]
- Serial: 2x RS232 [MIL-STD], 2x RS232/422/485 [MIL-STD]
- CANbus: 2x CANbus [MIL-STD]
- M.2: 1x M.2 E-Key [PCIe] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 2x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input [MIL-STD]
- Temp: -40°C to 80°C [-40°F to 176°F]
- IP Rating: IP67
- Certification: MIL-STD-1275, MIL-STD-704, MIL-STD-461
- Display Outputs: 1x Display Port
- Ethernet: 4x 2.5 GbE LAN [RJ45] [PoE]
- Serial: 1x Isolated RS485 [Board], 1x RS232 [Board]
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- M.2: 1x M.2 M-Key [PCIe x2 Gen4] [2242]
- Storage: 1x M.2 SSD
- Power: 12V DC
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- Display Outputs: 1x Display Port
- USB: 2x USB 3.2 Gen 2 [Type A], 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x Isolated RS485 [Board], 1x RS232 [Board]
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 6
- M.2: 1x M.2 M-Key [PCIe x2 Gen4] [2242]
- Storage: 1x M.2 SSD
- Power: 12V DC
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
-

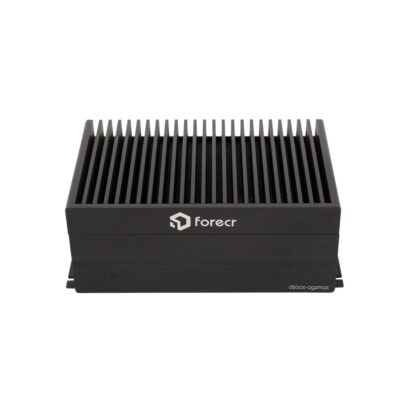

DSBOX-AGXMAX-IND
DSBOX-AGXMAX with Jetson AGX Orin Industrial, -40°C rating, 10G SFP+, dual GbE, optional 8x GMSL2 -
DSBOX-AGXMAX-32GB
DSBOX-AGXMAX with Jetson AGX Orin 32GB, 10G SFP+, dual GbE, optional 8x GMSL2 cameras, CAN -
DSBOX-AGXMAX-64GB
DSBOX-AGXMAX with Jetson AGX Orin 64GB, 10G SFP+, dual GbE, optional 8x GMSL2 cameras, CAN
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [SFP+], 2x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [3042/3052], 1x M.2 E-Key [2230], 2x M.2 M-Key [PCIe] [2280]
- Storage: 2x M.2 SSD, 64GB eMMC
- Power: 12-30V DC [Terminal Block]
- Certification: CE, FCC, RoHS
- AI Performance: 248 TOPS
- SOM: NVIDIA Jetson AGX Orin Industrial 64GB
- Temp: -40°C to 55°C [-40°F to 131°F]
-
X6-ORN-NX16-PoE
X6-ORN with Orin NX 16GB, 4x GbE with 2x 15 W PoE, 4x USB 3.2 -
X6-ORN-NN4
X6-ORN with Orin Nano 4GB, 4x GbE, 4x USB 3.2 -
X6-ORN-NN4-PoE
X6-ORN with Orin Nano 4GB, 4x GbE with 2x 15 W PoE, 4x USB 3.2 -
X6-ORN-NN8
X6-ORN with Orin Nano 8GB, 4x GbE, 4x USB 3.2 -
X6-ORN-NN8-PoE
X6-ORN with Orin Nano 8GB, 4x GbE with 2x 15 W PoE, 4x USB 3.2 -
X6-ORN-NX16
X6-ORN with Orin NX 16GB, 4x GbE, 4x USB 3.2 -
X6-ORN-NX8
X6-ORN with Orin NX 8GB, 4x GbE, 4x USB 3.2 -
X6-ORN-NX8-PoE
X6-ORN with Orin NX 8GB, 4x GbE with 2x 15 W PoE, 4x USB 3.2
- OS: Linux
- Display Outputs: 1x HDMI
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9]
- CANbus: 1x CANbus, DB9
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, RoHS
- Mounting Options: DIN Mount, Wall Mount
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- Ethernet: 2x GbE LAN [RJ45], 2x GbE LAN [RJ45] [PoE]
-
X6-ORN-GMSL-NX16-PoE
X6-ORN-GMSL with Orin NX 16GB, 2x GMSL2, 4x GbE with 2x 15 W PoE -
ORN-GMSL-NX8-PoE
X6-ORN-GMSL with Orin NX 8GB, 2x GMSL2, 4x GbE with 2x 15 W PoE -
X6-ORN-GMSL-NN4
X6-ORN-GMSL with Orin Nano 4GB, 2x GMSL2, 4x GbE -
X6-ORN-GMSL-NN4-PoE
X6-ORN-GMSL with Orin Nano 4GB, 2x GMSL2, 4x GbE with 2x 15 W PoE -
X6-ORN-GMSL-NN8
X6-ORN-GMSL with Orin Nano 8GB, 2x GMSL2, 4x GbE -
X6-ORN-GMSL-NN8-PoE
X6-ORN-GMSL with Orin Nano 8GB, 2x GMSL2, 4x GbE with 2x 15 W PoE -
X6-ORN-GMSL-NX16
X6-ORN-GMSL with Orin NX 16GB, 2x GMSL2, 4x GbE -
X6-ORN-GMSL-NX8
X6-ORN-GMSL with Orin NX 8GB, 2x GMSL2, 4x GbE
- OS: Linux
- Display Outputs: 1x HDMI
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9]
- CANbus: 1x CANbus, DB9
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, RoHS
- Mounting Options: DIN Mount, Wall Mount
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- Ethernet: 2x GbE LAN [RJ45], 2x GbE LAN [RJ45] [PoE]
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB, NVIDIA Jetson AGX Orin Industrial 64GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A]
- CANbus: 1x CANbus [Terminal Block]
- Video Input: 1x HDMI, 1x SDI
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052], 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 12-54V DC [Barrel Connector]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, RoHS
- Mounting Options: Wall Mount
- AI Performance: 20–100 TOPS
- SOM: NVIDIA Jetson Orin Nano 4GB, NVIDIA Jetson Orin Nano 8GB, NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [M12], 2x GbE LAN [M12] [PoE]
- USB: 2x USB 2.0 [M20], 2x USB 3.0 [M20]
- Serial: 1x RS232 [M23]
- CANbus: 1x CANbus [M23]
- M.2: 1x M.2 B-Key [PCIe/USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP67
- Certification: CE, FCC, RoHS
- Mounting Options: Wall Mount
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- OS: Linux
- Ethernet: 2x GbE LAN [M12] [PoE]
- USB: 2x USB 2.0 [M12]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 9-36V DC Input [M12]
- Temp: -25°C to 65°C [-13°F to 149°F]
- IP Rating: IP67
- Certification: CE
- Mounting Options: Wall Mount
-
NRU-172S-PPC-JONX-8GB
NRU-172S-PPC with NVIDIA Jetson Orin NX 8GB -
NRU-171V-PPC-JONN-4GB
NRU-171V-PPC with NVIDIA Jetson Orin Nano 4GB -
NRU-171V-PPC-JONN-8GB
NRU-171V-PPC with NVIDIA Jetson Orin Nano 8GB -
NRU-171V-PPC-JONX-16GB
NRU-171V-PPC with NVIDIA Jetson Orin NX 16GB -
NRU-171V-PPC-JONX-8GB
NRU-171V-PPC with NVIDIA Jetson Orin NX 8GB -
NRU-172S-PPC-JONN-4GB
NRU-172S-PPC with NVIDIA Jetson Orin Nano 4GB -
NRU-172S-PPC-JONN-8GB
NRU-172S-PPC with NVIDIA Jetson Orin Nano 8GB -
NRU-172S-PPC-JONX-16GB
NRU-172S-PPC with NVIDIA Jetson Orin NX 16GB
- Display: 10.1"[8:5, 1920 x 1200, WUXGA]
- Brightness: 1000
- Format: Standard
- OS: Linux
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- CANbus: 1x CAN FD [M12]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052], 1x M.2 M-Key [PCIe x1 Gen3] [2242]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 8-35V DC [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 60°C [-13°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- Mounting Options: VESA Mount
- AI Performance: 70 TOPS
- SOM: NVIDIA Jetson Orin NX 8GB
- Ethernet: 1x GbE LAN [M12], 4x GbE LAN [M12] [PoE]
-
FLYC-300-EC-JON16
FLYC-300 with Orin NX 16GB module, enclosure and three antenna holes -
FLYC-300-EC-JON8
FLYC-300 with Orin NX 8GB module, enclosure and three antenna holes -
FLYC-300-JON16
FLYC-300 with Orin NX 16GB module on a board-level heat spreader -
FLYC-300-JON8
FLYC-300 with Orin NX 8GB module on a board-level heat spreader
- OS: Linux
- Display Outputs: 1x Display Port
- Ethernet: 1x GbE LAN [RJ45], 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 1 [Type A], 1x USB 3.2 Gen 2 [Type A]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 B-Key [3042/3052], 1x M.2 M-Key [PCIe x4 Gen4] [2230]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 12-60V DC Input [XT-30]
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, FCC, UL 62368-1
- Mounting Options: Wall Mount
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 3x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- CANbus: 2x CANbus [RJ-12]
- M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 7-20V DC [Barrel Connector]
- Mounting Options: Desktop, DIN Mount
- AI Performance: 248 TOPS
- SOM: NVIDIA Jetson AGX Orin Industrial 64GB
- Temp: -40°C to 70°C [-40°F to 158°F]
Explore Jetson Thor, Carrier Boards and Rugged Builds
Looking beyond Orin? Explore the next Jetson generation, the full carrier board range and our sealed and military-grade Jetson computers.
What to Specify in a Jetson Orin Computer
Our edge AI specialists specify every Orin system against the model, the cameras and the site it goes into. These are the choices we work through with you before recommending a series and a range.
Series and Module
Orin Nano (20 to 40 TOPS) for entry-level vision, Orin NX (70 to 100 TOPS) for several models at once, or AGX Orin (200 to 275 TOPS) for multi-camera autonomy.
Camera Inputs
GMSL2 for long camera runs on vehicles and robots, PoE for IP cameras, 10GbE for GigE vision, or analog inputs for cameras already fitted.
Cooling and Temperature
Fanless designs across most of the range, with selected models rated from -40 °C to 85 °C.
Sealing and Mounting
Open enclosures for cabinets, or IP54, IP66 and IP67 sealed units with M12 connectors, plus DIN rail, wall and VESA mounting.
Rail, Vehicle and Defense Builds
Rail computers designed to EN 50155 requirements, E-Mark for vehicles and MIL-STD builds for defense platforms.
JetPack and Software
We install NVIDIA JetPack with the carrier manufacturer's board support package, then your application and models, so every unit starts from the same image.
Custom Jetson Orin Hardware and Design Services
NVIDIA Jetson Orin computers offer the most advanced edge AI systems for smaller, lower-power autonomous machines. Available in three different series scaling different levels of performance, you have the Orin Nano, Orin NX, and AGX Orin.
Things Embedded support the entire NVIDIA Jetson Orin series with COTS and custom hardware design services utilizing the entire suite of AGX, NX, and Nano modules, developer kits, carrier boards, and edge computers. Our NVIDIA Orin embedded systems can be tailored with industrial-grade components and rugged enclosures to meet your application requirements and commercial imperatives. Speak to one of our system design engineers to help pre-configure a Jetson Orin industrial PC, or Jetson Orin carrier board, which can withstand any industry application and shield your edge AI platform from environmental elements like dust, water, heat, power fluctuations, shocks, and vibrations. We can help you from the early stages of development to edge deployment.
Jetson Orin Innovation & Edge AI Insights
Speak to a Jetson Orin Specialist.
Tell us where the system will be installed, the approvals it must meet and the cameras and interfaces you need to connect. We will recommend the right Orin module and system, then configure, image and test it before it ships.
