US Industrial Mini PCs
Compact and Low Profile Industrial PCs
Our industrial mini PC solutions are commonly engineered around small form factor motherboards such as the Intel NUC, AMD 4x4, or Mini-ITX platform. Designed with a compact and low profile industrial chassis, a fanless industrial mini computer provides both durability and reliability when installed inside an industrial enclosure at the edge, or on the factory floor.
Ultra Compact Fanless Reliability
A miniature industrial PC is engineered to be tough and provide 24/7 operation in harsh environments. Often installed in tight spaces such as factory cabinets, our small industrial PCs are often passively cooled with fanless technology and support wide operating temperatures.
Energy-Efficient Processing Power
Our compact industrial computers come with a range of CPU options, from energy-efficient to powerful, to meet various edge-based processing requirements. We can also integrate onboard AI accelerators or GPUs to further enhance their processing capabilities.
Always Connected and Expandable
Configurable with expandable I/O and onboard storage, we can help configure small industrial PCs with big capabilities. We can also configure a network-ready compact industrial PC with wireless options such as Wi-Fi, Cat M1, 4G, or 5G, with onboard SIMs and certified modems for edge-to-cloud deployment.
// LOADING...
Browse Our Range Of Small Industrial PCs
-
IBOX-600-M12X-ON4
IBOX-600 with Jetson Orin Nano 4GB, M12 X-coded LAN and M12 K-coded power -
IBOX-600-M12X-ON8
IBOX-600 with Jetson Orin Nano 8GB, M12 X-coded LAN and M12 K-coded power -
IBOX-600-M12X-ONX16
IBOX-600 with Jetson Orin NX 16GB, M12 X-coded LAN and M12 K-coded power -
IBOX-600-M12X-ONX8
IBOX-600 with Jetson Orin NX 8GB, M12 X-coded LAN and M12 K-coded power -
IBOX-600-ON4
IBOX-600 with Jetson Orin Nano 4GB, RJ-45 LAN and terminal-block power -
IBOX-600-ON8
IBOX-600 with Jetson Orin Nano 8GB, RJ-45 LAN and terminal-block power -
IBOX-600-ONX16
IBOX-600 with Jetson Orin NX 16GB, RJ-45 LAN and terminal-block power -
IBOX-600-ONX8
IBOX-600 with Jetson Orin NX 8GB, RJ-45 LAN and terminal-block power
- Display Outputs: 1x HDMI
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- CANbus: 1x CANbus, DB9
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [USB] [2230]
- mPCIe: 1x mPCIe [USB]
- Storage: 1x M.2 SSD
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, E-Mark, EN50155, FCC
- AI Performance: 20 TOPS
- SOM: NVIDIA Jetson Orin Nano 4GB
- Ethernet: 1x 2.5 GbE LAN [M12], 1x GbE LAN [M12]
- Power: 9-60V DC Input [M12]
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45], 4x GbE LAN [RJ45] [PoE]
- USB: 1x USB 3.2 Gen 2 [Type A], 4x USB 3.1 Gen 1 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- CANbus: 2x Isolated CANbus, DB9
- M.2: 1x M.2 B-Key [PCIe x2/USB 3.0/SATA] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 2x M.2 M-Key [PCIe x4/SATA] [2280]
- PCIe: 1x PCIe [x8 Slot][Gen4]
- Storage: 1x Micro SD, 2x M.2 SSD, 64GB eMMC
- Power: 9-50V DC Input, Terminal Block
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, EN50121-3-2, EN50155, FCC
- Mounting Options: Desktop, DIN Mount, Wall Mount

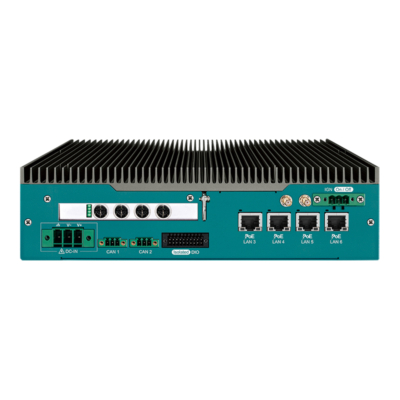

- AI Performance: 275 TOPS
- SOM: NVIDIA Jetson AGX Orin 64GB
- CPU: Intel Processor N Series Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM, 16GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS422/485 [DB9], 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 M-Key [SATA] [2280]
- PCIe: 1x PCIe [x4 Slot] [1-Lane Signal] [Gen3], 1x PCIe [x4 Slot] [Gen3]
- Storage: 1x M.2 SSD [SATA]
- Power: 12-24V DC [Terminal Block]
- Temp: -10°C to 70°C [14°F to 158°F]
- Certification: CE, FCC
- Mounting Options: Wall Mount
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 M-Key [PCIe x4/SATA] [2280]
- Storage: 1x M.2 SSD, 1x Micro SD, 64GB eMMC
- Power: 12-30V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- Mounting Options: DIN Mount, Wall Mount
- AI Performance: 275 TOPS
- SOM: NVIDIA Jetson AGX Orin 64GB
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB
- OS: Linux Ubuntu 20.04
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type A], 4x USB 3.1 Gen 1 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- CANbus: 2x Isolated CANbus, DB9
- M.2: 1x M.2 B-Key [PCIe x2/USB 3.0/SATA] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 2x M.2 M-Key [PCIe x4/SATA] [2280]
- PCIe: 1x PCIe [x8 Slot][Gen4]
- Storage: 1x Micro SD, 2x M.2 SSD, 64GB eMMC
- Power: 9-50V DC Input, Terminal Block
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, EN50121-3-2, EN50155, FCC
- Mounting Options: Desktop, DIN Mount, Wall Mount
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x VGA
- USB: 2x USB 2.0 [Type A], 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS422/485 [DB9], 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 2x mPCIe [PCIe/SIM/USB]
- Storage: 1x 2.5" HDD/SSD [SATA], 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4]
- Hot Swappable Storage: Hot Swappable SSD Support
- Power: 8-48V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- Mounting Options: Wall Mount
- Ethernet: 4x 2.5 GbE LAN [RJ45] [PoE]
-
DSBOX-ORNX-AC8
DSBOX-ORNX with NVIDIA Jetson Orin Nano 8GB, 8 GB LPDDR5, GbE, CAN bus, 9-28 VDC -
DSBOX-ORNX-AA
DSBOX-ORNX with a choice of Jetson Orin Nano 4GB/8GB or Orin NX 8GB/16GB -
DSBOX-ORNX-AB16
DSBOX-ORNX with NVIDIA Jetson Orin NX 16GB, 100 TOPS, 16 GB LPDDR5, CAN bus -
DSBOX-ORNX-AB8
DSBOX-ORNX with NVIDIA Jetson Orin NX 8GB, 8 GB LPDDR5, GbE, CAN bus, 9-28 VDC -
DSBOX-ORNX-AC4
DSBOX-ORNX with NVIDIA Jetson Orin Nano 4GB, 4 GB LPDDR5, GbE, CAN bus, 9-28 VDC
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232 [Terminal Block], 1x RS422 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280], 1x M.2 M-Key [PCIe] [2230]
- Storage: 2x M.2 SSD
- Power: 9-28V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- Mounting Options: DIN Mount, Wall Mount
- AI Performance: 40 TOPS
- SOM: NVIDIA Jetson Orin Nano 8GB
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x VGA
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS422/485 [DB9], 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 2x mPCIe [PCIe/SIM/USB]
- Storage: 1x 2.5" HDD/SSD [SATA], 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4]
- Power: 8-35V DC [Terminal Block]
- Certification: CE, FCC
- Mounting Options: DIN Mount, Wall Mount
- Temp: -25°C to 60°C [-13°F to 140°F]
- CPU: Intel Core 11th Gen Tiger Lake, Intel Celeron 6000 Series Tiger Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Linux Ubuntu 20.04, Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x DVI, 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SIM] [3042/3052], 1x M.2 M-Key [PCIe/SATA] [2280], 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD [SATA], 1x M.2 SSD [PCIe & SATA]
- Power: 12V DC [Barrel Connector]
- Temp: -30°C to 60°C [-22°F to 140°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
-
BEDROCK R7000 BASIC TILE
BEDROCK R7000 BASIC with 29 mm Tile enclosure, Ryzen 7 7840U and conduction cooling -
BEDROCK R7000 BASIC 30W
BEDROCK R7000 BASIC with 30W finned enclosure, Ryzen 7040 Series and DIN mounting -
BEDROCK R7000 BASIC 60W
BEDROCK R7000 BASIC with 60W finned enclosure, Ryzen 7 7840HS and 2x 2.5GbE
- CPU: AMD Ryzen, AMD Ryzen 7
- AI Performance: 10 TOPS
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 2x Mini Display Port
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [Board]
- M.2: 1x M.2 A/E-Key [SATA] [2230], 1x M.2 B-Key [USB] [3042/3052], 3x M.2 M-Key [PCIe x4] [2280]
- Storage: 3x M.2 SSD
- Power: 12-60V DC Input [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC, RoHS
- Mounting Options: Desktop, DIN Mount, Wall Mount
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x VGA
- USB: 2x USB 2.0 [Type A], 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS422/485 [DB9], 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 2x mPCIe [PCIe/SIM/USB]
- Storage: 1x 2.5" HDD/SSD [SATA], 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4]
- Hot Swappable Storage: Hot Swappable SSD Support
- Power: 8-48V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, Wall Mount
- Ethernet: 4x 2.5 GbE LAN [RJ45] [PoE]
- CPU: Intel Atom X Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x DVI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- CANbus: Optional CANbus Modules
- M.2: 1x M.2 B-Key [3042/3052], 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-36V DC Input [Terminal Block]
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, FCC
- Mounting Options: Wall Mount
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10
- Display Outputs: 2x Display Port
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB] [2260/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 9-55V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 60°C [-40°F to 140°F]
- Certification: CE, EN50121-3-2, EN50155, FCC
- Mounting Options: Desktop, DIN Mount, Wall Mount
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 128GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x USB Type C, 1x VGA
- USB: 1x USB 3.2 Gen 1 [Type C], 1x USB 3.2 Gen 1 [Type A], 2x USB 2.0 [M12]
- Serial: 1x Isolated RS232 [M12], 1x Isolated RS422/485 [M12]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [2242/3052], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 2x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4], 2x 2.5" HDD/SSD [SATA]
- Power: 8-48V DC [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 70°C [-13°F to 158°F]
- IP Rating: IP66
- Certification: CE, FCC
- Mounting Options: Wall Mount
- Ethernet: 3x 2.5 GbE LAN [M12] [PoE], 1x GbE LAN [M12] [PoE]
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 1x DDR5 5600MHz SO-DIMM Slot, 48GB
- OS: Linux, Windows 11
- Display Outputs: 4x Display Ports
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 6x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [Board], 3x RS232/422/485 [DB9]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 B-Key [PCIe x2/SATA] [2242/3042/3052], 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 2x 2.5" HDD/SSD, 2x M.2 SSD
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- RAID: RAID 0, RAID 1, RAID 5
- Power: 9-48V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CAN/CSA C22.2, CE, EN50121-1, EN50121-3-2, FCC, IC (ICES-003), REACH, RoHS, UKCA, UL 61010-1, UL 61010-2-201
- Mounting Options: Wall Mount
Edge Computing with a Fanless Industrial Mini PC
Learn more about our fanless industrial mini computers and how these systems meet the demands of edge computing. We take a look at advanced thermal management techniques necessary to achieve high-performance computing in such a small form factor without sacrificing reliability.
// Next Step
Tell us what you're building.
Send us the application, the deployment environment, and the lifecycle expectation. We'll come back with a platform recommendation, a BOM, and a service stack matched to it.
Phone · USA
+1 407 214 9446
